JVS-N96-X3

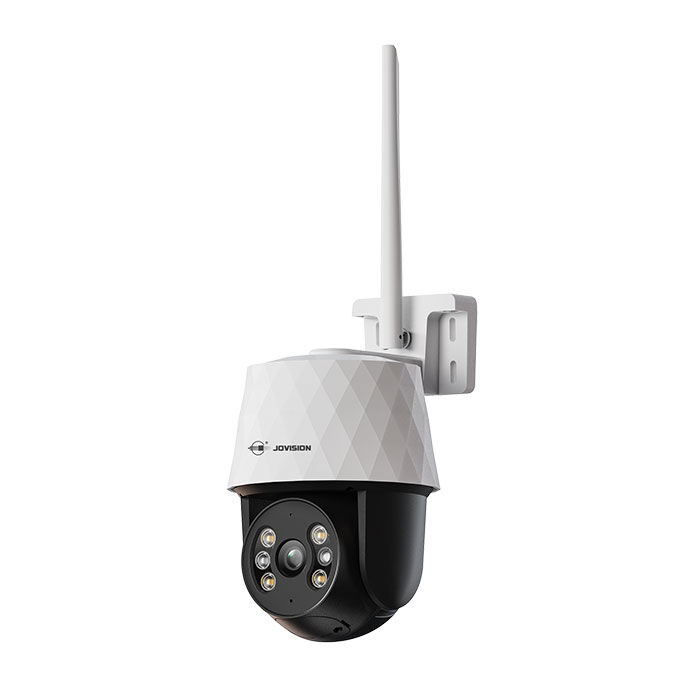

3MP Wi-Fi Full-Color Pan/Tilt IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2304x1296.

• Light& Sound Alarm

• Human Detection and Tracking

• Two-Way Talk (Built-in Audio Input and Output)

• Support Micro SD Card Storage, Maximum Support 256G

• 2 Infrared Light + 4 Warm Light

• Support Region Intrusion, Line Crossing, Video Tampering.

• Ingress Protection: IP66

Specifications
ModelJVS-N96-X3
Camera
Image Sensor1/2.9” CMOS Sensor
Max Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.265/H.264
Framerate25fps
SNR (dB)52dB
Bitrate128Kbps~1024bps
Lens
Lens4mm
Viewing AngleH: 78.6°, V: 42°, D: 92.4°
White Light4x Bright White Light
IR Light2x IR LEDs
IR DistanceUp to 30m.
Function
Privacy MaskingSupports 8 Zone masking
Exposure ModeAuto
Automatic Gain ControlAuto
White BalanceAuto
Motion DetectionSupport
Day-Night VisionIR-CUT, Supports Color/B&W Switch
Smart Functions

Humanoid Detection Alarm, Humanoid Tracking, Humanoid Snapshot,

 Sound & Light Alarm, Custom Alarm Voice

Remote Control

System Management, Audio/Video Management, Image Management,

 Storage Management, Alarm Management, Network Management.

Detection AlarmE-mail Alarm, Client-end Alarm, Smartphone Message Alarm
Two-way TalkSupport
Pan/TiltSupport, Not Support Zoom
Interface
Audio Input1 Channel Internal MIC
Audio Output1 Channel Internal Speaker
Ethernet PortYes
SD CardSupport Max. 256GB
Reset switchSupport
Network
Ethernet10M/100M Ethernet, RJ45 Port
Wi-FiWi-Fi (IEEE802.11b/g/n), 2.4Ghz
StreamDual stream
ProtocolsTCP/IP, ICMP, UDP, SMTP, DHCP, DNS, PPPoE
Network Transmission           CloudSEE P2P Transmission Protocol
Config MethodAP Configuration
General
Power SupplyDC12V / 2A
Consumption5W
Working Temperature-20°C~60°C
Working Humidity 10%~90%Rh
Color / MaterialWhite /Plastic
Dimensions154.5x124x207mm
InstallationWall Mounting, Lifting and Pole Mounting
