Fusion Cloud Platform Empowers the Smart Upgrade of Industrial Park Vehicle Supervision

The existing industrial park project previously deployed 300 standard cameras and 5 video recorders from various brands. Due to a smart upgrade of the park, an additional 60 cameras are required for daily monitoring and vehicle management. Once completed, the industrial park will host hundreds of devices and multiple recorder brands.

However, because these devices are scattered across different locations and incompatible with one another, it creates "data silos." How can the park achieve lightweight, centralized management while meeting the demands for smart vehicle supervision?

Multi-Protocol Integration: Leveraging Existing Assets to Reduce Costs

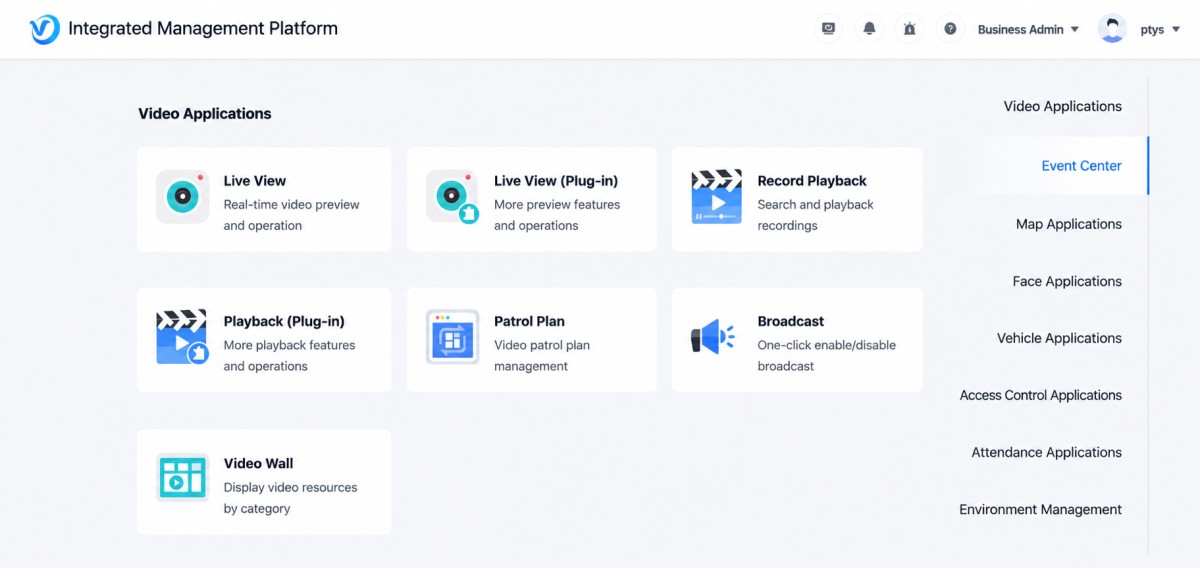

Jovision utilizes the Fusion Cloud Platform to upgrade and retrofit the park's existing surveillance system, centralizing hundreds of devices into a single control platform for unified management.

The Fusion Cloud Management Server not only supports Jovision's proprietary protocol but is also fully compatible with mainstream and universal protocols—including Hikvision EHome, Dahua proprietary protocols, and the GB/T 28181 national standard. This significantly reduces corporate construction costs while meeting the park's needs for centralized, 24/7, all-around video surveillance.

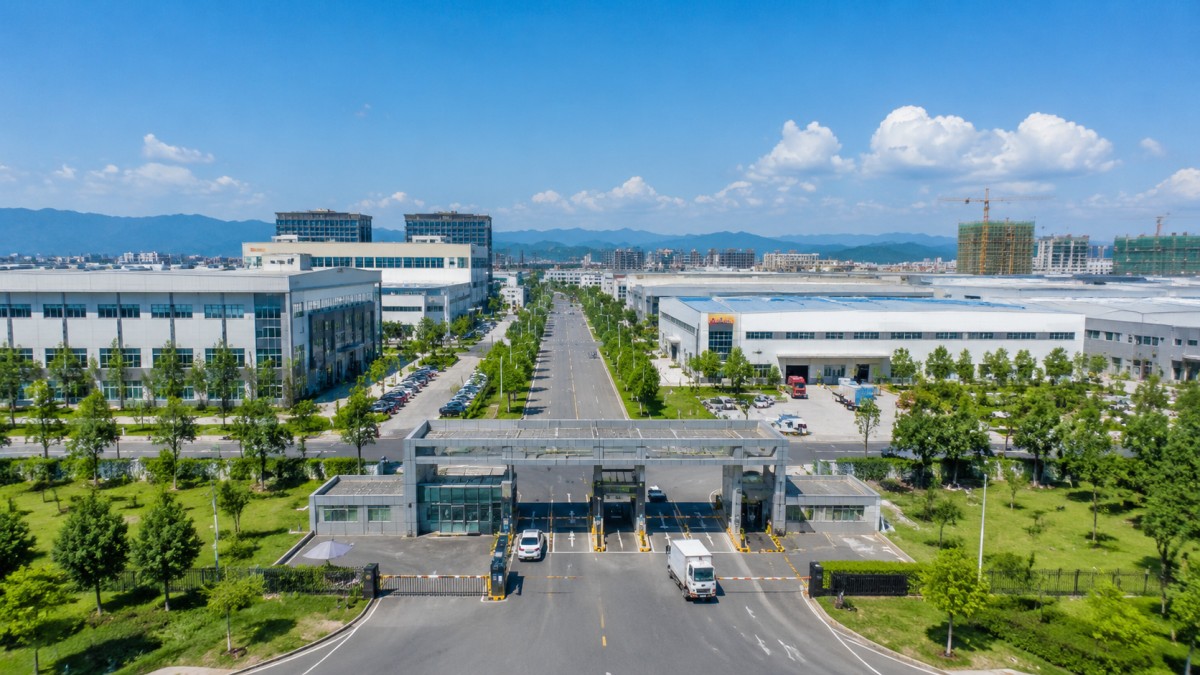

Vehicle Entrance/Exit Video Supervision & Visualized Vehicle Information Management

An additional 20 cameras have been deployed at critical nodes, including park entrances and exits. This includes 8 units of 4MP license plate recognition (LPR) cameras. Powered by built-in LPR algorithms, these cameras precisely capture and recognize vehicle information, ensuring clear plate visibility even at night.

Simultaneously, the Fusion Cloud Platform enables visualized vehicle information management:

• Blacklist & Whitelist Configuration: Customize vehicle lists based on park requirements to bolster security management.

• Real-Time Alerts: Instantly push alarm notifications to the central control platform to effectively prevent unauthorized vehicle entry.

• Owner Linking: Link specific vehicles to their respective owners, making tracking and investigation more convenient and reliable if an unexpected incident occurs.

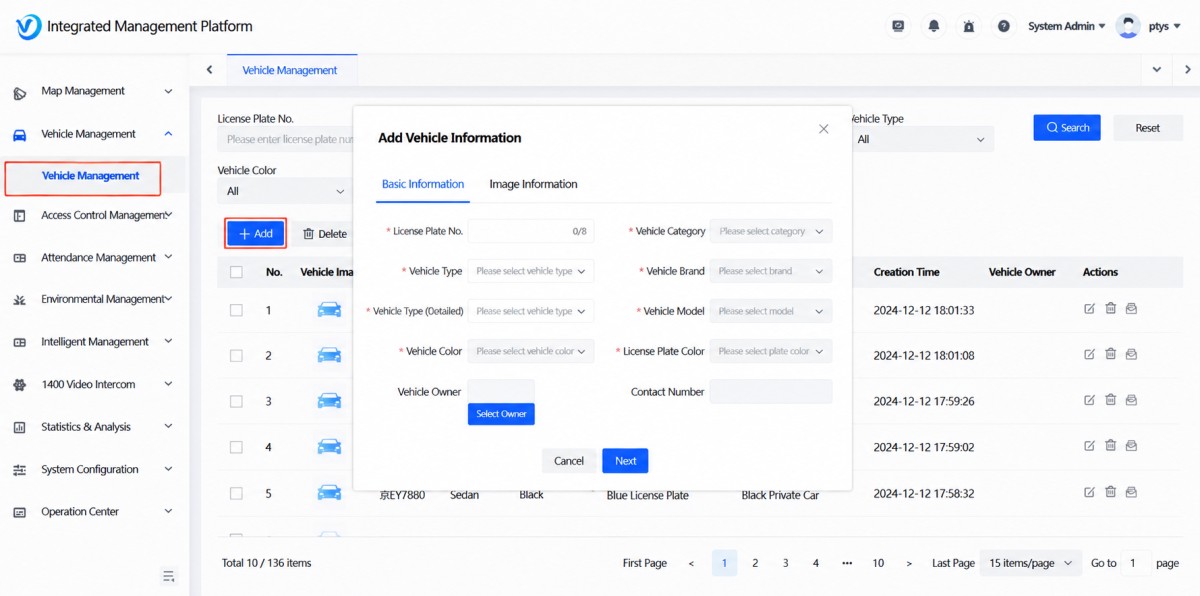

• Setting up Vehicle Blacklists and Whitelists

• Linking Vehicle Information to Owners

Critical Node Deployment in Office Areas for 24/7 Real-Time Supervision

In the office areas, 40 units of 6MP dual-light audio dome cameras have been newly deployed. Featuring AI ISP technology, they deliver superior night vision performance.

These cameras support multiple AI algorithms—including human detection, regional intrusion detection, and tripwire detection—and push real-time alarm notifications to the central control platform. This fulfills the park's 24-hour surveillance requirements, effectively safeguarding the lives and property of personnel within the park.

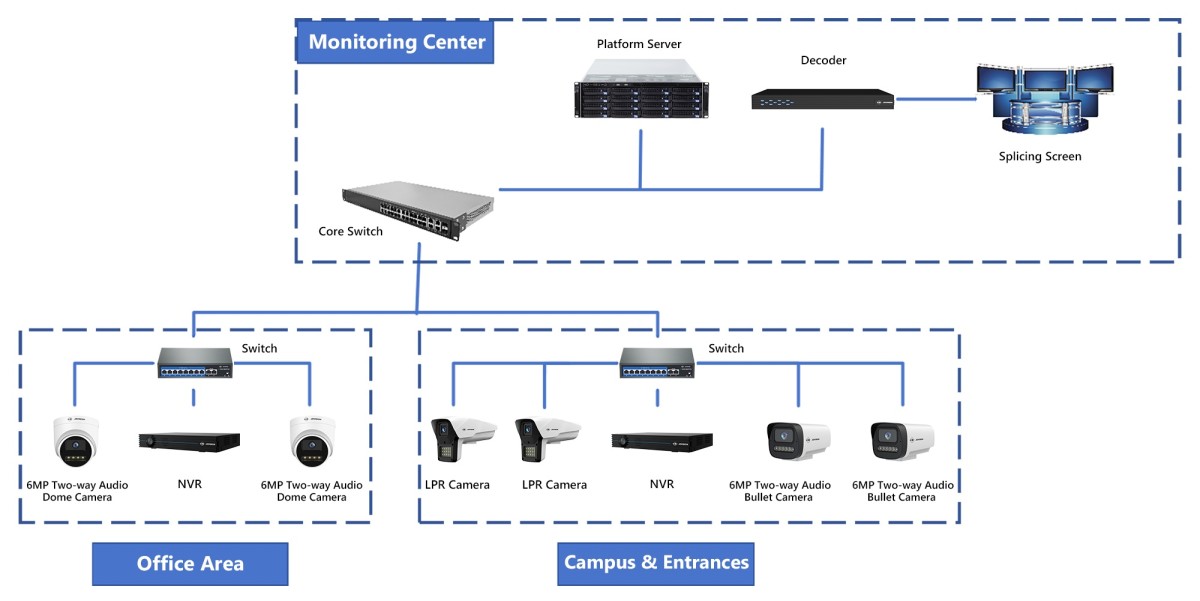

Solution Topology Diagram
