JVS-HD301C

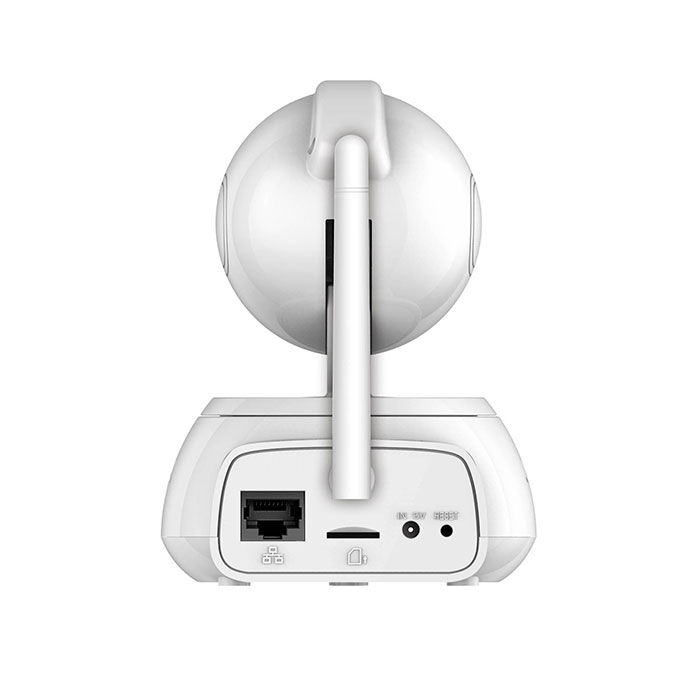

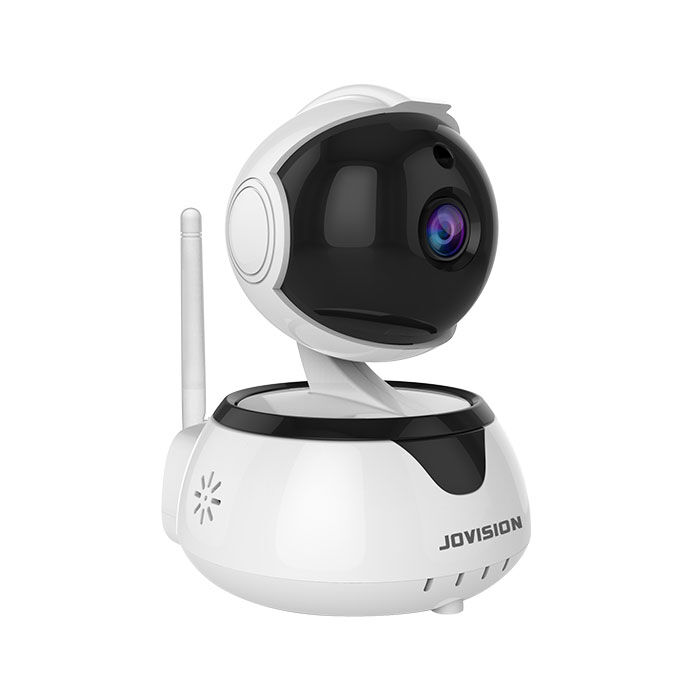

2MP Wi-Fi Pan/Tilt IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 1920x1080.

• Wi-Fi or Wired Connection

• Support Two-way Talk

• Support iOS & Android APP

• Pan and Tilt

• Support Humanoid Detection and Alarm

• Support 128GB SD Card

Specifications

ModelJVS-HD301C
Camera
Image Sensor1/3” CMOS Sensor
Max Resolution1920x1080
Effective Pixels2.0MP
Compression StandardH.264
Framerate20fps
Bitrate128Kbps~1024bps
Lens
Lens4mm
Viewing AngleH 60°, V 53°, D 89°
IR Light10x IR LEDs
IR DistanceUp to 15m.
Function
Privacy MaskingSupports 4 Zone masking
Exposure ModeAuto
Automatic Gain ControlAuto
White BalanceAuto
Motion DetectionSupport
Day-Night VisionIR-CUT, Supports Color/B&W Switch
Remote Control

System Management, Audio/Video Management, Image Management,

 Storage Management, Alarm Management, Network Management.

Detection AlarmE-mail Alarm, Client-end Alarm, Smartphone Message Alarm
Two-way TalkSupport
Pan/TiltPan 350°, Tilt 117°
Interface
Audio Input1 Channel Internal MIC
Audio Output1 Channel Internal Speaker
Ethernet PortYes
SD CardSupport Max. 128GB
Reset switchSupport
Audio Input
Ethernet10M/100M Ethernet, RJ45 Port
Wi-FiWi-Fi (IEEE802.11b/g/n), 2.4Ghz
StreamDual stream
ProtocolsTCP/IP, ICMP, UDP, SMTP, DHCP, DNS, PPPoE
Network Transmission             CloudSEE P2P Transmission Protocol
General
Power SupplyDC5V / 1.5A
Consumption5W
Working Temperature-10°C~55°C
Working Humidity10%~90%Rh
Color / MaterialWhite + Black/ ABS + PC
Dimensions91x88x122.5mm
InstallationWall, Ceiling, Desktop

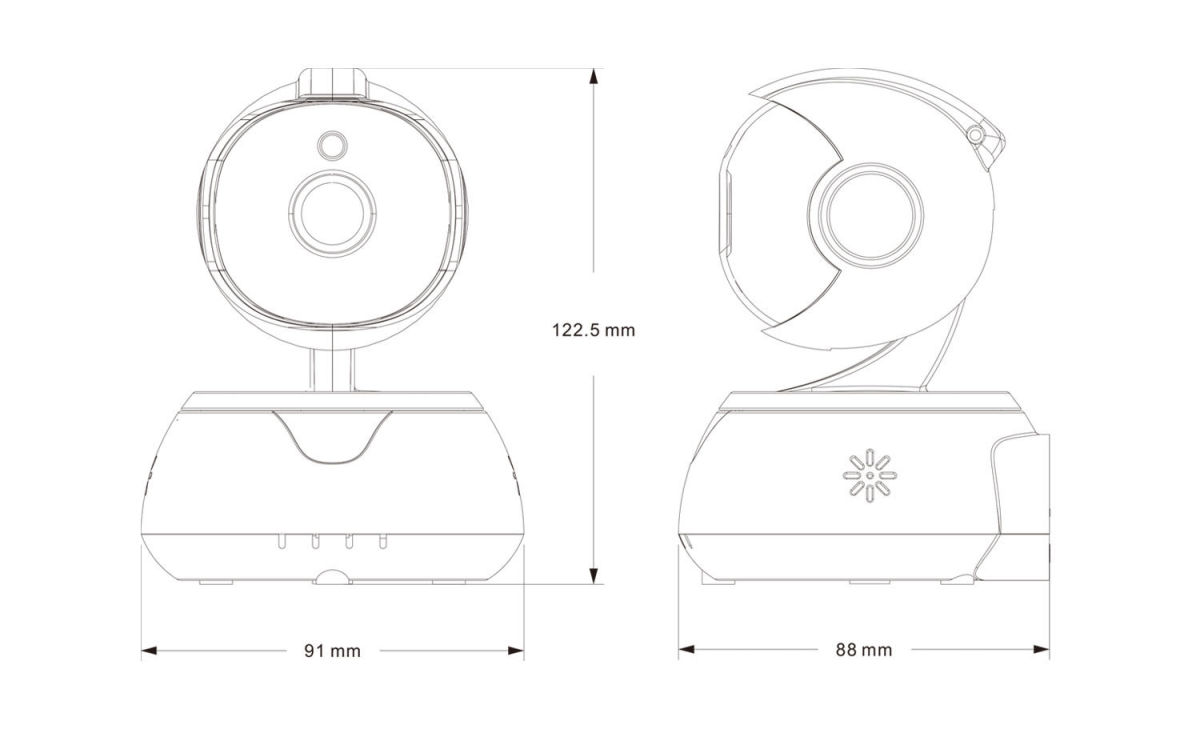

Dimension
