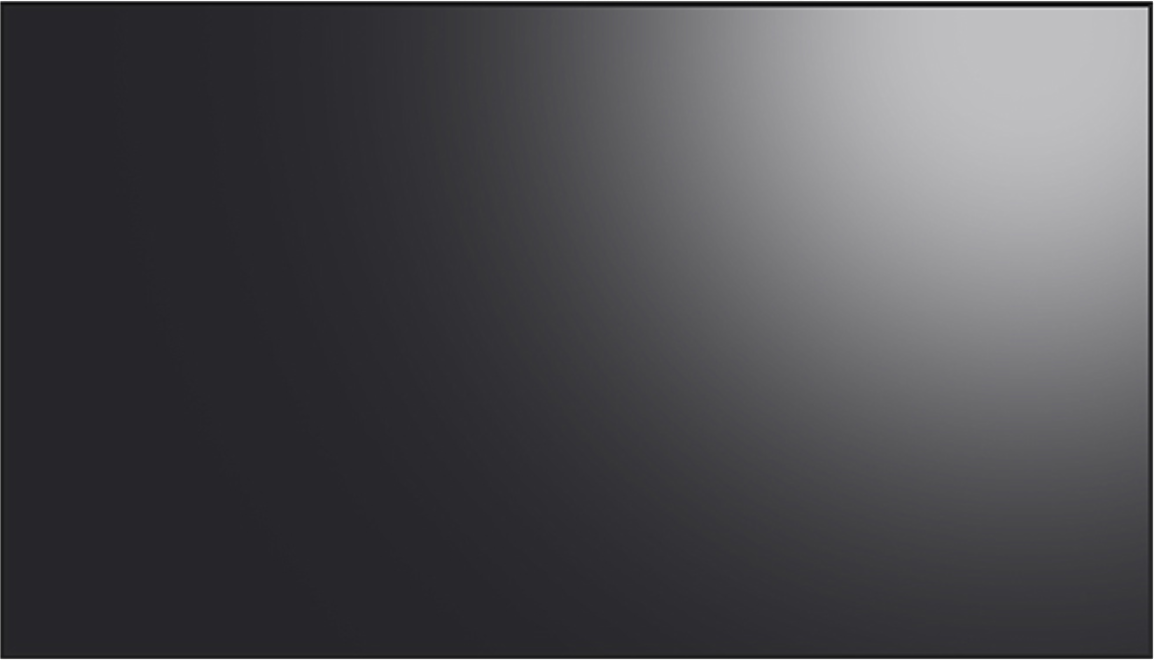

JVS-LCD49-35U
Message
Features
Specification
Accessories
Download

Key Features

· Narrow Frame: The 3.5 mm ultra-narrow frame design delivers a more detailed and immersive display experience.

· High Contrast Ratio: With an ultra-high contrast ratio of 1200:1, colors appear brighter, and the image has richer layers.

· Full HD Resolution: The unit offers an ultra-high physical resolution of 1920x1080, ensuring clearer and more refined picture quality.

· TFT Technology: Leveraging a-Si TFT technology, the display provides excellent stability, a wide viewing angle, fast response speed, and high color reproduction.

· Anti-Glare Material: The use of Anti-glare material reduces screen reflection, resulting in more realistic images and enhanced visual effects.

· LED Backlight: The direct-type LED backlight ensures more uniform display brightness without the border shadow phenomenon.

· Image Enhancement: Automatic color and image enhancement engine technology improves image details, making the picture more vivid and beautiful.

· Durable Build: The unit is constructed from metal, providing protection against radiation, magnetic fields, and strong electrical interference.

· Industrial-Grade Stability: Designed for industrial use, the unit supports high-strength, stable operation for 24/7 use.

· Flexible Installation: The unit supports various splicing and installation methods, making it suitable for diverse applications.


Specification

Panel Properties
Size49inch
Patchwork3.5mm
Backlight TypeD-LED
Resolution1920x1080
Display Size1074.1(H) x 604.3(V) (mm)
Pixel Pitch0.630(H) x 0.630(V) (mm)
Response Time6.5ms (Typ.)
BrightnessType: 500cd/m²
Min: 400cd/m²
Contrast1200:1(Typ.)
Viewing Angle178° (Vertical, Horizontal)
Color16.7M(10 bits)
Color Saturation72% (NTSC)
Zoom16:9
Refresh Rate60Hz
Surface TreatmentAnti-Glare, Haze 3%
Power Properties
Input VoltageAC100V ~ 240V, 50/60Hz
Power ConsumptionWorking State: ≤ 200W; Standby State: ≤ 2W
Functional Properties

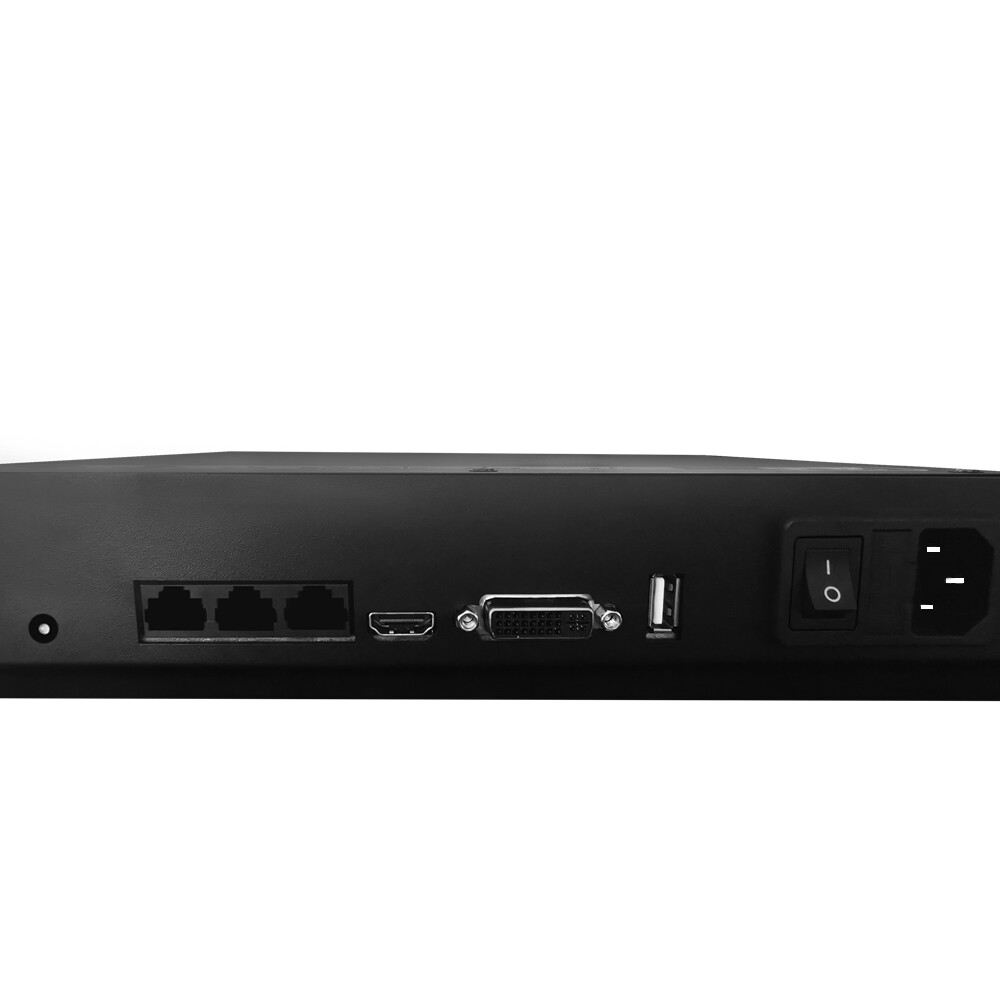

Input InterfaceUSB x1, HDMI x1, DVI x1, RS232-In x1
Output InterfaceRS232-Out x2
Operation MethodRemote Control, RS232 Control
Working Environment
Operating Temperature0°C ~ 60°C
Storage Temperature-10°C ~ 60°C
Operating Humidity20% ~ 85% Rh Non-Condensing
Storage Humidity10%~90% Rh Non-Condensing
Language
OSDEnglish/Chinese
Structure

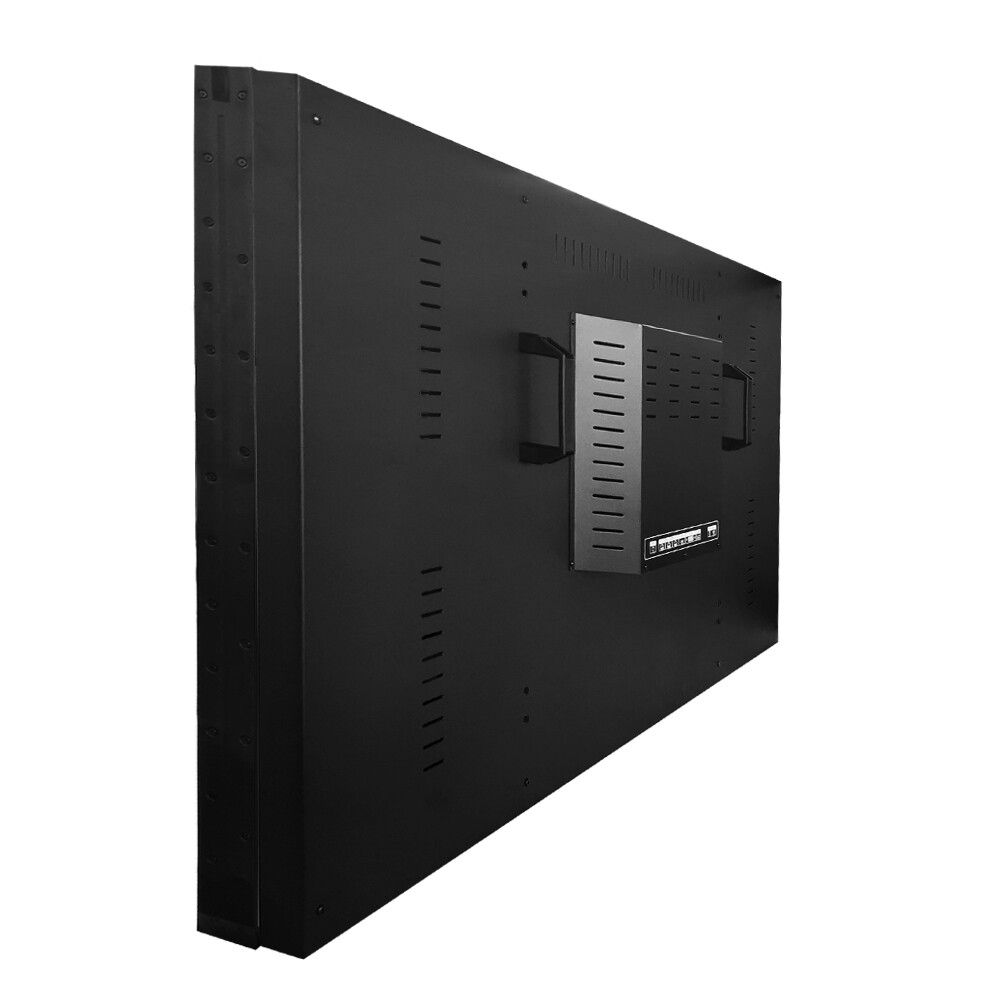

Overall Size1077.58mm x 607.8mm x 63.7mm (Without Backpack)
Package Size1145mm x 315mm x 680mm (Double Pack Reference)
Total WeightApprox. 22 kg (Excluding Accessories)
Housing MaterialStrong Metal Structure
InstallationFloor Standing/Wall Mounted/Ceiling Mounted
Other
AppendixAC Power Cord, Network Cable, Hook, Remote-Control, Remote-Control Receiver, Certificate, Warranty Card, Instruction Manual
