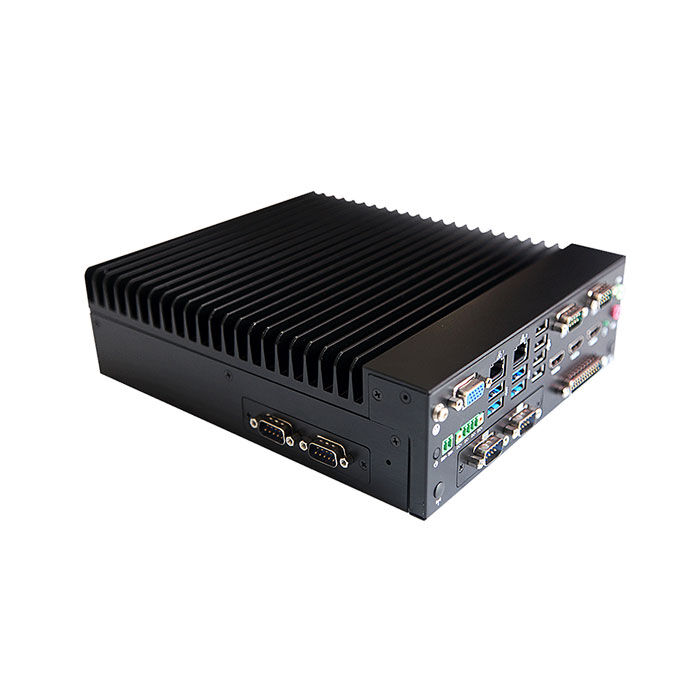

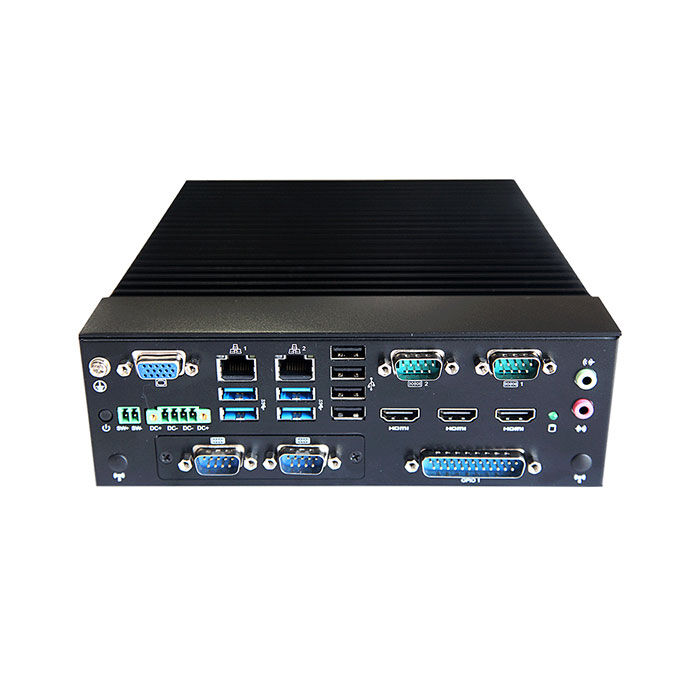

JVS-B700-F
Intel® Core™ i5 AI Box
Message
Features
Specification
Accessories
Download

Key Features

• The whole device is sealed and fan-less design, integrating AI calculation and industrial control characteristics.

• Graphene heat dissipation system to achieve higher heat dissipation efficiency

• The new 11th Gen Intel® Core™ Tiger Lake embedded CPU provides AI computing ability to meet the requirements of AI edge computing application scenarios

• 2x gigabit network ports and 6x serial ports (protected by isolation, lightning surge, and ESD) to ensure the reliable and stable operation of the system in complex environments

• The device has low power consumption, excellent performance, strong environmental adaptability, widely used in machine vision, highway, lane control, mechanical testing equipment, intelligent  transportation, intelligent factory, intelligent power control, CNC equipment manufacturing; It can also be applied to VR, video surveillance, AI and deep learning.

Specifications
ModelAI Box
System
CPU11th Gen Intel® Core™ Tiger Lake IoT Processor

I3-1115G4 3.0GHz-4.1GHz 2Core 28W

I5-1135G7 2.4GHz-4.2GHz 4Core 28W

I7-1165G7 2.8GHz-4.7GHz 4Core 28W

MemoryOnboard SDRAM LPDDR4 8 ~ 24GB
Storage

1x 2.5-inch shock-absorption hard disk installation position,

 Standard configuration 2x M.2 2280 NVMe port, 1x mSATA port

Extension

1x Mini-PCIe expansion slot (with 1x SIM card slot),

 2x M.2 Standard configuration (optional 2x Mini-PCIe, Co-Lay)

System supportWindows 10 64bit, Ubuntu, Red Hat
Display3x HDMI + VGA (Internal reserved eDP port, either VGA or eDP)
WirelessWi-Fi
Network port2x 10/100/1000Mbps RJ45 Ethernet Ports
General
Power SupplyThe adapter supports 9V to 36V DC wide input voltage
Working Temperature             -10°C ~ 60°C
Working Humidity5% ~ 90% (Rh Non-Condensing)

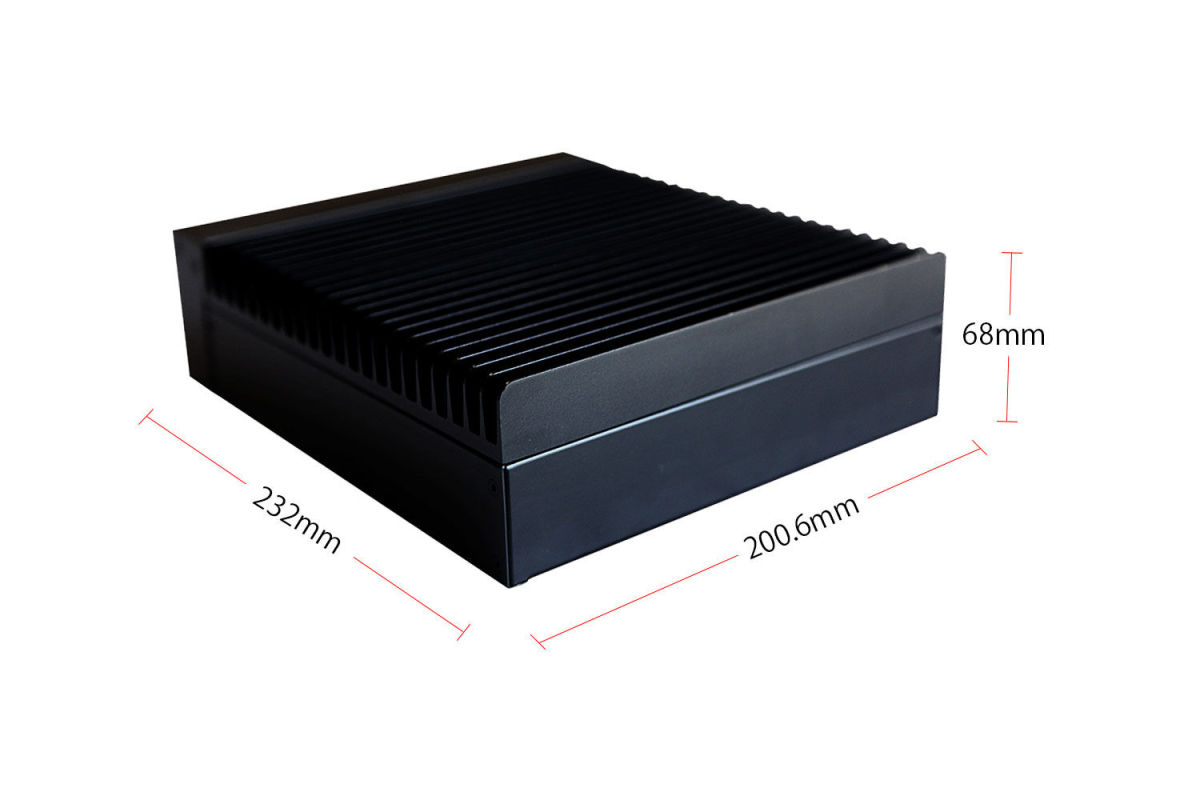

Dimensions200.6 x 232 x 68mm (Without Expansion)228.2 x 232 x 73mm (With wall hanging bar)


Dimension(mm)
