JVS-D6016-4HD

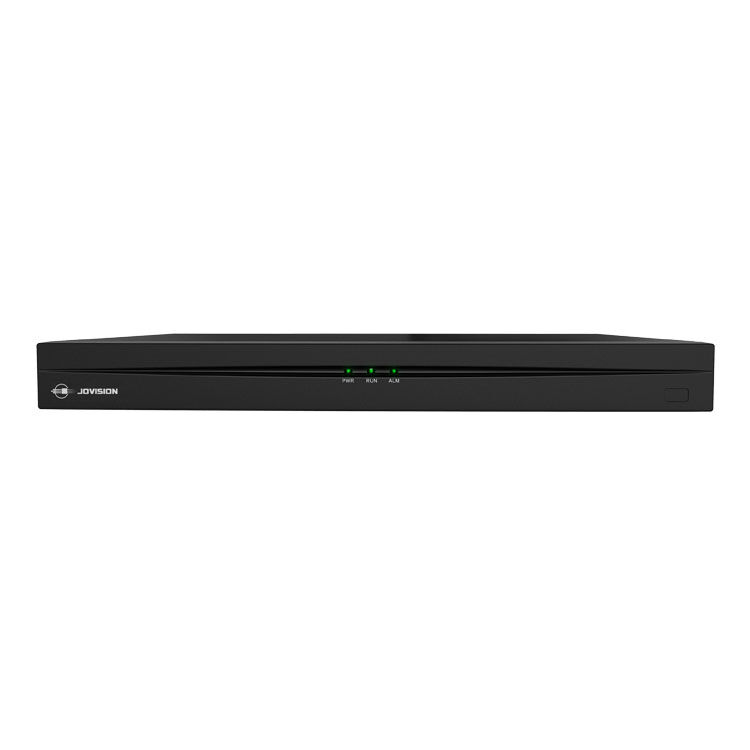

4CH Decoder
Message
Features
Specification
Accessories
Download

Key Features

• 4x HDMI Output (Decode 4 Screens Video Wall, Multiple Screens Can Be Spliced).

• 8CH of 5.0MP, 12CH of 4.0MP, 16CH 1080P Decoding Capability.

• Each Output Supports 1/4/8/9/16 Split Screen.

• Support Multi-screen TV-wall, Screen Merging and Sequencing

Specifications
ModelJVS-D6016-4HD
Hardware
Decoding Ability8CH 5.0MP@30fps,12CH 4.0MP@30fps, 16CH 1080P@30fps

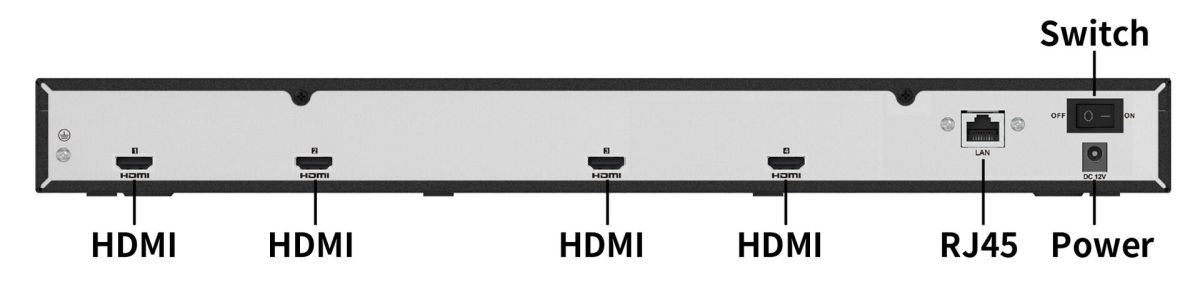

Video Output4x HDMI. Support 4K Output
Ethernet1x RJ-45,10/100/1000Mbps Adaptive
Features
TV Wall Configuration and ManagementSupport remote configuration and management of the video wall through the client.Screen position detection, display output number;Support search decoder.
Live Video WallSupport
Video Wall PlaybackSupport
Video Wall SequenceSupport set the sequence according to the plan
PTZ ControlSupport
Window SplicingSupport. Maximum support 4 or more screens arbitrary splicing. After splicing, it supports split screen. Number of split screen is as follows: 1/4/6/8/9/16
Window RoamingSupport.. Support up to one window
Window ZoomWindow Zoom
Video CompressionH.265/H.264/ MPEG4/MJPEG
Audio CompressionG.711
Screen Split1/4/8/9/16
Hybrid DecodingSupport
RTSP StreamingSupport RTSP Streaming From Remote Device.
LanguageSupport English/Chinese
Virtual BannerSupport. Font Size, Color, Background Can Be Set
Output ResolutionMaximum Support 4K Output
ConfigurationNetwork Configuration (Modify IP), Local Upgrade, Factory Restoration
Device ManagementSupport Device Search (Protocol Support 1.0, 2.0 ONVIF), Add, Delete, Group
Software ProjectionSupport
Hardware ProjectionSupport
Scene ManagementSupport. Save the Scene For Easy Use
Set BackgroundSupport.
Access ProtocolCloudSEE Private Protocol/ ONVIF Protocol, Support ONVIF IPC/NVR Access
General
Power SupplyDC 12V
Consumption≤18 W
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions445x45x325(mm)
Weight≤3.13Kg
