Key Features
• 6th Gen Uncooled focal Plane Array VOx Detector
• 33x Zoom
• 20mm Thermal Lens
• 2.4Km Distance Detection
• Support 360° Pan and Tilt
• Support Intelligent Functions
• Anti-salt Spraying Support
Specifications
Model | JVS-DL64-Z33 |
Thermal Imaging | |
Detector | 6th Gen Uncooled focal Plane Array VOx Detector |
Detector Array | 640 x 512 |
Field of View | 21.7°x17.5° |
Wavelength | 8 ~ 14μm |
NETD | 40mK (@25°C F1.0) |
Lens | 20mm Thermal Lens |
Detection Distance | 2400m to the car, 1020m to the person.The detection distance fire source can reach 1420m (@2X2m) |
Recognition Distance | 710m to the car, 280m to the person |
Image Enhancement: | SDE digital image enhancement technology, improve the details of the image, Support 255-level thermal image enhancement adjustment |
Pseudo-color Polarity | 16 Pseudo-color images, Hot black/ Hot white two polarities |
Image Parameters | AGC automatic gain control, brightness, contrast adjustment |
Digital Zoom | 1.0~8.0x continuous zoom (Step size 0.1), support optical electronic relay zoom ,support global eagle eye diagram |
Ranging Ruler | Support |
Dead Pixel Correction | Support |
Image Correction | Support manual correction, background correction, automatic correction time interval ,adjustable Gamma correction parameters |
Bright Light Protection: | Supports sun damage |
Non-uniformity Correction | Auto/Manual |
Visible Imaging | |
Sensor Type | Back-illuminated ultra-low illumination starlight CMOS |
Minimum Illumination | Color: 0.0005Lux;Black & White: 0.0001Lux; 0Lux (IRON) |
Lens | 5.5 ~ 180mm 33x optical zoom, 16x digital zoom |
Image Processing | Supports White balance, Electronic shutter, Frame accumulation, BLC, HLC, 2D/3D DNR, Electronic image stabilization, WDR, Heat wave drift suppression |
Day and Night | 0.4 ~ 0.75μm visible light wide spectral window and 0.8 ~ 0.95μm near-infrared spectral window .Day and night independent double clear light window, improve the signal-to-noise ratio of imaging light and stray light |
Defog | Support digital defog |
Laser Light Source | |
Laser Type | New infrared high-definition flood homogenization light source, no speckle particles |
Irradiation Distance | 300 meters |
Illumination Angle | 3° ~ 65° follow-up switch |
Audio & Video | |
Thermal Image Resolution | 1920x1080; 1280x1024; 1280x960; 1024x768; 1280x720; 704x576; 640x512; 640x480; 400x300; 384x288; 352x240 |
Visible Light Resolution | 2592x1520; 2560x1440; 1920x1080; 1280x1024; 1280x960; 1024x768; 1280x720 704x576; 640x512; 640x480; 352x288; 352x240Support optional 2592×1520; 2560×1440 |
Video Encoding | H.265/H.264/MJPEG, Support multi-stream |
Video Bitrate | 32Kbps ~ 16Mbps |
Audio Codec | G.711A / G.711U/ G726 |
Image Flip | Left/ Right/ Up/ Down/ Diagonal |
OSD Settings | Support OSD display settings of channel name, time, PTZ orientation, field of view angle, focal length, and support preset name setting. |
Temperature Measurement | |
Measurement Range | -20°C ~ 120°, -20°C ~ + 550° |
Measurement Error | ±2°C (±2% of Range Optional) |
Measurement Method | Full screen temperature information return, point, line, surface, irregular area, 16 simultaneous detections |
Accuracy Correction | Support temperature measurement parameter correction settings, including temperature correction, emissivity, atmospheric transmittance, humidity |
Over Temperature Alarm | Sound and light alarm when alarming, reserved switch alarm output, manual/automatic linkage of fire extinguishing system and broadcasting system |
Alarm Log | Record the temperature data of each object in real time, automatically generate change trend curve, automatically store temperature data, image snapshot and video when an alarm is triggered, create and record related logs, real-time video storage and playback (with KV1000 software, support optional) |
Smart Function | |
Fire Detection Alarm | Threshold 255, target size, target number 1-16 can be set, automatically select the most prominent target display, hot spot tracking |
Intelligent Analysis | Support Intrusion detection, Cross-border detection, Entry/exit area detection, Motion detection, Loitering detection, People gathering, Fast movement, Target tracking, Item leftover, Item retrieval.Human/Vehicle target detection, Face detection and supports 16 regional settings. Supports intrusion detection, human and vehicle screening and filtering functions. Supports target temperature screening and filtering functions |
Automatic Tracking | Support single scene tracking / Multi scene tracking / Panorama tracking / Alarm linkage tracking |
Intelligent Information Fusion | Support 512 AR intelligent information fusion, Support fire point, Intelligent analysis video identification information function, Support azimuth angle, Field angle, Focal length, Multiple information fusion |
Image Fusion | Support 18 dual-light fusion modes, Support picture-in-picture function |
ROI | Support, up to 8 ROI regions can be set, and the image quality can be adjusted |
Privacy Masking | Mosaic privacy masking and solid color privacy masking are supported, 16 preset positions plus 1 default scene can be set, and up to 8 masking areas can be set under each preset position |
Alarm Management | Support alarm snapshot upload |
Enhancements | |
Ranging | Support passive ranging; support optional laser ranging |
Storage | Support optional SD Card |
Sound & Light Alarm | The device integrates tweeter + strobe light, supports custom alarm sound. |
Camera Diagnostic | Support network disconnection alarm, support IP conflict alarm, support illegal access alarm (the number of illegal accesses, lock time can be set), support SD card abnormal alarm (insufficient SD space, SD card error, no SD card), video blocking Alarm, anti-sun damage (support threshold, blocking time can be set) |
Full Life Management | Health index recording function, supports working time, shutter times, working temperature, extreme temperature, etc.; The cumulative time of the zoom lens and the various motors of the mount, etc. |
Disconnection Resume | Support |
Power-off Memory | Support to restore the position before power-off, preset position status, cruise status, line scan status |
Remote Maintenance | With fault query, self-check, remote restart functions; online upgrade, remote upgrade |
Key Frame Settings | Support key frame interval 100-level adjustable |
Configuration File | Support configuration file import and export functions |
Other Alarm | Support alarm linkage firefighting device |
Web Access | Support WEB full-featured configuration, remote online upgrade |
PTZ | |
Range | Pan 0°~360°, Tilt -90° ~ +90° |
Rotational Speed | Horizontal 0.01°/Sec ~ 100°/Sec, Vertical 0.01°/S ~ 80°/Sec, Support lens focal length speed adaptive function |
Structural Material | Quasi-spherical design of micro-turntable, integrated 5-window multi-channel, precision casting high-strength aluminum alloy material |
Window Glass | High-efficiency anti-reflection optical glass for infrared/ visible light, clean film coating |
Surface Spraying | PTA three-proof coating, anti-corrosion |
Wipers | Support intelligent automatic wipers |
Defrost | Visible light window defrosts |
Preset Cruise | 3000 presets, support 16 cruise routes, each can support 256 presets |
Watch | Preset position/pattern scan/cruise scan/vertical scan/frame scan/panorama scan /apple peel scan/horizontal fan scan line scan |
Zoom | Support 3D frame selection zoom |
Memory | Support (Can restore the position before power-off, preset position status, cruise status, line scan status) |
Orientation | Support angle query/real-time return, positioning; support lens field of view return and positioning |
Zero-point Correction | Support the north zero-point remote correction function |
Security Control | |
Illegal Access Alarm | Support illegal access times and lock time can be set |
3 Level User Rights | Support three-level user rights management, administrator, operator, common user |
Security mode | Authorized username and password, support IP whitelist and blacklist, MAC whitelist and blacklist |
Network | |
Interface | 1x RJ 45, 10/100 Base-T adaptive |
Protocols | HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP, ONVIF, GB28181 |
Development | Easy to use SDK available |
Optical Network | Optional built-in optical fiber module, Single-mode optical fiber output, Improve anti-interference |
General | |
Power Supply | DC9~36V, External AC220V or battery power adapter |
Power Consumption | Rated power consumption: ≤40W; Peak power consumption: ≤60W |
Working Temperature | -40°C ~ +60°C |
Humidity | <95%Rh |
Lightning Protection | Anti-surge 6KV, anti-static 8KV contact/15KV air |
Anti-salt Spray | PH value of 6.5 to 7.2, continuous spraying for 96 hours |
Ingress Protection | IP67 |
Size (LxWxH) | 312mm×200mm×296mm |
Weight | ≤10Kg |
Installation | front mount / side mount / wall mount / hoisting / vehicle / tripod |
* The operating distance and temperature measurement accuracy are related to factors such as atmospheric transmittance, environmental background complexity, target emissivity, environmental temperature and humidity, and temperature calibration. Please contact us according to the actual situation.
Dimensions

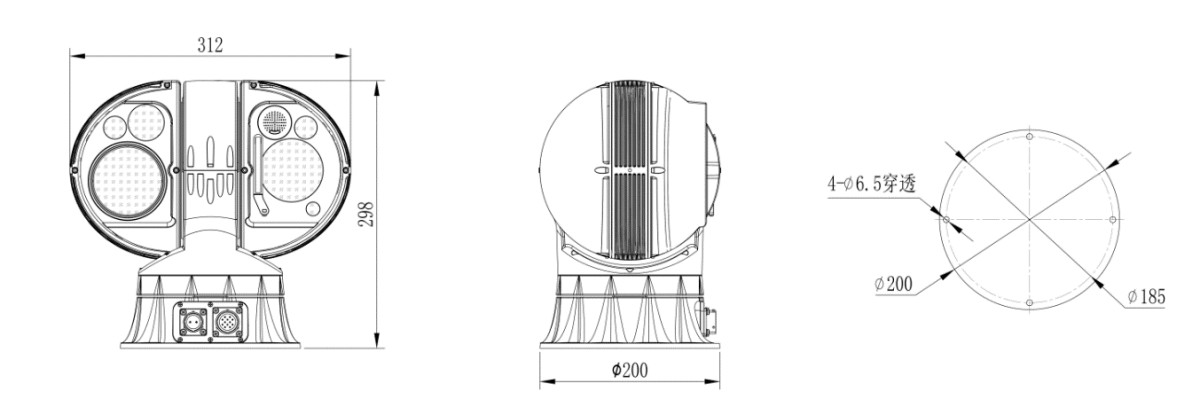

Formal and Side Mounted

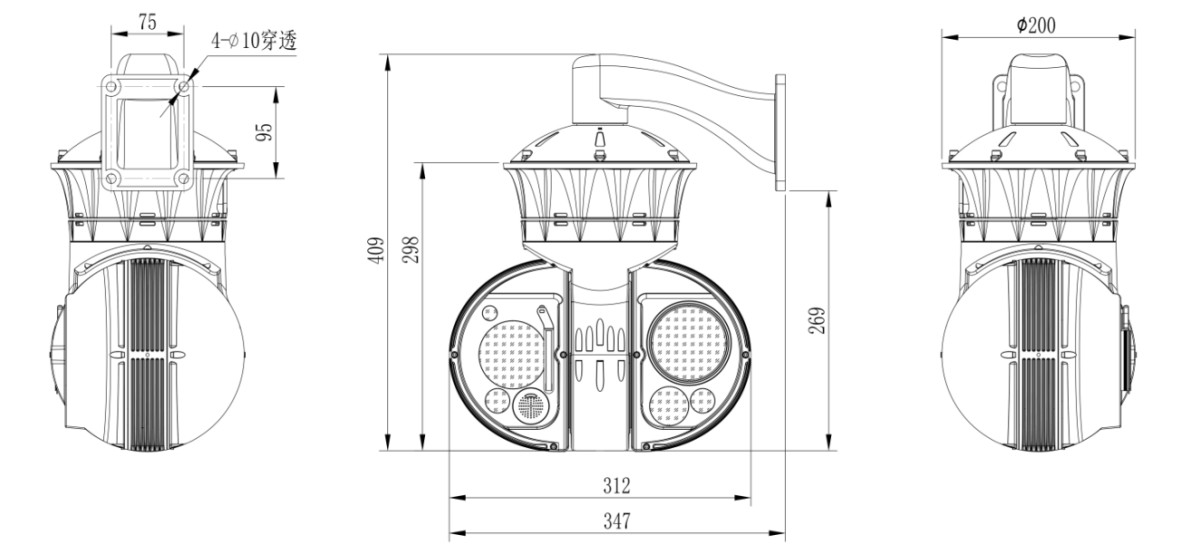

Hoisting
