JVS-ND7004-PD01
4CH POE H.265 NVR
Message
Features
Specification
Accessories
Download

Key Features

• Adopt the new VStar GUI, easy to operate and run smoothly

• Support intelligent coding VSmart, greatly reducing storage space

• Improved compatibility for HDD. Support max. of 10TB

• Support Intelligent Detection and Human Detection

• Support 4PoE + 4 Non-PoE access (Total of 8 Cameras)

Specifications
ModelJVS-ND7004-PD01
Video & Audio
IP Camera Input4CH PoE + 4CH Non-PoE
Audio Input/ Output1 Channel 3.5mm Jack Output,8 Channel Audio output through HDMI
Display
Interface1 HDMI, 1 VGA
Resolution

HDMI: 3840x2160, 1920x1080, 2560x1440, 1440x900, 1280x1024, 1280x720,

1024x768

VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
Max Decoding8CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps
Multi-screen DisplayPort Binding 1/ 4Non-port Binding 1/ 4/ 5/ 6/ 7/ 8/ 9
OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

Volume, Channel Number

Recording
CompressionH.265/H.264
Resolution8CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Record ModeManual, Schedule, Motion Detection
Video Detection & Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Playback & Backup
Sync Playback2CH 5.0MP/ 3CH 4.0MP/ 4CH 3.0MP
Search ModeTime /Date, Schedule, Motion Detection
Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

 Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup ModeFAT32 USB Device/ Network

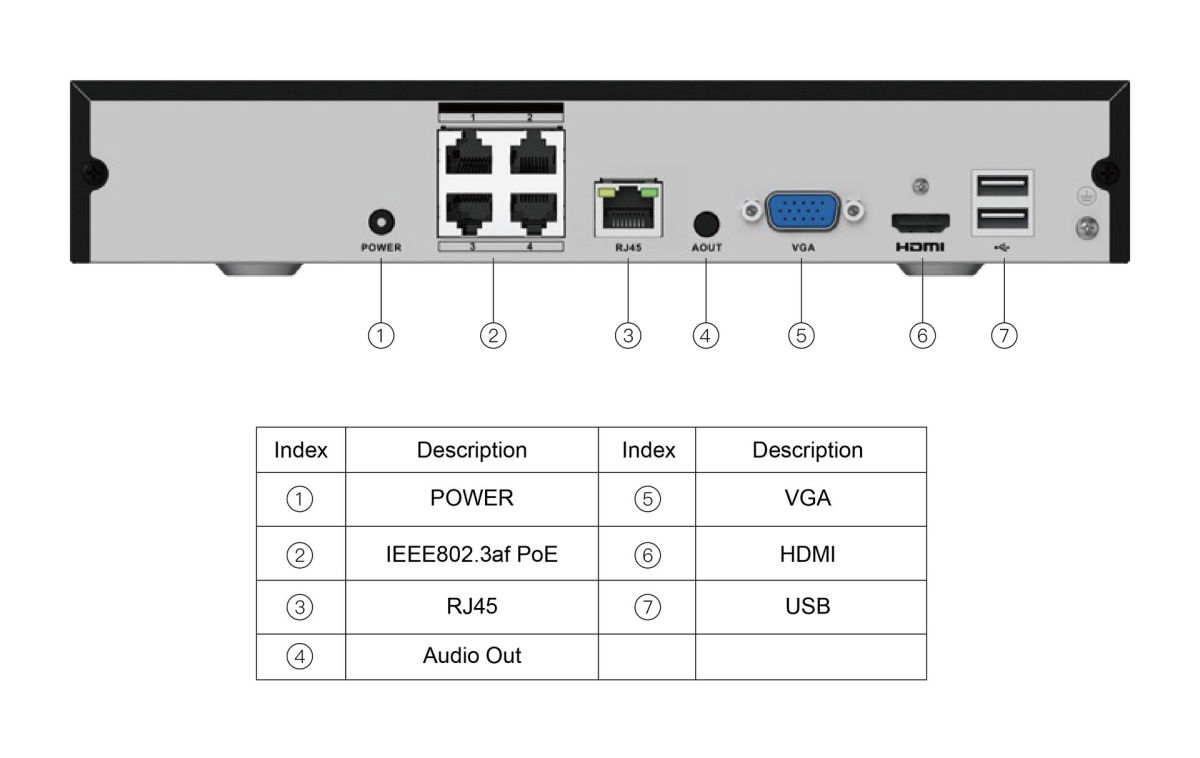

Network & Interfaces
Interface1 RJ45 Port (10/100/1000Mbps)
PoE Interface4x Port 100Mbps IEEE802.3af PoE
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart PhoneSupport iOS, Android App
InteroperabilityONVIF 2.4
Storage
SATA1 SATA interface
CapacityUp to 10TB
USB2x USB
General
Power Supply52V DC
Consumption≤50W (Without HDD)
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions260x219x45mm
Weight≤1.05Kg (Without HDD)
