  • 4CH 2MP XVR KIT

›

4CH 2MP XVR KIT
JVS-XD2504-M
Message
XVR
Dome Camera
Bullet Camera
Download

JVS-XD2704-HB10V 4CH 5-in-1 XVR

Key Features
• AHD, TVI, CVI, CVBS, IP video input.
• Automatic networking support.
• Cloud services, P2P.
• H.264+ video compressions.
• Third-party network cameras supported.
• HDMI and VGA output at up to 1920x1080 resolution.


Specifications

ModelJVS-XD2704-HB10V
Video and Audio
Analog Camera Input4 Channel, BNC
HDCVI Camera1080P@25/30fps, 720P@25/30fps
AHD Camera1080P@25/30, 720P@25/30fps
TVI Camera1080P@25/30, 720P@25/30fps
CVBS CameraPAL/NTSC
IP Camera Inputup to 1080p
Video port configurationFull HD: 4CH
Hybrid:2CH+2CH
Full Network: 8CH
Audio In/Out4/1, RCA
Two-way Talk1CH RCA
Recording
CompressionH.264+/H.264
Resolution1080P, 720P, WD1
Record RateMain stream:1080P(1~20fps),1080N/720P/960H/D1(1~20fps）
Sub stream: D1/CIF(1~8/12fps)
Record Mode

Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP),

 Alarm Device

Audio Compression                    G.711U
Display
Interface1x HDMI, 1x VGA
Resolution1280x1024, 1024x768, 1280x800, 1440x900, 1920x1080
OSDDevice ID, Time, Record Setting, Alarm setup, Audio,Camera title
Network
Interface1 RJ-45 Port (100M)
Network FunctionTCP/IP, DHCP, DNS, DDNS, HTTPS, HTTP,
Smart PhoneiPhone, Android
InteroperabilityONVIF
Playback and Backup
Playback4CH
Search ModeTime /Date, Alarm, MD, IVP, Auto, Scheduled
Playback Function

Day view, Hour view, Back Step, Rewind, Pause, Play,Fast Forward,

Slow, Step, Snap, Sound on/off, Zoom,Backup to U-Disk

Backup ModeUSB
HDD
Interface Type1 SATA Interface
CapacityUp to 6 TB
General
Power SupplyDC12V
Consumption≤ 8 W
Working Temperature00C~ 550C
Working Humidity10% to 90%
Dimensions345x275x75mm
Weight≤ 1.4 kg

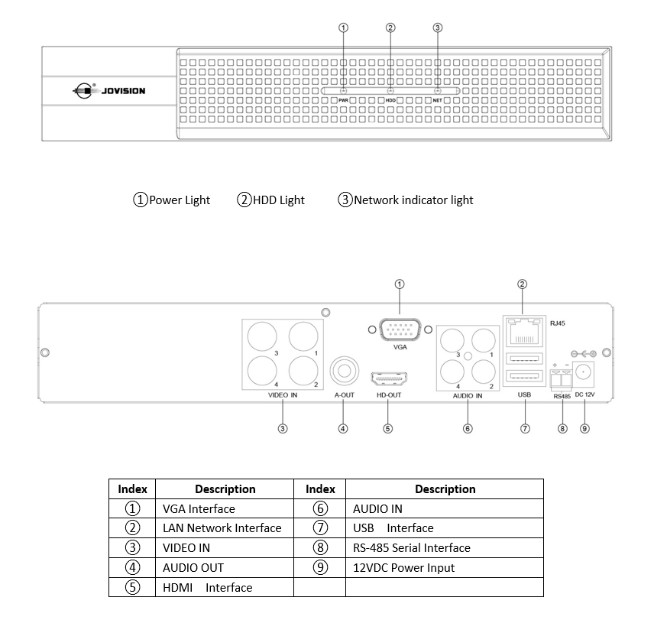

Dimensions (mm)


JVS-A835-YWC 2MP Dome HD Camera

Key Features

• 1/3" 2.0MP CMOS Sensor

• Full HD resolution 1920 x 1080

• 15Pcs IR LEDs, IR Range 20m.

• Support TVI, AHD, CVI, CVBS output

• UTC Coaxial Control

• Easy installation, HD video transfer over coaxial cable


Specifications

ModelJVS-A835-YWC
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution1920x1080
Effective Pixels2.0MP
TV SystemPAL/NTSC
Electronic ShutterAuto
S/N Ratio≥50dB
Min. Illumination0.05Lux@ (F2.0, AGC ON), 0LUX with IR
Scanning SystemProgressive Scan
Lens
LensBoard Lens 4mm/F2.0
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED10µ x 15 Pcs.
Infrared Distance20m.
IR Cut FilterYes
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageSupport
White BalanceAuto
Gain ControlAuto
Noise ReductionN/A
Picture AdjustmentN/A
WDRN/A
OSD SupportNot Support
UTCSupport
General
HousingPlastic
BracketYes
Operation Temperature-20°C ~60°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 250mA
Dimension100x100x85mm
Weight≤190g

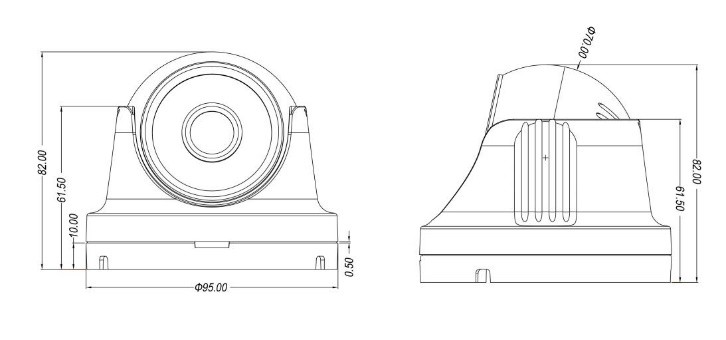

Dimension(mm)


JVS-A815-YWC 2MP Bullet HD Camera

Key Features

• 1/3" 2.0MP CMOS Sensor

• Full HD resolution 1920 x 1080

• 15Pcs IR LEDs, IR Range 20m.

• Support TVI, AHD, CVI, CVBS output

• UTC Coaxial Control

• Easy installation, HD video transfer over coaxial cable

• Ingress Protection IP66


Specifications

ModelJVS-A815-YWC
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution1920x1080
Effective Pixels2.0MP
TV SystemPAL/NTSC
Electronic ShutterAuto
S/N Ratio≥50dB
Min. Illumination0.05Lux@ (F2.0, AGC ON), 0LUX with IR
Scanning SystemProgressive Scan
Lens
LensBoard Lens 4mm/F2.0
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED10µ x 15 Pcs.
Infrared Distance20m.
IR Cut FilterYes
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageSupport
White BalanceAuto
Gain ControlAuto
Noise ReductionN/A
Picture AdjustmentN/A
WDRN/A
OSD SupportNot Support
UTCSupport
General
HousingPlastic
BracketYes
Operation Temperature-20°C ~60°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 250mA
Dimension180x75x85mm
Weight≤230g

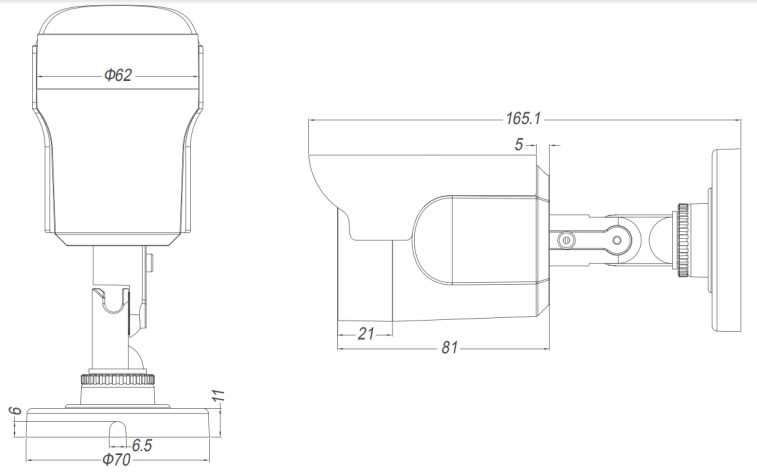

Dimension(mm)
