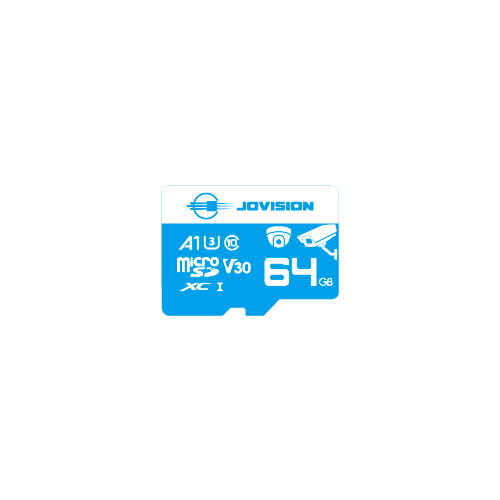

Micro SD (TF Card)
Surveillance Grade SD Cards
JVS-MicroSD-32G, JVS-MicroSD-64G,
JVS-MicroSD-128G, JVS-MicroSD-256G
Message
Features
Specification
Accessories
Download

Features

  • U3 speed rating

  • C10 speed class

  • Compatibility with Windows, Mac OS, and Linux

  • Made from Epoxy Resin material

  • Available in capacities ranging from 32GB to 256GB

Specifications
Micro SD Card (TF Card)
ModelsJVS-MicroSD-32G, JVS-MicroSD-64G, JVS-MicroSD-128G, JVS-MicroSD-256G
GradeU3
Speed ClassC10
Size15x11x1mm
Weight0.33g Max.
MaterialEpoxy Resin
Capacity

32GB

64GB

128GB

256GB

Data Transfer

32GB

Reading:78.2~79.5MB/s

Writing: 43.2~45.1MB/s

64GB

Reading: 77.1~79.5MB/s

Writing: 43~43.9MB/s

128GB

Reading: 76.8~79.1MB/s

Writing: 41.5~44.5MB/s

256GB

Reading:73.5~77.8MB/s

Writing: 59.8~61.1MB/s

OS Compatibility

Windows XP or above

Mac OS X 10.5 or above

Linux 2.4.x or above

File System

FAT32

Voltage2.7~3.6V
Current

Stand-by Current: 500µA (Maximum)

Stand-by Current: 250µA (Average)

Working Current: 250mA (Maximum)

Working Current: 150mA (Average)

Working Temperature0°C ~ 70°C
Storage Temperature-20°C ~ 85°C
