JVS-FRT-DL08

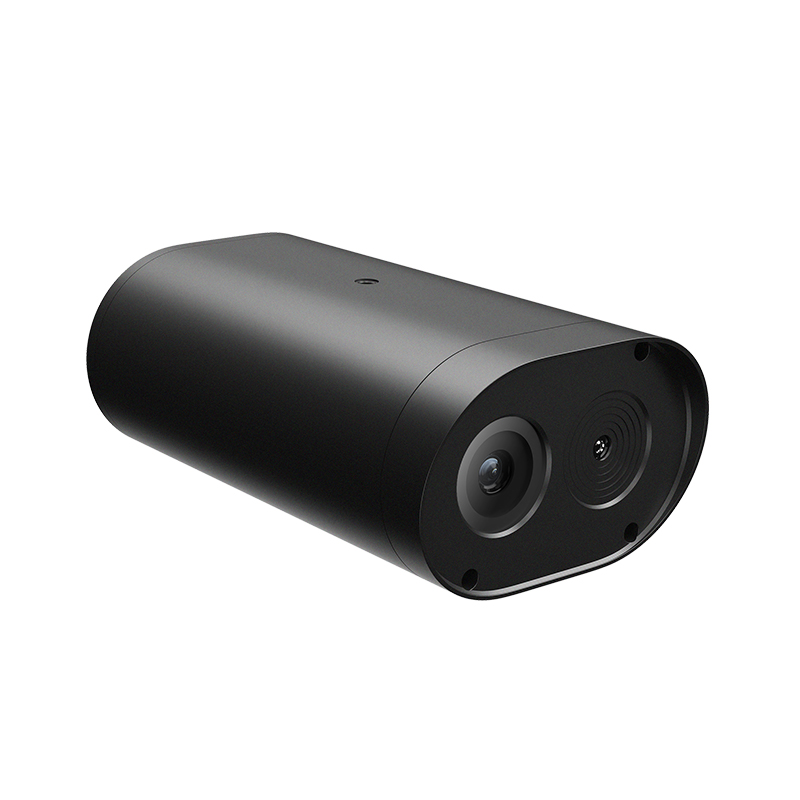

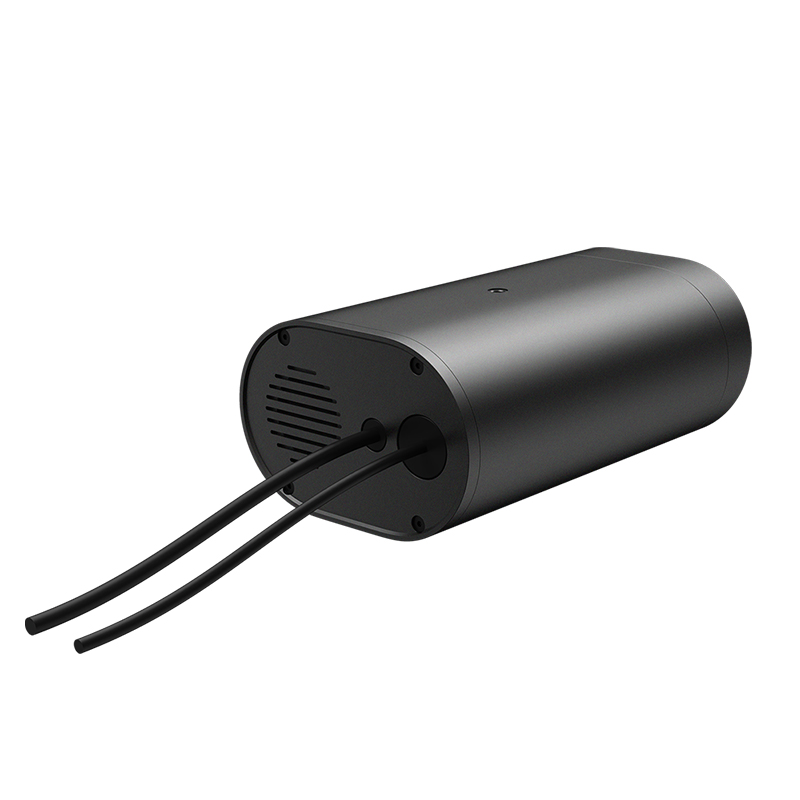

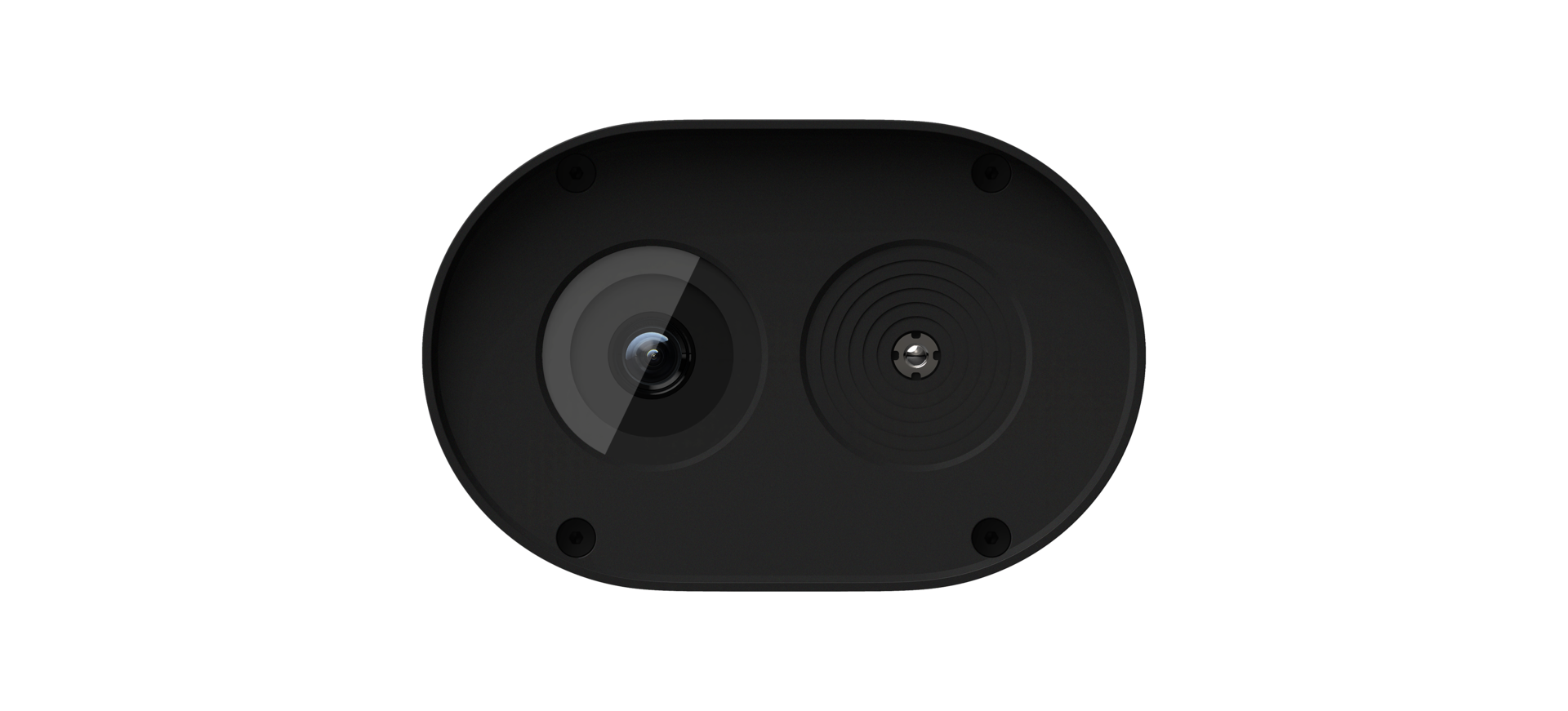

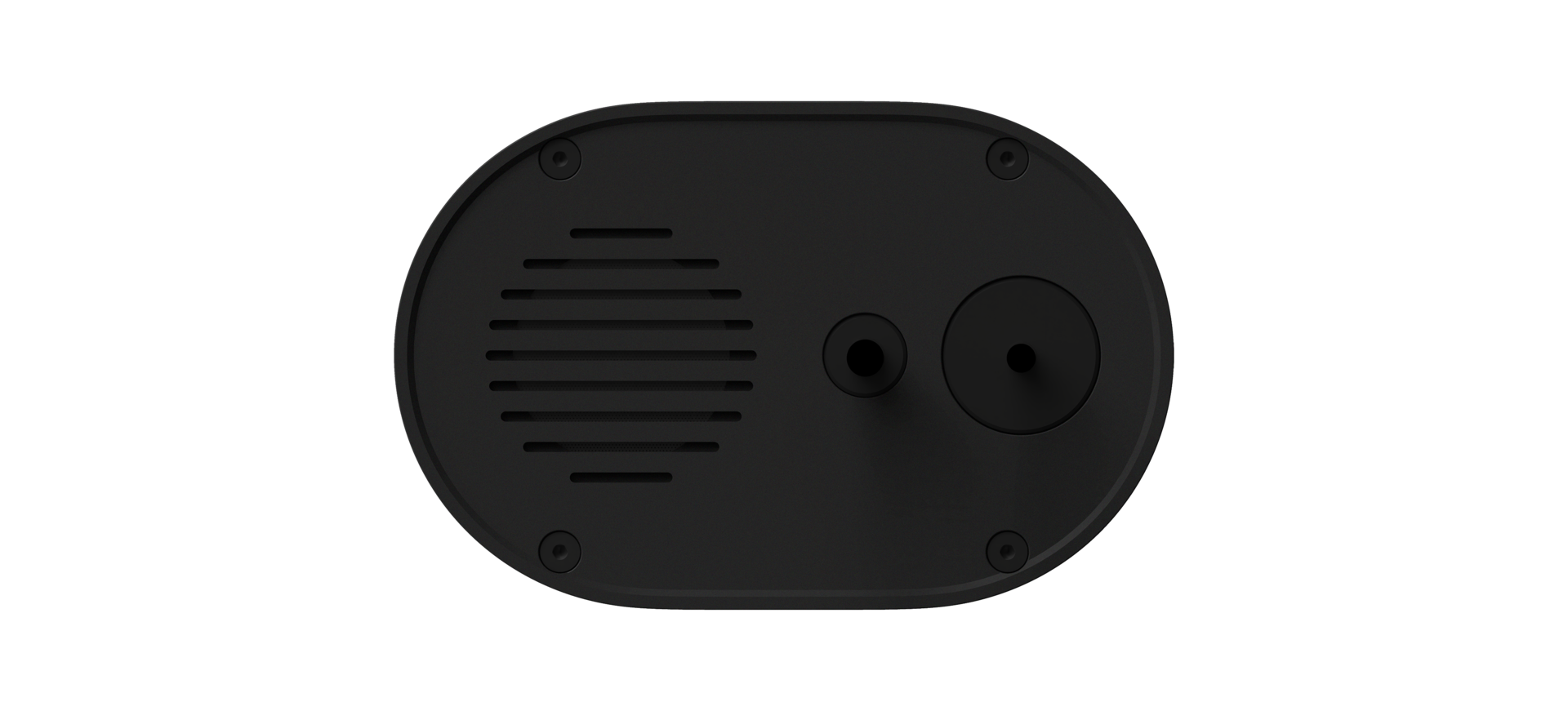

Body Temperature Detection Thermal Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 256X192 VOX Uncooled Thermal Imager

• Temperature Detection Accuracy ±0.3°C（With Blackbody）

• Support High Temperature Alarm and Broadcasting

• Support HDMI output (No need PC)

• Prevent COVID-19 epidemic by detecting human temperature.


Specifications

ModelJVS-FRT-DL08
Detector
DetectorUncooled VOX sensor
Resolution256x192
Temperature Measurement
Measurement range33°C~42°C
Accuracy±0.3℃(With blackbody)±0.5℃(Without blackbody）
Detection Distance0.5~3.5m
Installation Height1.8m
Flux>100 people/minute
High Temperature AlarmSupport
Visible Camera
Image SensorSony IMX307
Resolution2.0MP,1920x1080
Video CompressionH.265/H.264
Lens6mm
WDRSupport
Interface
Interface10M/100M Ethernet, RJ45 Port,
RS485Support
HDMISupport
Alarm Intput&Output               Support
Audio Input&OutputSupport, Built-in Speaker
StorageEMMC Method
Network
ProtocolsTCP/IP, UDP, ICMP, IGMP, DHCP, RTSP
Interface10M/100M Ethernet, RJ45 Port,
VMSSupport
General
Working Temperature-10°C~60°C (With Blackbody)
Storage temperature-20°C~60℃
Humidity5%~95%, Non-condensing
Power SupplyDC 12 V/2A
Working EnvironmentIndoor, No Wind
InstallationTripod (Optional)
Dimensions115*187*75mm
