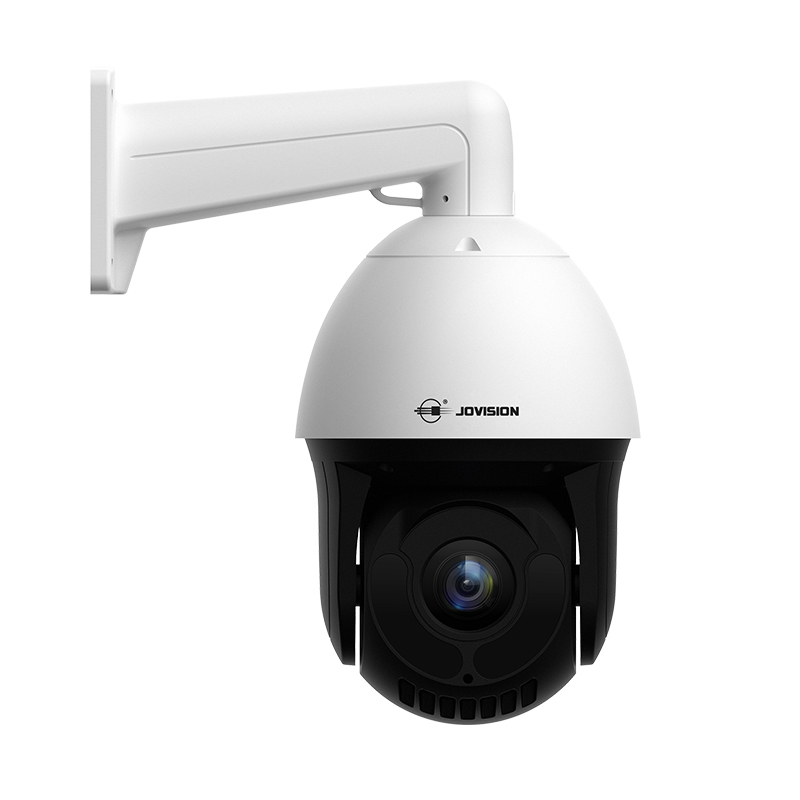

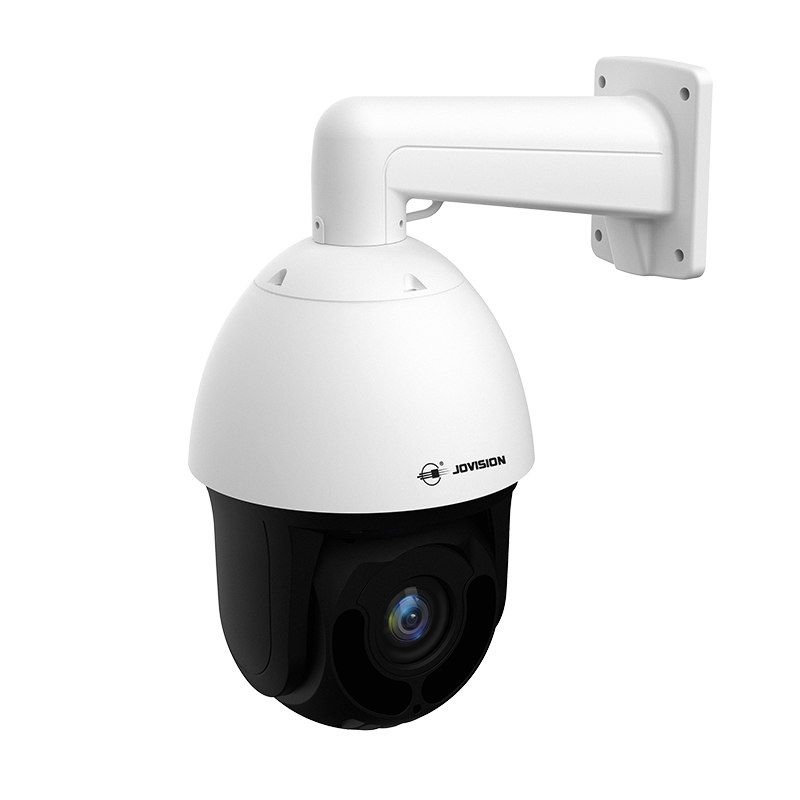

4MP 25x Zoom Starlight AI PTZ Camera
JVS-N43-Z25
Message
Features
Specification
Accessories
Download

Key Features

• 1/3’’ Progressive Scan CMOS

• 4.0 Megapixels

• 25X Optical Zoom

• With Starlight Function

• 3D DNR, HLC/BLC

• Humanoid Intelligent Tracking

• Waterproof IP66

Specifications

ModelJVS-N43-Z25
Camera
Image Sensor1/3" Progressive Scan CMOS
Max Resolution2496x1440
Effective Pixels4.0 Mega Pixels
Optical Zoom25x Zoom
Compression StandardH.264/H.265
Maximum Frame RateUp to 25 fps
Bit Rate267Kbps～8Mbps
Illumination0 Lux (IR ON)
Focus ControlAuto/ Semi-auto/ Manual
Focus LengthOptical Zoom 25X
Infrared4 Infrared Lights + 4 Laser Lights
IR Distance≥120m.
Function
OSDSupport
DWDRSupport
Smart DefogSupport
ROISupport
Motion DetectionSupport
Video AdjustSupports Contrast, Brightness, Saturation, Sharpness Adjustment
AudioSupport Audio monitoring, Intercom
Image SettingMirror, Rotate
AlarmE-mail, Client
Network Protocols:HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, CloudSEE.
System CompatibilityONVIF 2.4
Remote OperationSystem, Stream, Alarm , Network,Storage，Management, PTZ Function,Insight
PTZ
Pan/Tilt RangePan: 0°～360°; Tilt: 0°～90°
Pan Speed0°～30°/S
Tilt Speed0°～20°/S
Manual SpeedHigh, Middle, Low
Number of Preset1024
PatrolUp to 2 Patrols
ScanPatrol Scan, Pattern Scan, Tilt Scan, Frame Scan, Random Scan
ControlRS232
Communication
Communication ProtocolPelco-D
Communication Interface         RS232
Baud Rate1200/2400/4800/9600bps
Interface
Ethernet1 RJ45 10M / 100M Ethernet
Audio I/O1CH Audio In
General
Power SupplyDC12V/3.33A
Power Consumption≤ 25W
Operating Temperature-20°C ~ +60°C
Operating Humidity0% - 93% Rh Non-Condensation
Ingress ProtectionIP66
Product Dimensions205x 325X389 (mm)
Product Weight≤ 2490(g)

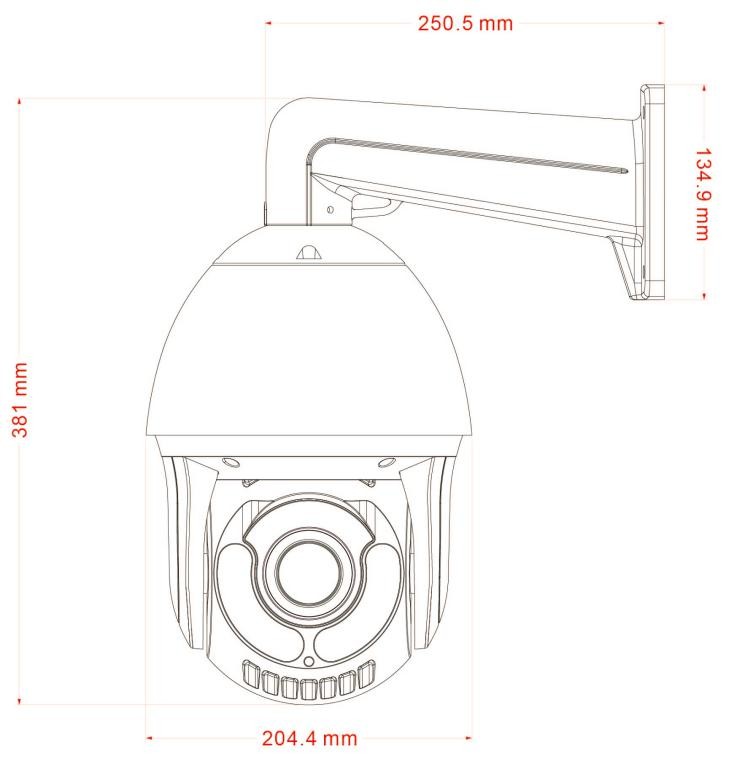

Dimension(mm)


JVS-N43-Z25 4MP 25x Zoom Starlight AI PTZ Camera.pdf
