Image Sensor

1/ 2.9” CMOS

Max Resolution

3840x2160

Effective Pixels

8.0MP

Compression Standard

H.265

Maximum Frame Rate

8.0MP@15fps

SNR(dB)

50db

Bit Rate

128Kbps ~ 6Mbps

Illumination

0Lux (IR ON)

Lens

Lens

2.7mm-13.5mm Electric zoom

IR-LEDs

2 LEDs

IR-Distance

Up to 50 Meters

Function

Motion Detection

Support

Email Alert

Support

Day& Night

Support

Recording

Support (NVR, Windows PC, Smartphone)

DHCP

Support

Pan/Tilt

Support  Pan 355° Tilt 90°

Audio Input

Support Built-in Mic

Audio Codec

Support (G711A/G711U)

SD-Card

Support (512G）

Privacy Mask

Support up 8 areas

Exposure Control

Support

Image Adjustment

Support

Auto. White Balance

Support

Image Rotation

Support (Mirror/Flip)

Intercom

Not Support

Network

Ethernet

10M/100M Ethernet, RJ45 Port

Protocols

HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS

Stream

2x Streams

Wi-Fi

Not Supported

LAN

Support

ONVIF

ONVIF 2.4

User

Up to 13 Users

Browser

IE , Chrome, Edge

Smart Phone

iOS/Android

General

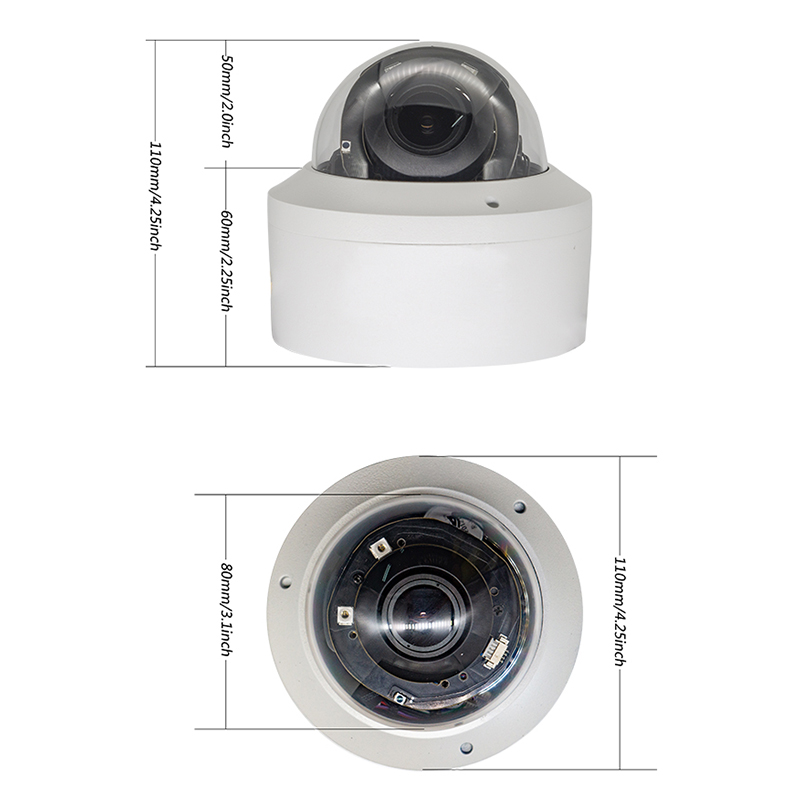

Dimensions

φ110x110 (mm)

Weights

640g

Material

Metal

Working Temperature

-30℃~60℃(-22℉~140℉)

Humidity

RH 10%～90%

Power Supply

DC12V/1.5A, PoE (IEEE 802.3af)

Consumption

Day ≦5W  Night ≦ 9W

Waterproof

IP66
