Image Sensor

Image Sensor: 1/2.7" Progressive Scan, CMOS

Max Resolution

2304x1296

Effective Pixels

3.0MP

Compression Standard

H.264/H.265/H.265+

Framerate

25fps

Bitrate

Main Stream: 256Kbps ~ 4Mbps

Sub Stream: 68Kbps~1024Kbps

SNR (dB)

52dB

Min. Illumination

0Lux (light ON)

Lens

Interface Type

M12

Lens

2.8mm

FOV

2.8mm:H 96°, V 53°, D 110°

Function

Audio Codec

G.711U/G.711A (default)

Exposure Control

Auto

White Balance

Auto

Gain Control

Auto

Digital 3D Noise Reduction

Support

OSD Information Setting

Large font OSD, OSD flashing on alarm, OSD position settings

SNTP

Support

Schedule Reboot

Support

Smart Defog

Support

Motion Detection

Support Humanoid Detection

Image Setting

Support Saturation, Brightness, Contrast, Sharpness adjustment

Image Style

Standard, Soft, Transparent

Day and Night Function

Auto, Always Black & White, Always Color, Scheduled Color

Privacy Mask

Support up 8 areas

Night Vision Optimization

Support

DWDR

Support

Screen Settings

Screen mirroring, Screen flipping

IP Adaptation

Support automatic adaptation of IP address (Optional)

Intelligent Analysis

Support Region Intrusion Detection, Line Crossing Detection, Video Blocking Detection, People Counting

Alarm Method

Email Alarm, Client Alarm

Remote Operation

System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis

Audio Function

Built-in Mic and Speaker

SD Card

Support(512G)

VQC Technology

Support

Network

Ethernet

10/100Mbps Ethernet

Stream

2x Streams

Network Protocols

IPv4, IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP

ONVIF

Standard ONVIF

Network Transmission

CloudSEE 2.0

Browser

IE8+, Chrome18+, Firefox5.0+, Safari5.02+

User

Up to 13 Users

App

Support iOS/Android

General

Lights

2 White LEDs + 2 IR LEDs

IR Distance

Up to 30 Meters

Waterproof Level

IP67

Power Supply

DC12V or PoE (IEEE802.3af)

Power Consumption

<4W (During Day); <6W (At Night)

Working Temperature

-25°C ~ 55°C

Working Humidity

5% ~ 95% Rh

Color/Material

White/Plastic+Metal

Dimensions (WxHxD)

106x94x106mm

Weight

320g

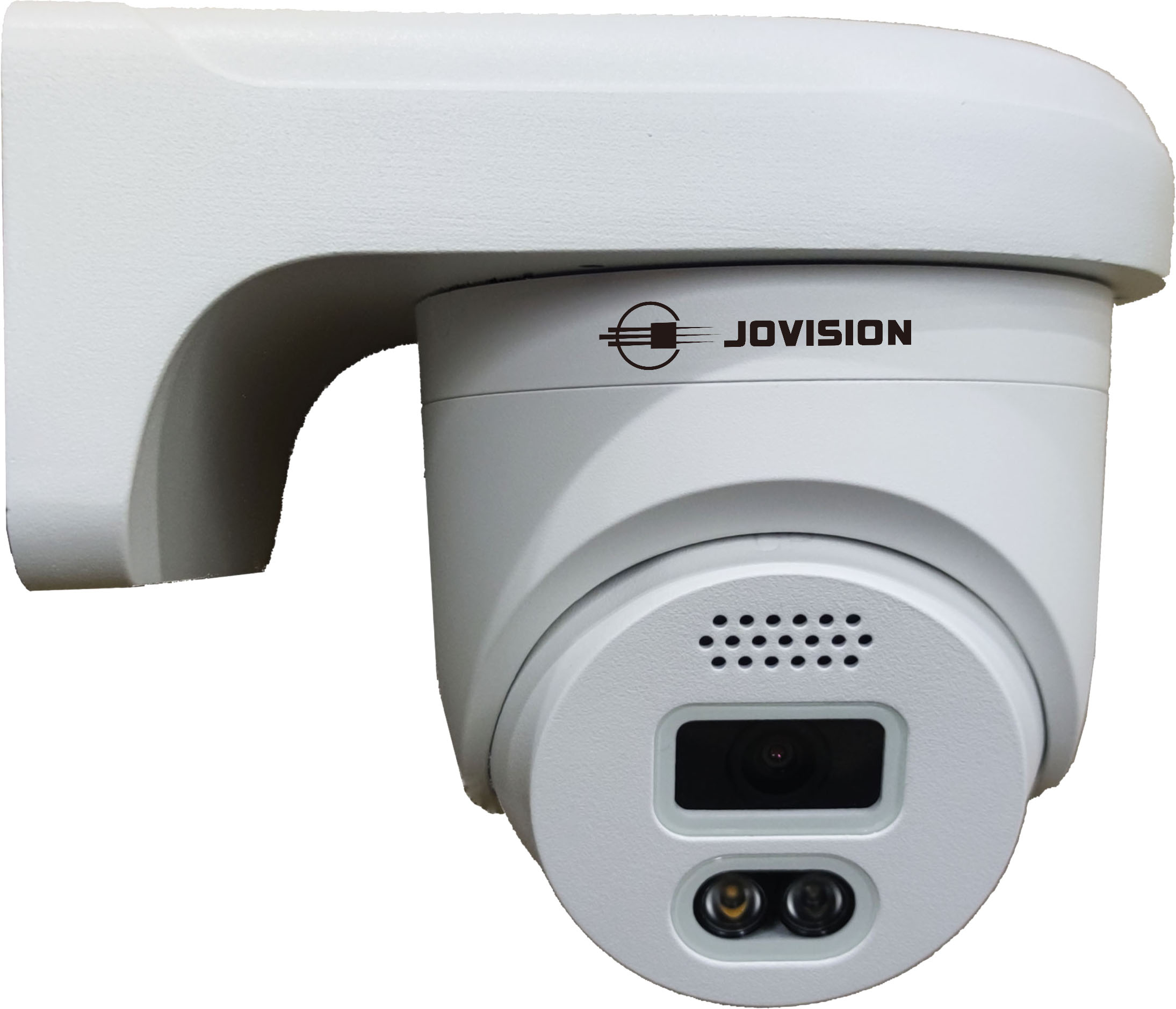

Installation Method

Wall or ceiling mount
