JVS-N3622-WF

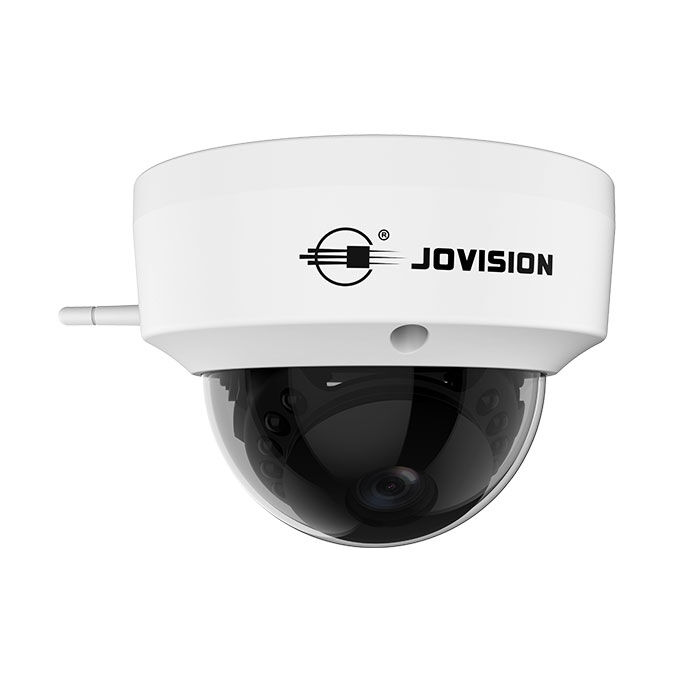

2MP Wi-Fi Vandalproof Dome Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 1920x1080

• With IR LED and IR-CUT, monitoring day and night

• 2.4Ghz Wi-Fi and 10/100M RJ45 Port

• Supports smartphone remote viewing

• Ingress Protection IP65

• Support 128GB SD Card

Specifications

ModelJVS-N3622-WF
Video
Image Sensor1/ 2.7” CMOS Sensor
Max Resolution1920 x 1080
Effective Pixels2.0MP
Compression StandardH.264
Framerate20fps
SNR (dB)54db
Bitrate Main: 40~8192Kbps
Illumination0Lux (IR ON)
Lens
Lens4mm
Viewing AngleH 79.6°, V 47.7°, D: 97.8°
IR-LEDs15x IR LEDs
IR-Distance10 Meters
Function
Privacy MaskingSupports 4 Zone masking
Exposure ModeAuto
Automatic Gain ControlAuto
White BalanceAuto
Image EnhancementAGC/ AWB/ AEC/ 3D DNR
Motion DetectionSupport
Two-Way TalkSupport
Remote Control

System Management, Audio/Video Management, Image Management,

 Storage Management, Alarm Management, Network Management.

Light & Sound AlarmSupport
Triggered Events ToClient, Email, Phone
Interface
EthernetSupport
SD CardSupport Max. 128GB
Reset SwitchSupport
Network
Ethernet10M/100M Ethernet, RJ45 Port
Wi-FiWi-Fi (IEEE802.11b/g/n), 2.4Ghz
StreamDual stream
ProtocolsTCP/IP, ICMP, UDP, SMTP, DHCP, DNS, PPPoE
Network Transmission           CloudSEE P2P Transmission Protocol
General
Power SupplyDC12V/2A
ConsumptionDay ≤3W Night ≤6W
Working Temperature-20°C~50°C
Humidity10%~90% Rh
MaterialAluminum & Plastic
InstallationWall, Ceiling Mounting
Dimensions109.74x81.8(mm)
Weights370g


Dimensions(mm)
