  • JVS-N4232SL

›

JVS-N4232SL
3MP Vandalproof Dome PoE IP Camer
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2048x1520@30fps

• Starlight function

• 4mm Lens with wide viewing angle

• 35x IR-LED, up to 20 Meters

• Ingress Protection IP66

• Motion Detection with Email Alert

• CloudSEE Embedded

• ONVIF 2.4, Compatible with ONVIF Recorder

Specifications

ModelJVS-N4232SL
Video
Image Sensor1/2.8” CMOS Sensor
Max. Resolution2048x1520
Effective Pixels3.0MP
Video CompressionH.264/H.265
Framerate30fps
Bitrate409Kbps~8Mbps
Illumination0Lux (IR ON)
Lens
Lens4 mm
Viewing AngleH: 79.6°, V: 47.7°, D: 97.8°
IR-LEDs35Pcs
IR-DistanceUp to 20m.
Function
Exposure ControlAuto
White BalanceAuto
Image Enhancement3D DNR
Advanced OSDSupport OSD large font function, OSD flashing on alarm, OSD and time to set the position separately
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionDay and night automatic switching
Privacy MaskSupport
Intelligent AnalysisNot Support
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and video, Image, Alarm,Network management
StarlightSupport
Network
Ethernet1x RJ45 10M / 100M Ethernet
Stream3x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
InteroperabilityONVIF 2.4
Network Transmission                     CloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V/2A, PoE IEEE 802.3af
Consumption<3W (During day); <7W (At night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
MaterialAluminum
Dimension139.9x101.4mm
Weight720g
WaterproofIP66

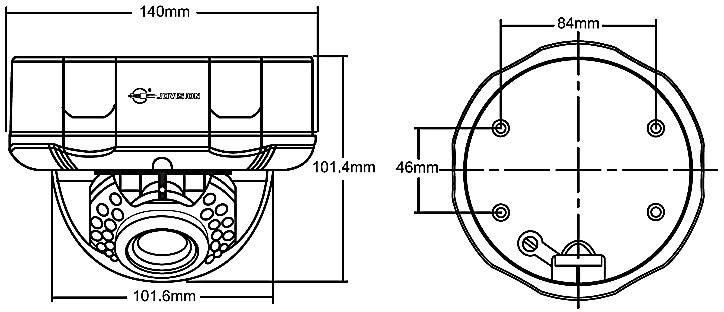

Dimension(mm)
