JVS-N933-K1-PE

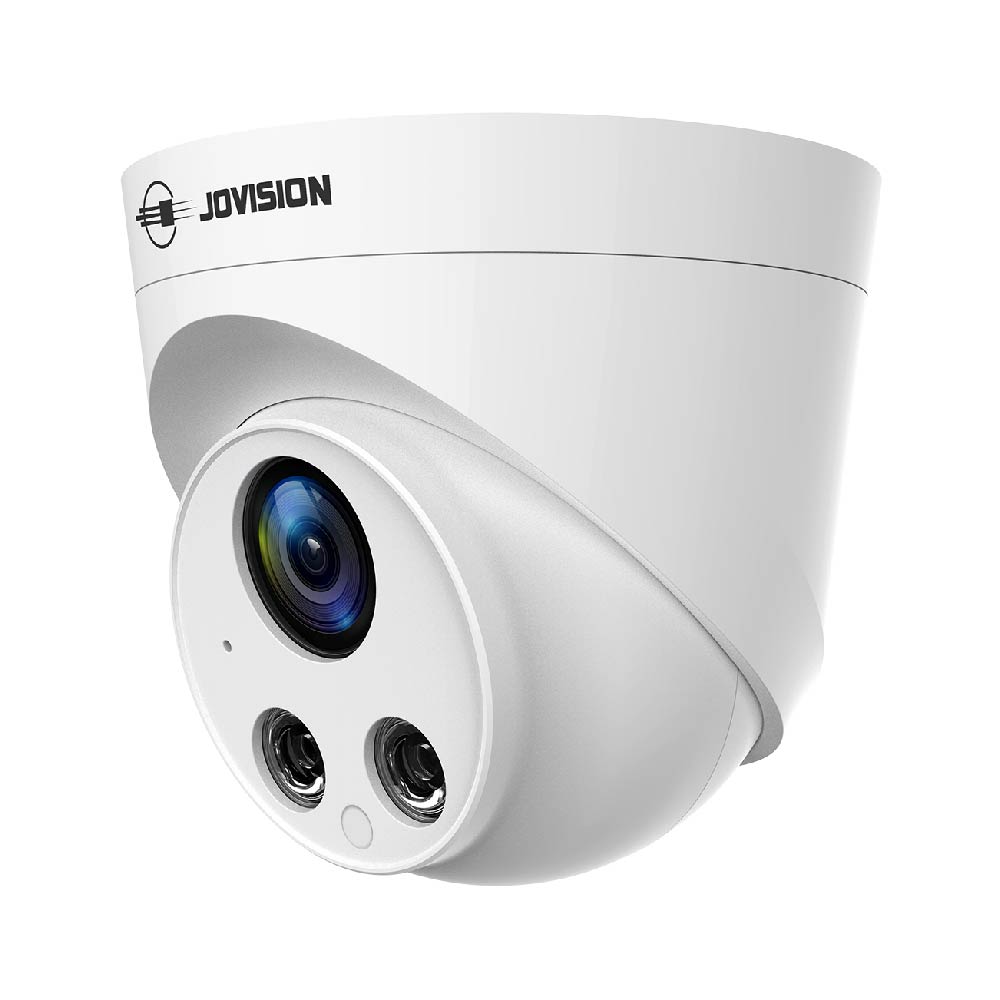

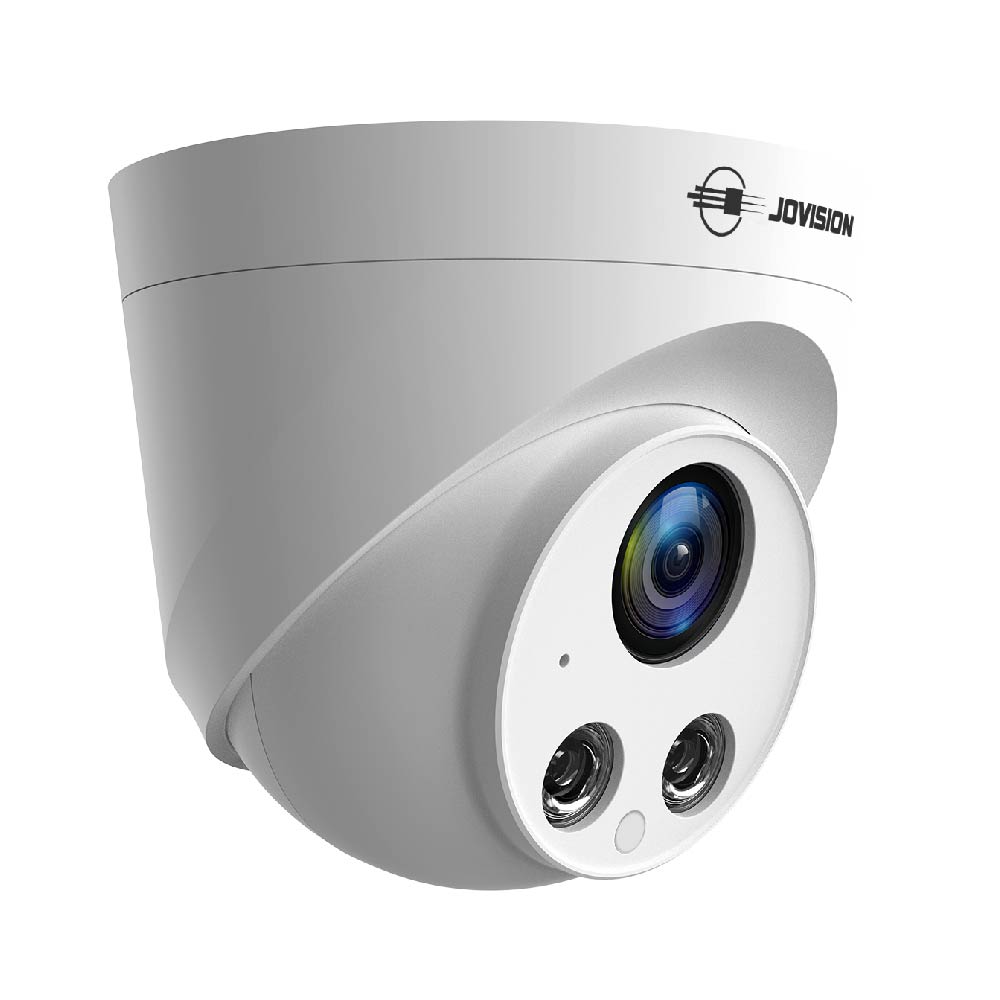

3MP Dome Starlight Audio PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• New appearance, Optimized space

• Resolution 2304x1296@25fps

• 2x high power IR LEDs

• Built-in Microphone, Support Audio Recording

• With Starlight function

• With Internal PoE

Specifications
ModelJVS-N933-K1-PE
Video
Image Sensor1/2.9" CMOS Sensor
Max. Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.265/ H.264
Framerate25fps
Bitrate256Kbps~8Mbps
SNR (dB)52dB
Min. Illumination0Lux (IR ON)
Lens
Lens4mm, M12
Viewing AngleH: 78.5°, V: 42.8° D:92.6°
IR-LEDs28µ 2x LEDs
IR-DistanceUp to 15m.
Function
Exposure ControlSupport
White BalanceAuto
Image EnhancementBLC/ HLC/ 3D DNR/ Defog
Advanced OSDSupport OSD large font function, OSD and time to set the position separately, 5 lines x 32 characters
Privacy MaskSupport 8 Rectangle Areas
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent AnalysisNot Support
Alarm MethodEmail Alarm
Remote OperationSystem, Audio and video, Image, Alarm,Network management
Expansion InterfaceMIC Audio Input
Network
Ethernet1x RJ45 10M / 100M Ethernet
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, DDNS
InteroperabilityONVIF 2.4
Network transmission                      CloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V or IEEE802.3af PoE
Power Consumption<3W (During day); <6W (At night with IR)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
MaterialPlastic
Dimensions100x92x100mm
Weight200g

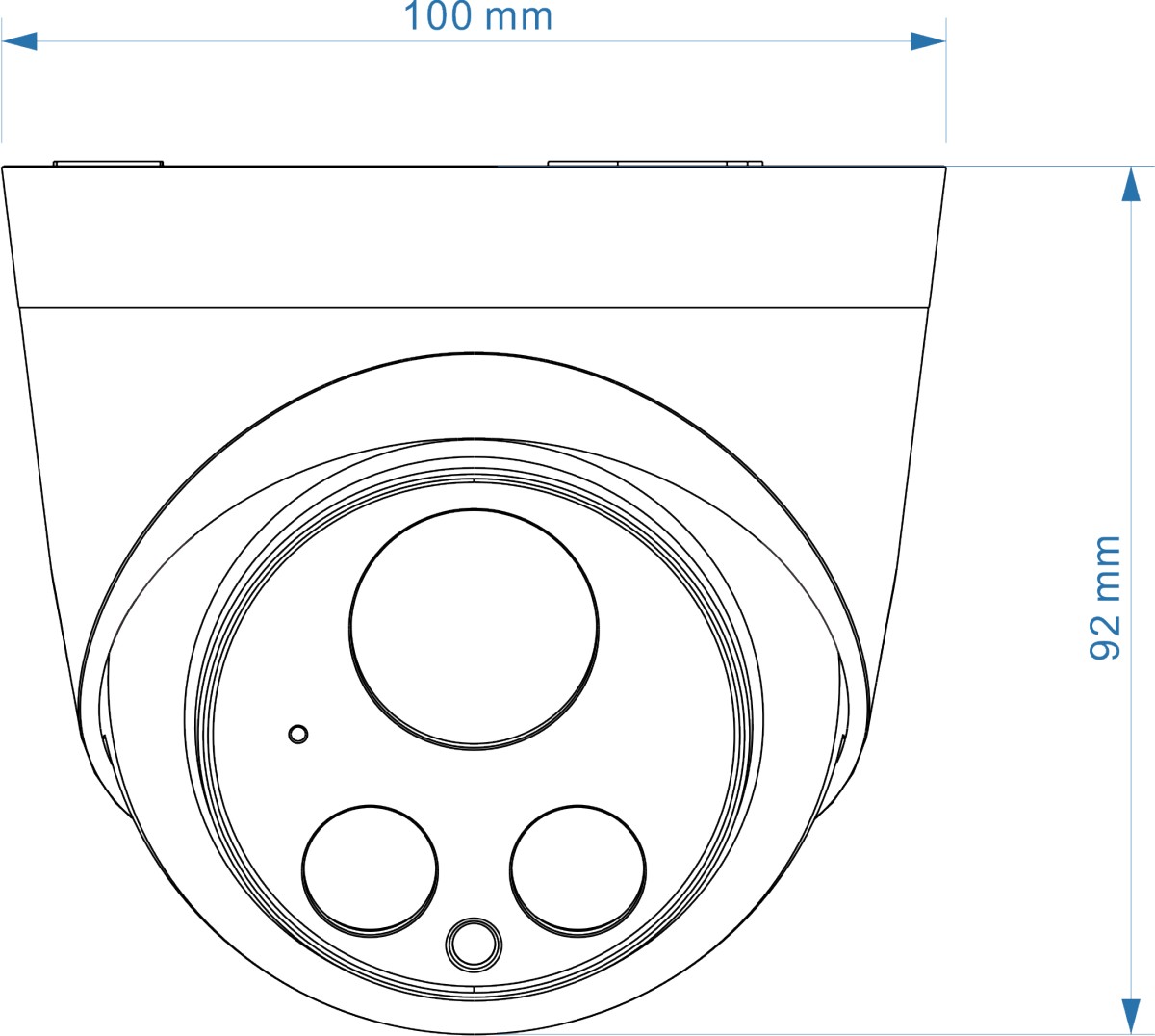

Dimension(mm)
