  • 3MP Audio PoE Dome IP Camera

›

3MP Audio PoE Dome IP Camera
JVS-N935SL-HY
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2048x1520@30fps

• With Starlight function

• 2x Array IR LEDs,

• Support CloudSEE APP on iOS/Android

• ONVIF 2.4, Compatible with ONVIF Recorder

• 2.8mm wide angle lens

• Built-in Microphone


Specifications

ModelJVS-N935SL-HY
Video
Image Sensor1/2.7” CMOS Sensor
Max. Resolution2048x1520
Effective Pixels3.0MP
Compression Standard                    H.265
Framerate30fps
Bitrate 128Kbps ~ 8Mbps
SNR (dB)38.6dB
Illumination0Lux (IR ON)
Lens
Lens2.8mm
Viewing AngleH: 88.5°, V: 65.3° D: 107.2°
IR-LEDs2x Array IR LEDs
IR-DistanceUp to 12m.
Function
Exposure ControlAuto
White BalanceAuto
Image Enhancement3D DNR
Advanced OSDSupport OSD large font function, OSD flashing on alarm, OSD and time to set the position separately
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent AnalysisNot Support
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and video, Image, Alarm,Network management
StarlightSupport
WDRSupport
AudioBuilt-in mic
Network
Ethernet1x RJ45 10M / 100M Ethernet
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
InteroperabilityONVIF 2.4
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V/1.5A, IEEE 802.3af PoE
Consumption<3W (During day); <9W (At night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
MaterialPlastic
Dimensions102x100x90mm
Weight210g

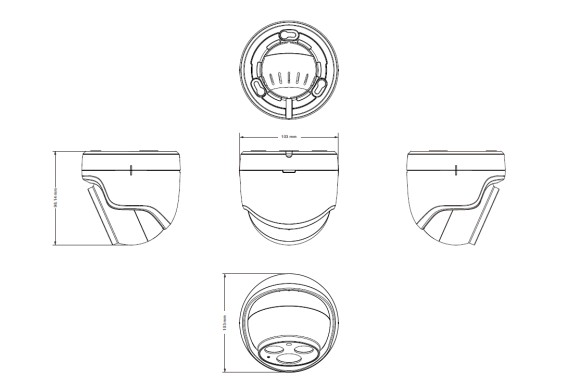

Dimensions (mm)


JVS-N935SL-HY 3MP Audio PoE Dome IP Camera.pdf
