  • JVS-A410-YWC

›

JVS-A410-YWC
4MP Bullet HD Camera
Message
Features
Specification
Accessories
Download

Key Features

• 1/3" 4.0MP CMOS Sensor

• Support AHD High-Definition transfer

• Resolution:2688x1520

• Long Distance, No delay

• OSD/UTC menu (Optional)

• Adopt 3D-DNR, Better Low light quality.

• Support ICR Auto Switch.

• Ingress Protection IP66


Specifications
ModelJVS-A410-YWC
Camera
Image Sensor1/3" CMOS Sensor
Image Resolution2688x1520
Effective Pixels4.0MP
TV SystemPAL/NTSC
Electronic ShutterAuto
S/N Ratio≥50dB
Min. Illumination0.01Lux@ (F1.2, AGC ON) 0LUX with IR
Scanning SystemProgressive Scan
Lens
LensBoard Lens 3.6mm/F2.0
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED14µ x 18 Pcs
Infrared Distance25m.
IR Cut FilterYes
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageOptional
White BalanceAuto
Gain ControlAuto
Noise Reduction3D DNR
Picture AdjustmentN/A
WDRYes
OSD SupportOptional
UTCOptional
General
HousingPlastic
BracketYes
Operation Temperature-10°C ~ 50°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 230mA
Dimension180x75x85mm
Weight≤230g

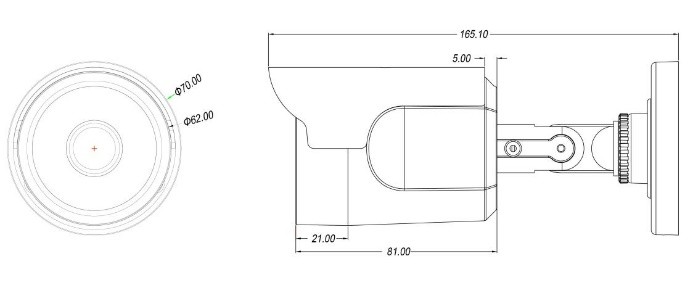

Dimension(mm)
