  • JVS-A813-YWC

›

JVS-A813-YWC
2MP Starlight Bullet HD Camera
Message
Features
Specification
Accessories
Download

Key Features

• 1/2.9" 2.0MP CMOS Sensor

• Full HD resolution 1920x1080

• 15Pcs IR LEDs, IR Range 20m.

• Support TVI, AHD, CVI, CVBS output

• UTC Coaxial Control

• Easy installation, HD video transfer over coaxial cable

• Ingress Protection IP66


Specifications

ModelJVS-A813-YWC
Camera
Image Sensor1/2.9" CMOS Sensor
Image Resolution1920x1080
Effective Pixels2.0MP
Video FormatPAL/NTSC
Video OutputAHD/ TVI/ CVI/ CVBS
Electronic ShutterAuto
S/N Ratio≥50dB (AGC Off)
Min. Illumination0Lux (IR ON)
Scanning SystemProgressive Scan
Lens
Lens4mm/F2.0
Focus controlFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED10µ x 15 Pcs
Infrared Distance20m.
IR Cut FilterYes
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageOptional
White BalanceAuto
Gain ControlAuto
Noise Reduction3D DNR
Picture AdjustmentContrast, Sharpness, Saturation
BLCSupport
WDRYes
OSD SupportYes
UTCSupport
StarlightSupport
General
HousingPlastic
BracketYes
Operation Temperature-20°C ~ 60°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 250mA
Dimension180x75x85mm
Weight≤230g

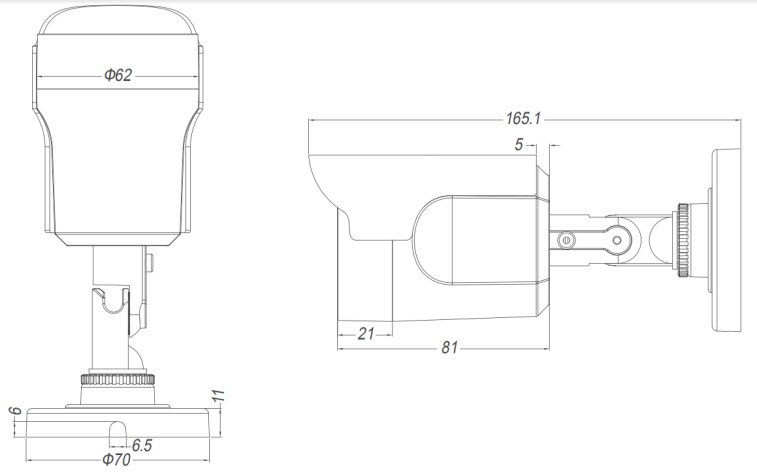

Dimension(mm)
