JVS-A510-YWS
5MP Bullet HD Camera
Message
Features
Specification
Accessories
Download

Key Features

• 1/ 2.5" 5.0MP CMOS Sensor

• All-in-one coaxial HD output, clear and delicate images

• Illuminance, 0.05Lux@ (F1.6, AGC ON), 0LUX with IR

• Support OSD menu control, suitable for user-defined settings

• Adaptive Digital Noise Reduction, 2D-DNR

• Support coaxial control (UTC)

• Video 6KV lightning protection, power supply large capacitor design

• Support DC 6-15V wide voltage supply

• Ingress Protection IP66

Specifications

ModelJVS-A510-YWS
Camera
Image Sensor1/2.5" CMOS Sensor
Image Resolution2704x1950
Effective Pixels5.0MP
TV SystemPAL/NTSC
Electronic ShutterAuto
S/N Ratio≥37dB
Min. Illumination0.05Lux@ (F1.6, AGC ON), 0LUX with IR
Scanning SystemProgressive Scan
Lens
LensBoard Lens 3.6mm/F1.6
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED14µ x 18 Pcs
Infrared Distance30m.
IR Cut FilterYes
IR StatusUnder 0.1 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageOptional
White BalanceAuto
Gain ControlAuto
Noise Reduction2D DNR
Picture AdjustmentN/A
WDRYes
OSD SupportOptional
UTCSupport
StarlightSupport
General
HousingMetal
BracketYes
Operation Temperature-10°C ~ 50°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 230mA
Dimension215x100x105mm
Weight≤480g

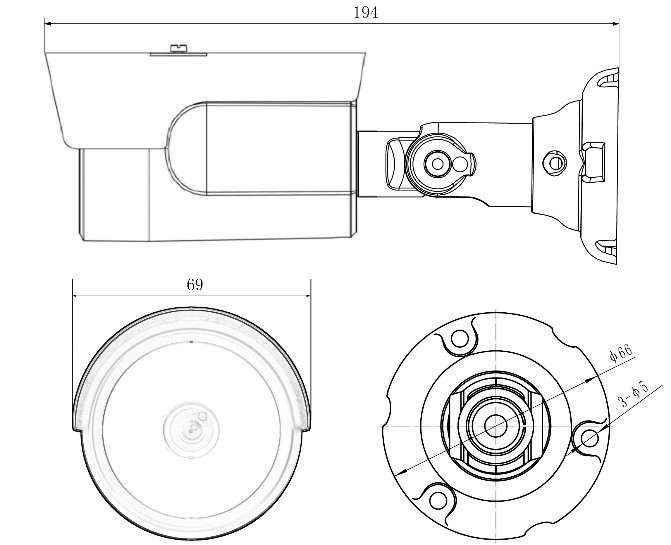

Dimension(mm)
