JVS-A813-YWS
2MP Starlight Metal Bullet HD Camera
Message
Features
Specification
Accessories
Download

Key Features

• 1/ 2.8" 2.0MP IMX307LQR CMOS Sensor

• With Starlight function

• Resolution:1920x1080

• Illuminance, 0.1Lux@ (F1.6, AGC ON), 0LUX with IR

• Support coaxial control (UTC)

• Support Digital Wide Dynamics

• Ingress Protection IP66


Specifications

ModelJVS-A813-YWS
Camera
Image Sensor1/ 2.8" CMOS Sensor
Image Resolution1920x1080
Effective Pixels2.0MP
TV SystemPAL/NTSC
Electronic ShutterAuto
S/N Ratio≥50dB
Min. Illumination0.1Lux@ (F1.6, AGC ON), 0LUX with IR
Scanning SystemProgressive Scan
Lens
LensBoard Lens 3.6mm/F2.0
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Infrared SMD LED14µ x 18 Pcs
Infrared Distance30m.
IR Cut FilterYes
IR StatusUnder 0.1 Lux by CDS
IR Power OnCDS Auto Control
Day & NightAuto (ICR) / Color / B&W
Camera Features
OSD Menu LanguageOptional
White BalanceAuto
Gain ControlAuto
Noise Reduction3D DNR
Picture AdjustmentN/A
WDRYes
OSD SupportOptional
UTCSupport
StarlightSupport
General
HousingMetal
BracketYes
Operation Temperature-10°C ~ 50°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 230mA
Dimension215x100x105mm
Weight≤480g

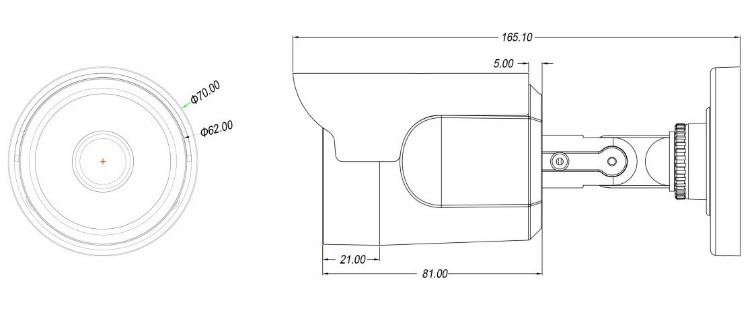

Dimension(mm)
