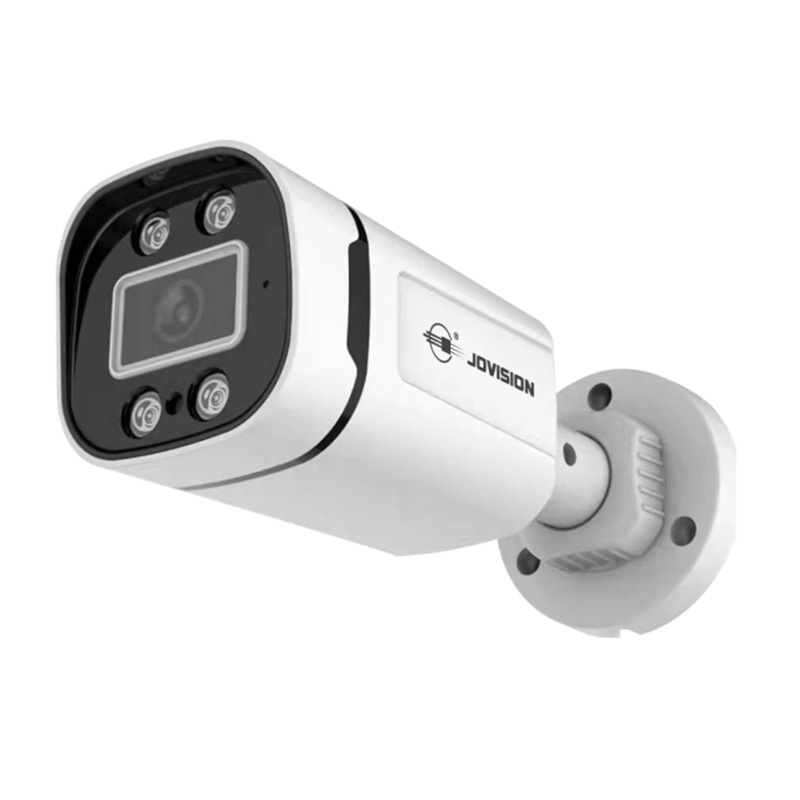

2MP Full-Color Bullet HD Camera
JVS-A816-HYC
Message
Features
Specification
Download

Key Features

• 1/2.9" 2.0MP CMOS Sensor

• Resolution:1920x1080

• 4Pcs Warm LEDs, Light Range 15m

• Support Digital Wide Dynamic Range

• Ingress Protection IP66

• Support UTC

• With built-in mic

Specifications

ModelJVS-A816-HYC
Camera
Image Sensor1/2.9" CMOS Sensor
Image Resolution1920x1080
Effective Pixels2.0MP
TV SystemPAL/NTSC
Signal modeAHD/ TVI/ CVI/ CVBS
Electronic ShutterAuto
S/N Ratio≥39dB
Scanning SystemProgressive Scan
Lens
LensBoard Lens 3.6mm/F2.0
Lens TypeFixed
Auto Iris SupportN/A
Night Vision
Warm LED28µ x 4Pcs
LED Light Distance15m.
IR Cut FilterN/A
LED StatusTurn on below 7Lux
LED ControlSoftware Control
Day & NightFull Color
Camera Features
OSD Menu LanguageOptional
White BalanceAuto
Gain ControlAuto
Noise Reduction3D DNR
Picture AdjustmentN/A
WDRDWDR
OSD SupportOptional
AudioBuilt-in mic
UTCOptional
General
HousingPlastic + Metal
BracketYes
Operation Temperature-10°C ~ 50°C
Working Humidity10% ~ 90%
Power SourceDC12V±10%, 230mA
Dimension184x69x65mm
Weight≤200g

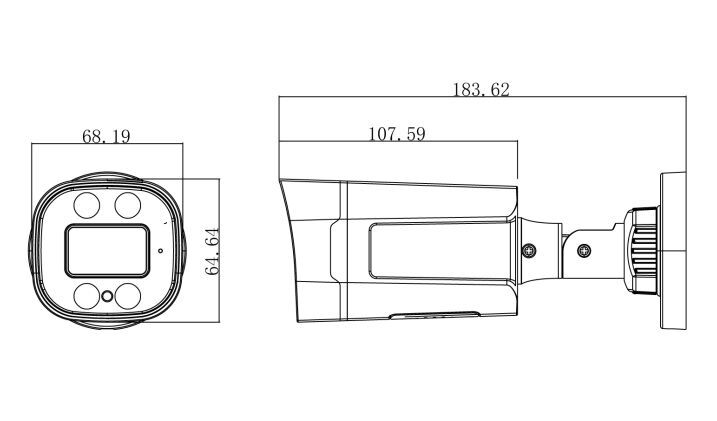

Dimension(mm)
