Video & Audio

IP Camera Input

32 Channel

Video Output

HDMI: 4K@60Hz/ 4K@30Hz/ 2K@60Hz/ 2K@30Hz/ 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768

VGA: 1920x1080

Audio In & Out

Support

Compression

H.265/ H.264

Max Decoding

4K/5.0MP/4.0MP/1080P/960P/720P 30fps

Bandwidth I/O

400Mbps/320Mbps

Storage

SATA

8x SATA Interface

Capacity

Up to 10TB Max.

File Format

Log: *.txt/ Picture: *.JPG/ Video: *.mp4

Backup Mode

USB 3.0 Device FAT32/ NTFS/ exFAT

Video

Video Playback

Auto/ Timing/ Alarm/ Motion Detection/ Intelligent Analysis

Sync Playback

1ch 4K,2ch 5.0MP,3ch 4.0MP,4ch 3.0MP,4ch 1080P

Search Mode

Channel Number/ Recording Type/ Date

Network

Ethernet

100/1000Mbps

Network Function

TCP/IP, UDP/IP, CloudSEE, SMTP, NTP, DHCP

Interoperability

ONVIF 2.4, CloudSEE 2.0

Smart Phone

iPhone, Android

Hardware

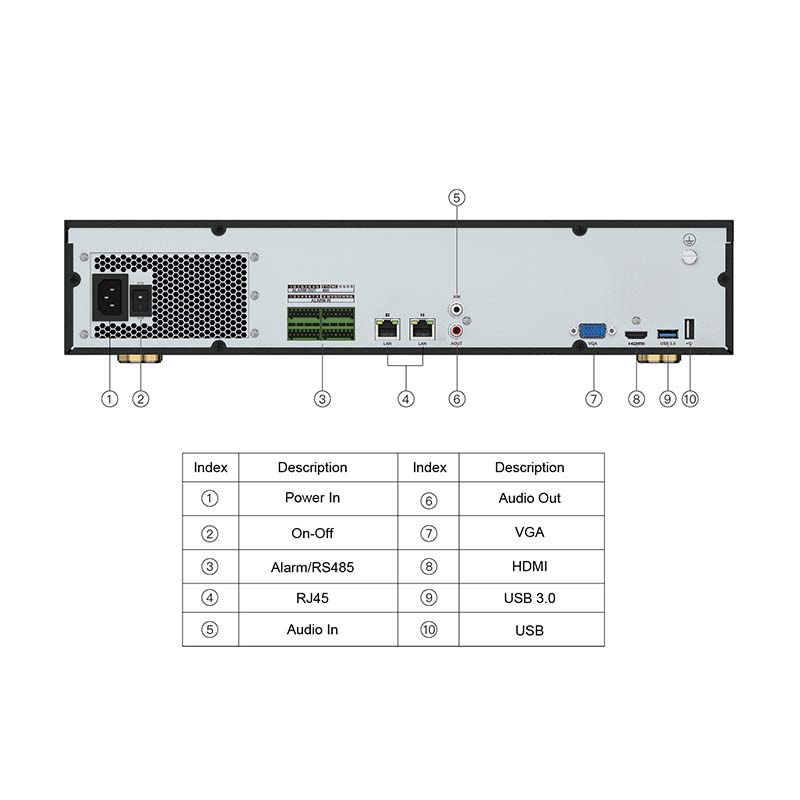

Network Interface

2x RJ45

USB Interface

3x USB2.0, 1xUSB3.0

PTZ Interface

RS485

Controlling Device

Mouse

Alarm Input

16CH

Alarm Output

4CH

Special

Multi-Screen Display

1/ 4/ 5/ 6 up to 32

Alarm Method

Buzzer, Push to App, Email Alarm, External Alarm

Digital Zoom

Support

General

Power Supply

ATX

Consumption

≤ 30 W (Without HDD)

Working Temperature

-10°C ~ 55°C

Working Humidity

10% ~ 90%

Dimensions

445x90.5x430(mm)

Weight

≤ 8Kg (Without HDD)
