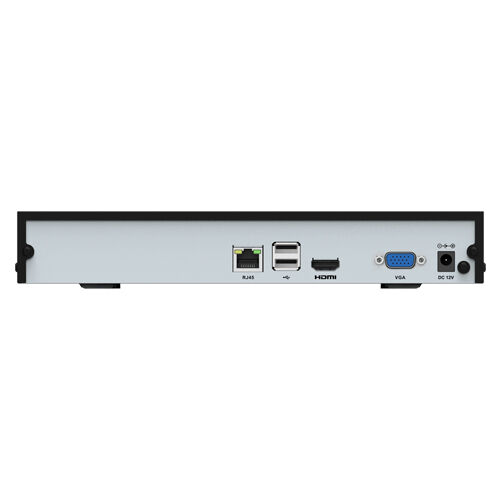

JVS-ND7616-HP
16CH H.265 4K NVR
Message
Features
Specification
Accessories
Download
Key Features
  • Adopt the new Vstar GUI , easy to operate and run smoothly.

  • Support intelligent coding VSMart, greatly reducing storage space.

  • Improved compatibility for hard disks, and up to 10TB.

  • Supports multiple intelligent analyses such as motion detection, regional intrusion, tripwire detection, passenger flow statistics, scene changes, and occlusion alarms.

  • Support the preview, storage and playback of 4K HD network video.

  • Support built-in speakers, realize real-time monitoring of video recording, support voice alarm.

Specifications

ModelJVS-ND7616-HP
Video and Audio
IP Camera Input16Channel
Audio Input/ OutputIPC Audio input/Audio output through HDMI
Built-in SpeakerSupport
Display
Interface1 HDMI, 1 VGA
ResolutionHDMI:3840x2160@30Hz/2560x1440@30Hz/1920x1080/1440x900/1280x1024/1280x720/1024x768
VGA: 1920x1080,1440x900,1280x1024,1280x720,1024x768
Max Decoding1CH 4K 15fps;8CH@ 5.0MP/4.0MP/1080P/960P/720P 25fps
Multi-screen Display1/4/5/6/7/8/9
OSDCamera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number
Recording
CompressionH.265/H.264
Resolution1CH 4K;8CH 5.0MP/4.0MP/1080P/960P/720P
Record ModeManual, Schedule, MD
Video Detection and Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Playback and Backup
Sync Playback1CH 4K,1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080P
Search ModeChannel number / recording type / date
Playback FunctionDay View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup ModeFAT32 USB Device/Network
Network
Interface1 RJ-45 port (10/100Mbps)
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP
Smart PhoneiPhone, Android
InteroperabilityONVIF 2.4
Storage
SATA1 SATA interfaces
Capacityup to 10TB
General
Power SupplyDC 12V
Consumption≤ 10 W (Without HDD)
Working Temperature-100C~ 550C
Working Humidity10 % ~ 90 %
Dimensions260X47.5X225mm
Weight≤ 1.0kg (Without HDD)
