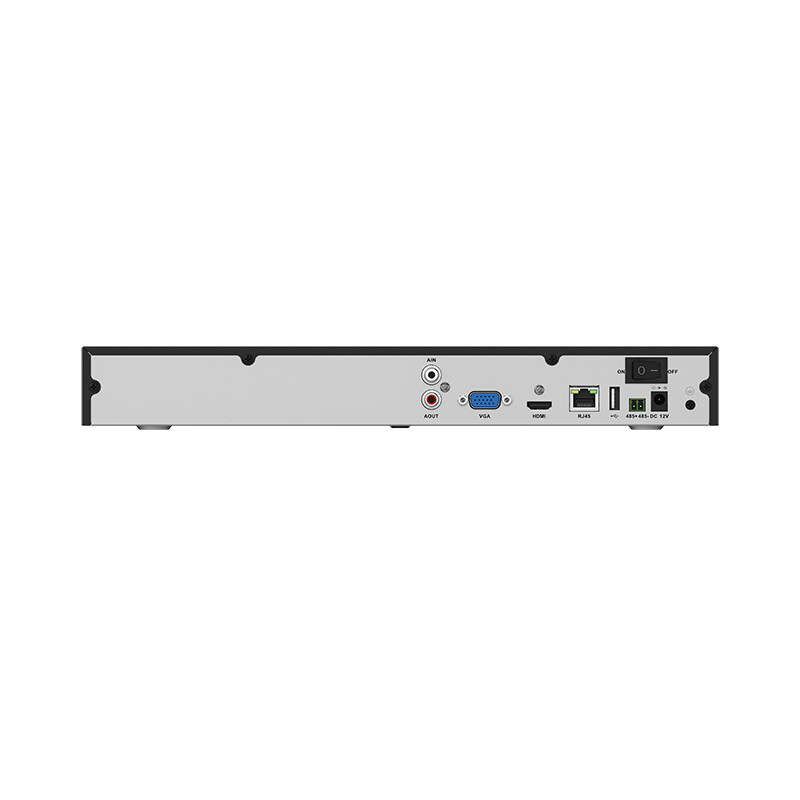

JVS-ND7916-HV
16CH H.265 2x SATA NVR
Message
Features
Specification
Accessories
Download

Key Features

  • Support 4K Output

  • Support 4K IP Cameras Input

  • Support Audio Input and Output;

  • Two SATA Support, Up to 10TB Each;

  • Support 485


Video and Audio
IP Camera Input16 Channel
Audio Input/ Output1CH Input,1 Channel Output, RCA; Audio output support HDMI
Bandwidth I/O320Mbps/160Mbps
Display

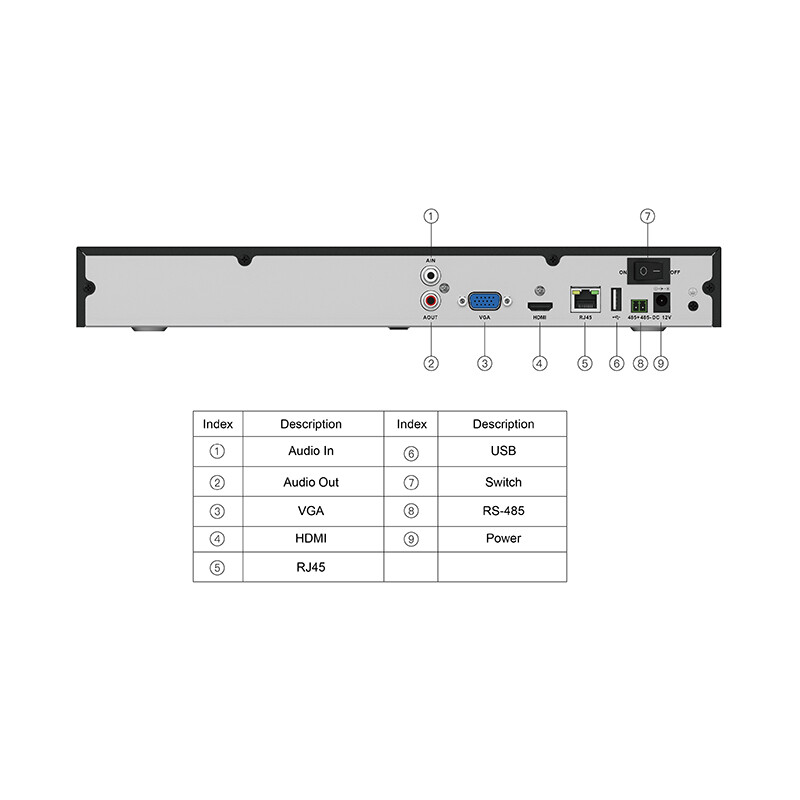

Interface1 HDMI, 1 VGA
ResolutionHDMI: 3840×2160,1920×1080,2560×1440,1440×900,1280×1024,1280×720,1024×768

VGA: 1920×1080,1440×900,1280×1024,1280×720,1024×768
Max Decoding4K/ 5.0MP4.0MP/1080P/960P/720P 30fps
Multi-screen Display1/4/5/6…13/14/15/16
OSDCamera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number
Recording
CompressionH.265/H.264
Record ModeManual, Schedule, MD
Video Detection and Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Playback and Backup
Sync Playback1ch 4K, 2ch 5.0MP, 3ch 4.0MP, 4ch 3.0MP,4ch 1080P
Search ModeChannel number / Recording type / Date
Playback FunctionDay View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup ModeFAT32 USB Device/Network
Network
Interface1 RJ-45 port (100/1000Mbps)
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP
Smart PhoneiPhone, Android
InteroperabilityONVIF 2.4
Storage
SATA2 SATA interfaces
Capacityup to 10TB
General
Power SupplyDC 12V
Consumption≤ 15 W (Without HDD)
Working Temperature-100C~ 550C
Working Humidity10 % ~ 90 %
Dimensions360X45X264mm
Weight≤ 2.0kg (Without HDD)
