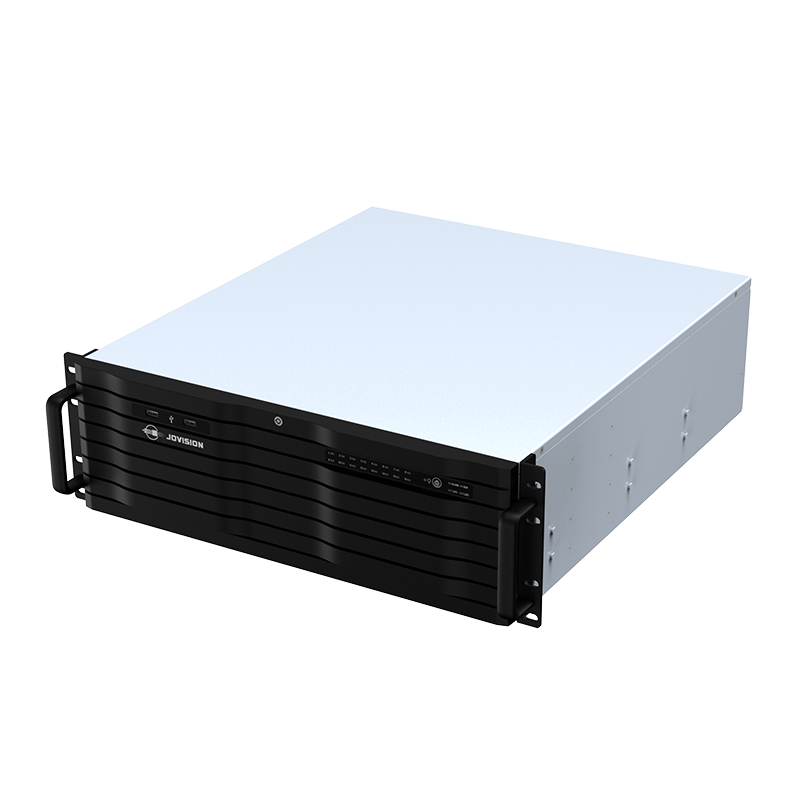

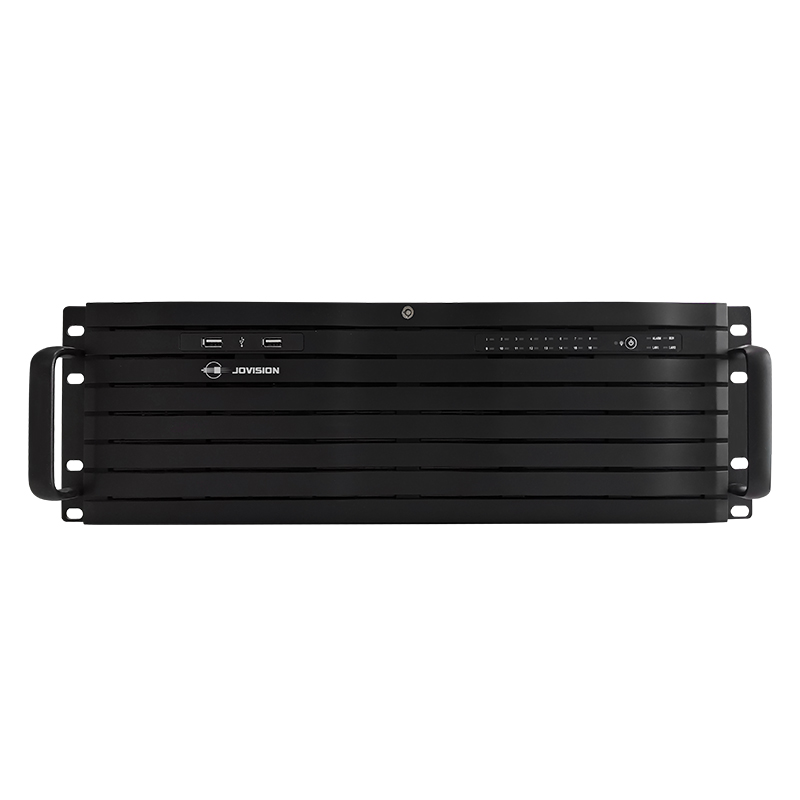

JVS-ND912816-H-XM
128CH 16HDD H.265 NVR
Message
Features
Specification
Accessories
Download

Key Features

• 4K Video Output

• Adopt the new VStar GUI, easy to operate and run smoothly

• Support intelligent coding VSmart, greatly reducing storage space

• Improved compatibility for HDD. Support 16x SATA max. of 10TB

• Support Alarm-In and Alarm-Out. 16 Input and 4 Output.

• Support RS485

• Support Intelligent Detection and Human Detection

• Support dual Network Interface, Dual HDMI and Dual VGA


Specifications
ModelJVS-ND912816-H-XM
Video & Audio
IP Camera Input128 Channel
Audio Input/ Output

1 Channel RCA Output, 1 Channel RCA Input128 Channel Audio output

 through HDMI

Display
Interface2 HDMI, 2 VGA
Video Output

HDMI: 3840x2160/ 2560x1440/ 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768

VGA: 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768
Max Decoding128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps
Multi-Screen Display1/ 4/ 5/ 6 up to 64x2
OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

 Volume, Channel Number

Recording
CompressionH.265/H.264
Resolution128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Record ModeManual, Schedule, Motion Detection
Video Detection & Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Alarm-In & Out16CH Alarm Input; 4CH Alarm Output
Playback & Backup
Sync Playback9CH 5.0MP @20fps/ 11CH 4.0MP/ 13CH 3.0MP/16CH 1080p
Search ModeChannel Number / Recording Type / Date
Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

 Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup ModeFAT32/ NTFS/ exFAT USB Device / Network

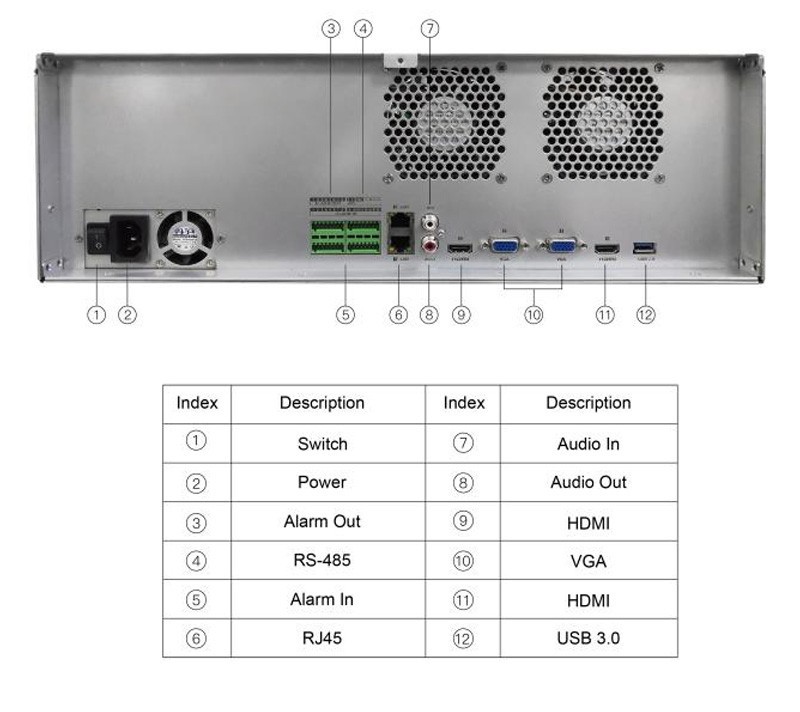

Network & Interfaces
Network Interface2x RJ45 (10/100/1000Mbps)
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart PhoneSupport iOS, Android App
InteroperabilityONVIF 2.4
PTZ InterfaceRS485
Storage
SATA16 SATA Interface
CapacityUp to 10TB
USB2x USB2.0, 1x USB3.0
General
Power Supply100~240V/ 6~3A/ 50~60HZ
Consumption≤10W (Without HDD)
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions530x144x483mm
Weight≤6.2Kg (Without HDD)
