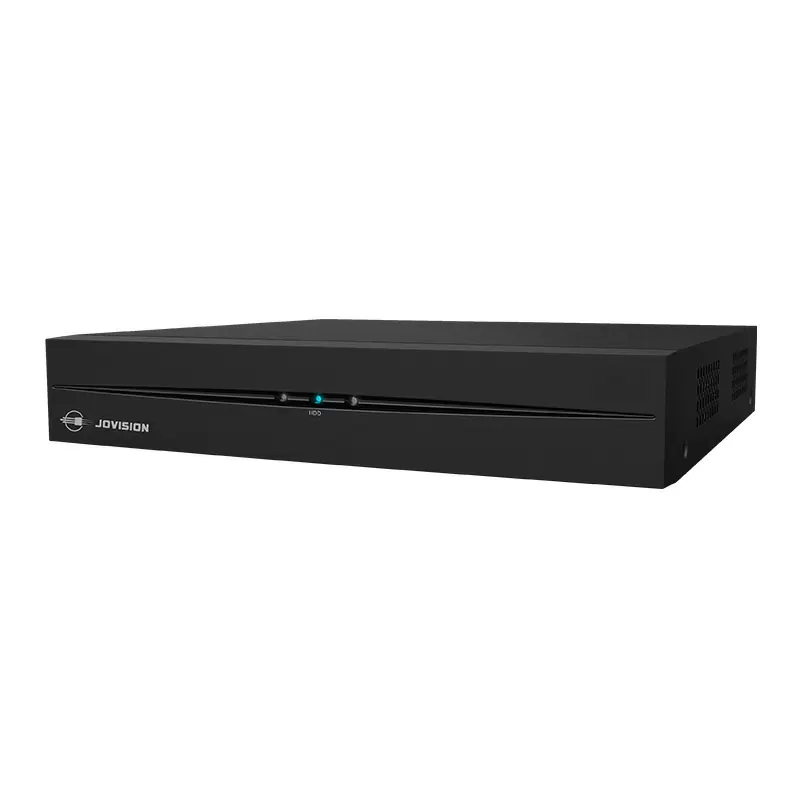

JVS-ND6606-HD
6CH H.265 NVR
Message
Features
Specification
Accessories
Download

Key Features
• Adopt the new Vstar GUI , easy to operate and run smoothly

• Support intelligent coding VSMart, greatly reducing storage space

• Improved compatibility for hard disks, and up to 10TB

• Support Intelligent Detection and Human Detection


Specifications

ModelJVS-ND6606-HD
Video & Audio
IP Camera Input6 Channel
Audio Input/ Output1 Channel 3.5mm Jack Output,6 Channel Audio output through HDMI

Bandwidth I/O

50Mbps/40Mbps

Display
Interface1 HDMI, 1 VGA
ResolutionHDMI: 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
Max Decoding6CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps
Multi-Screen Display1/ 4/ 5/ 6
OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

 Volume, Channel Number

Recording
CompressionH.265/H.264
Resolution6CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Record ModeManual, Schedule, Motion Detection
Video Detection & Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Playback & Backup
Sync Playback1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p
Search ModeChannel Number / Recording Type / Date
Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward

,Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup ModeFAT32 USB Device/ Network

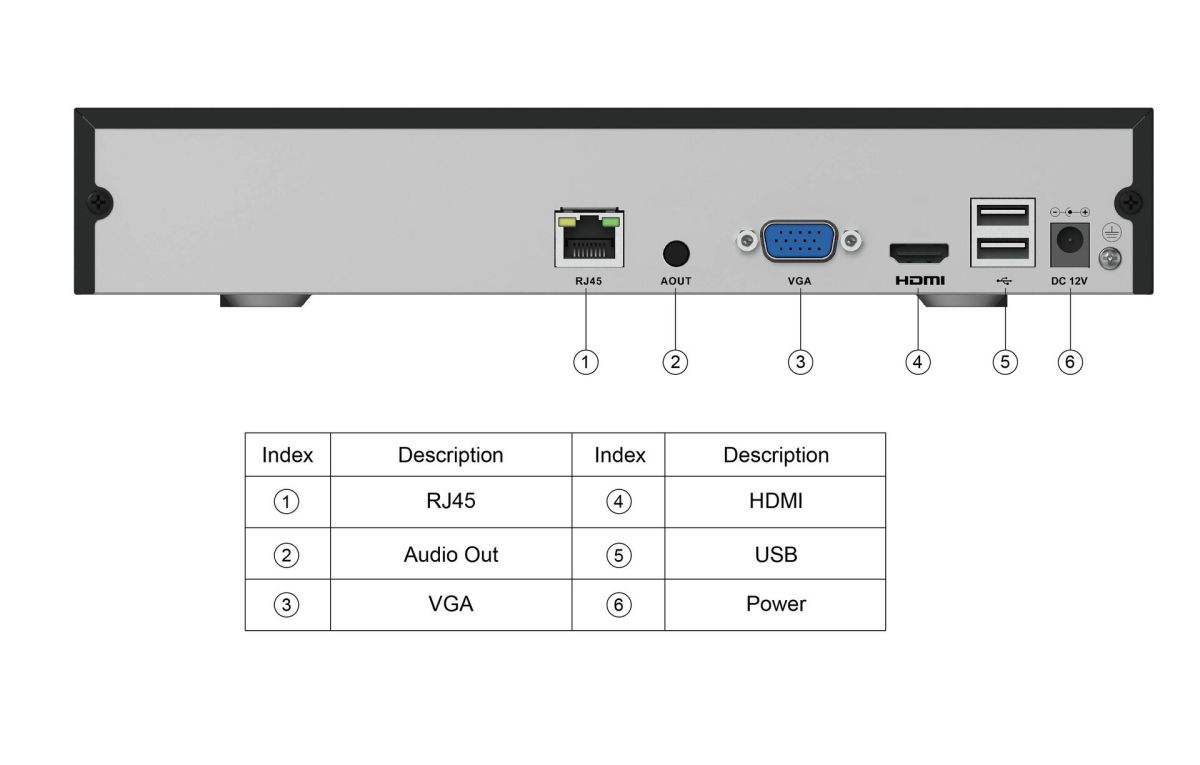

Network & Interfaces
Interface1 RJ45 Port (10/100Mbps)
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart PhoneSupport iOS, Android App
InteroperabilityONVIF 2.4
Storage
SATA1 SATA Interfaces
CapacityUp to 10TB
USB2x USB
General
Power SupplyDC 12V
Consumption≤10W (Without HDD)
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions255x41x195mm
Weight≤1.0kg (Without HDD)
