JVS-N933-KDL-PE
3MP Full-Color Audio PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2304x1296@25fps

• Light's on when people come, light's off when people leave

• Double wick, two white light, two infrared

• Support humanoid detection (Default does not mark the humanoid box)

• Built-in Microphone

• PoE

Specifications

ModelJVS-N933-KDL-PE
Video
Image Sensor1/2.9" CMOS Sensor
Max. Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.265/ H.264
Framerate25fps
Bitrate204Kbps~5Mbps
SNR (dB)52dB
Min. Illumination0Lux (Fill light ON)
Lens
Lens2.8mm, 4mm, 6mm (M12)
Fill Light2x Double wick filling lamp (Infrared/ Warm)
Fill Light DistanceUp to 30m.
Function
Exposure ControlAuto
White BalanceAuto
Image Enhancement3D DNR
Advanced OSDSupport OSD large font function, OSD flashing on alarm, OSD and time to set the position separately
Motion DetectionSupport human detection (Default does not mark the human box)
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and Night FunctionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent AnalysisNot Support
Alarm Method Email Alarm, Client Alarm
Remote OperationSystem, Audio and video, Image, Alarm,Network management
AudioBuilt-in Microphone
Network
Ethernet1x RJ45 10M / 100M Ethernet
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
InteroperabilityONVIF 2.4
Network Transmission                     CloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V/2A
Power Consumption<3W (During day); <6W (At night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
Material Plastic
Dimensions100x100x92mm
Weight170g

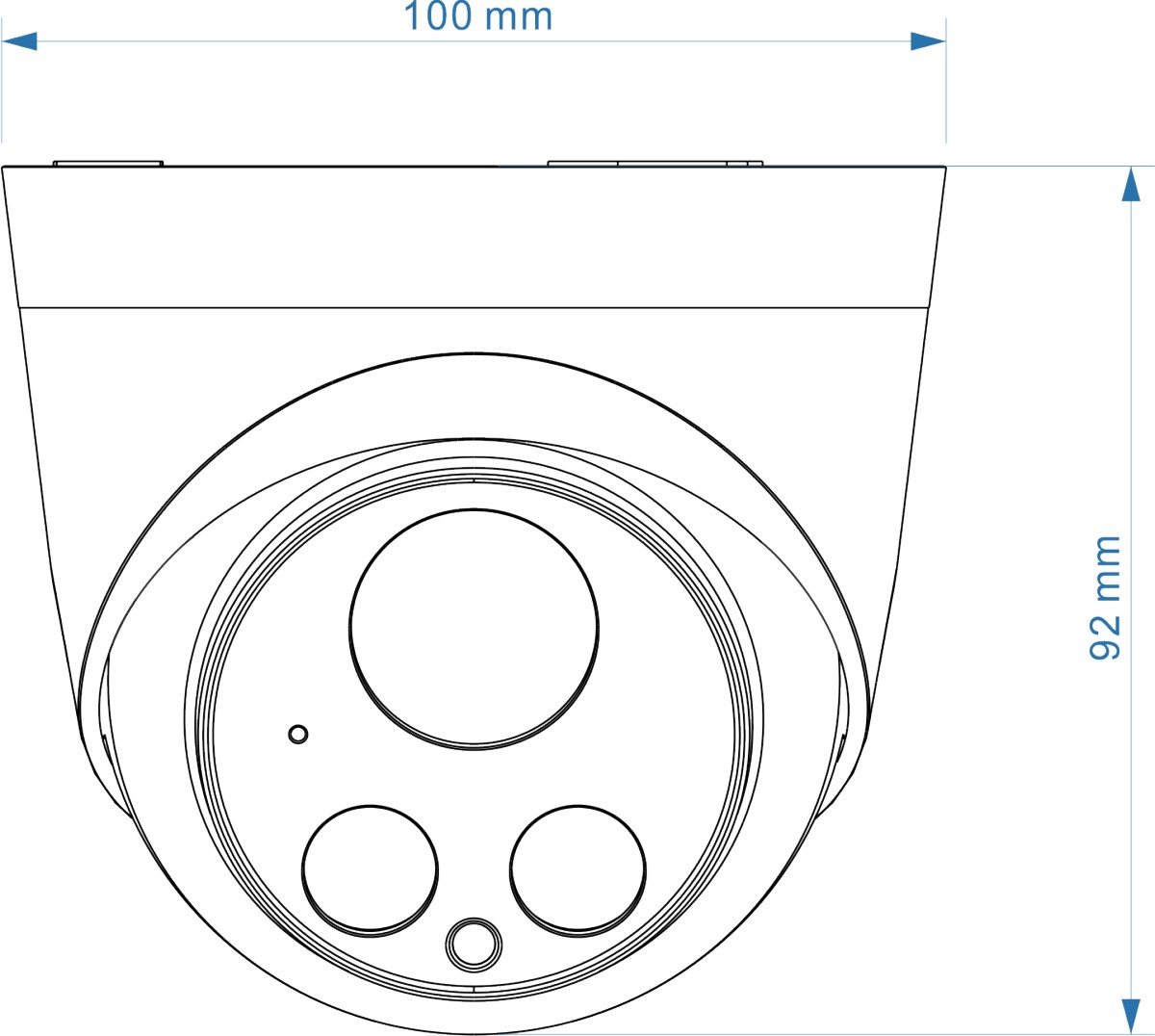

Dimension(mm)
