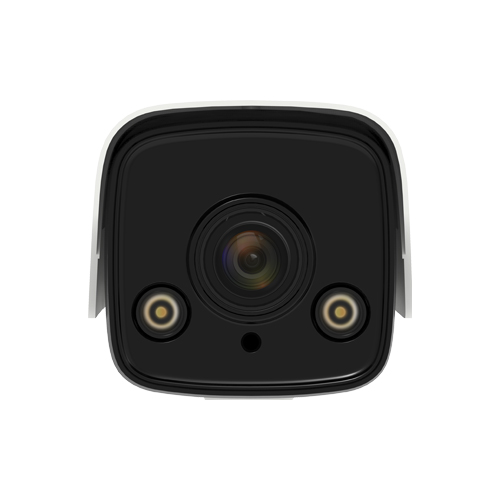

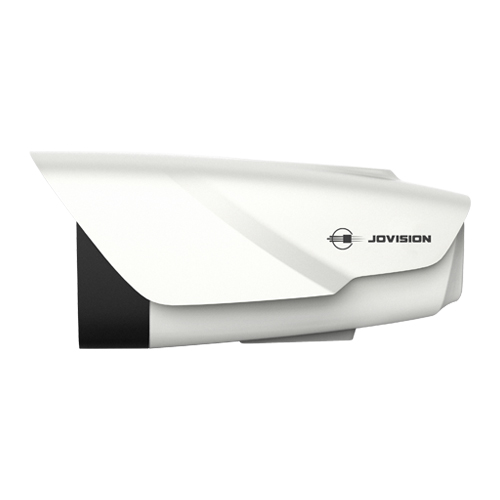

4.0MP Motorized Zoom IP Camera Specific for Monitoring Instrument Panels & Meters
JVS-N416-SCR
Message
Features
Specification
Download
Features

  • Instrument Panels & Meters Monitoring

  • Smart Dual Illumination

  • IP67 Ingress Protection

  • 2.8-12mm Motorized Zoom

  • Specific Optical Technology + Intelligence Algorithm (SOT+IA) Technologies

Specifications


Video
Image Sensor1/3'' CMOS Sensor
Max Resolution2560x1440
Effective Pixels4.0MP
Compression StandardH.264/H.265+
Framerate25fps
Bitrate

Main Stream: 256Kbps ~ 8192Kbps

Sub Stream: 68Kbps~1024Kbps

SNR (dB)50dB
Min. Illumination0Lux (light ON)
Lens
Interface TypeUnconventional Interface Type.
Lens2.8mm-12mm Motorized Zoom
FOV

Telephoto: H 17°, V 29.5°, D 33.7°

Wide Angle: H 54.7°, V 101.7°, D 121.3°

Function
Audio CodecG.711U/G.711A (Default)
Exposure ControlAuto, HLC, BLC
OSD Information SettingLarge   Font OSD, OSD Flashing on Alarm, OSD Position Settings
Schedule RebootSupport
Smart DefogSupport
Motion DetectionSupport (Humanoid)
Image SettingSupport Saturation, Brightness, Contrast, Sharpness Adjustment
Image StyleStandard, Soft, Transparent
Day and Night FunctionAuto, Always Black & White, Always Color, Scheduled   Color
Privacy MaskSupport up to 8 Areas
Electronic Screen SettingSupport Maximum and Minimum Exposure Time Setting
Night Vision OptimizationSupport
DWDRSupport
Screen SettingsScreen Mirroring, Screen Flipping
IP AdaptationSupport Automatic Adaptation IP Address (Optional)
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and Video, Image, Alarm, Network Management
Audio FunctionNot Support
SOT+IASupport
Network
Ethernet10/100Mbps Ethernet
Stream16x   Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIFStandard   ONVIF
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp   to 13 Users
AppSupport iOS/Android
General
Lights2 White LEDs + 2 IR LEDs
IR DistanceUp to 40 Meters
Waterproof LevelIP67
Power SupplyDC12V   or PoE (IEEE802.3af)
Power Consumption<3W (During Day); <6W (At Night)
Working Temperature-30℃~60℃(-22℉~140℉)
Working Humidity<93% Rh
Color/MaterialBlack & White/Front Shell Aluminum Alloy ADC12, Rear Shell PC

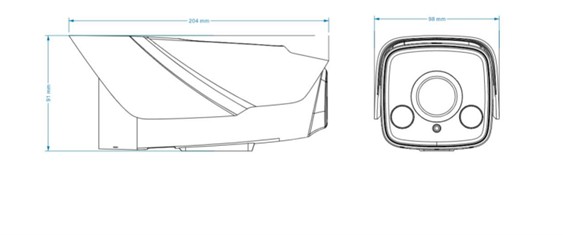

Dimensions (WxHxD)98x91x204mm
Weight500g
Installation Method

Wall or Ceiling Mount




JVS-N416-SCR 4.0MP Motorized Zoom IP Camera Specific for Monitoring Instrument Panels & Meters.pdf
