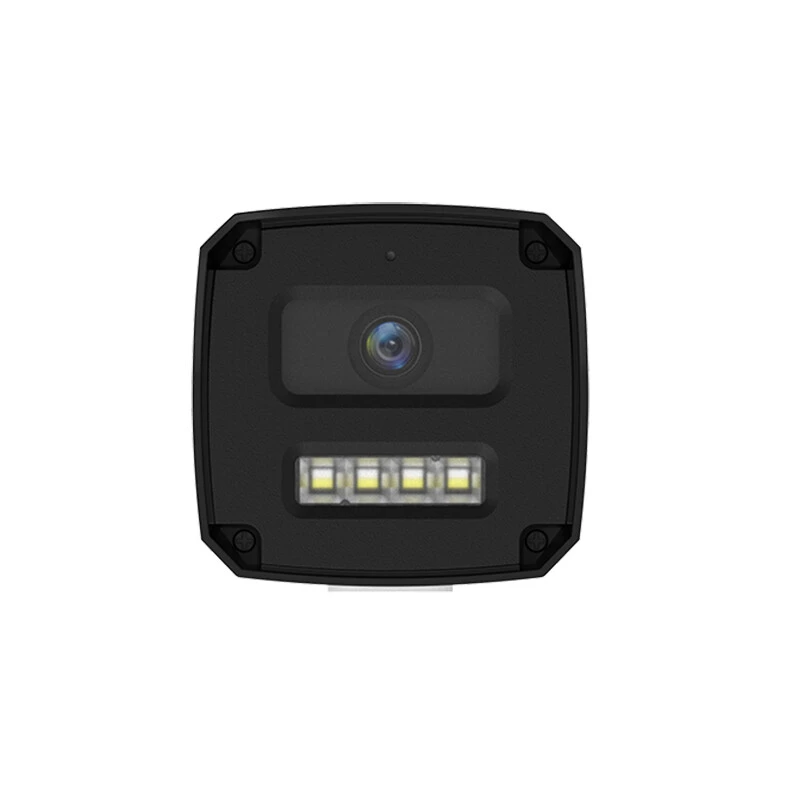

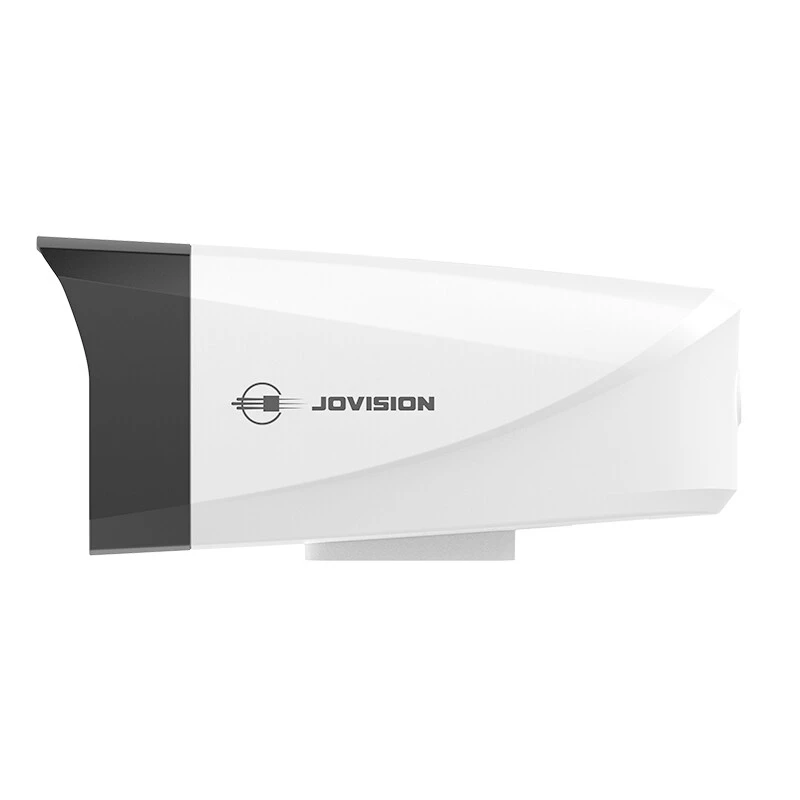

5MP Full-Color PoE IP Camera
JVS-N516-MDL
Message
Features
Specification
Accessories
Download
Features

  •  5.0 Megapixel 2880 x 1620 Resolution.

  •  Smart Dual Illumination

  •  Equipped with VQC Technology

  •  F1.6 Aperture

  •  4 x LEDS and 4x IR LEDS Support  Adaptive Dimming

  •  Built-in Mic

  •  IEEE802.3af PoE

  •  Ingress Protection IP67

  • Integrated with unique SAFE function

Specifications


Image Sensor1/2.66" Progressive CMOS
Min. IlluminationIR ON 0 Lux
Day & NightSmart Dual Illumination
Lens3.6mm
FOVH: 82.4°; V: 44.0°; D:95.9°
LEDs4 Pcs Warm LED and 4 Pcs IR LEDS
LED RangeWarm LED 30m, IR LEDS 50m
LED AdjustmentAdaptive Dimming
Max Resolution2880 x 1660  Resolution
Frame Rate25fps
Video CompressionH.265/H.264
Bit Rate (CBR/VBR)Main Stream: 256 ~ 8192KbpsSub Stream: 68 ~ 1024Kbps
Audio CompressionG.711a / G.711u
Image SettingSaturation, Brightness, Contrast, Sharpness
Image EnhancementHLC/BLC/SAFE/Defog
Privacy MaskSupport 8 Rectangle Areas
DWDRSupport
Face ModeSupport
NETWORK
Network ProtocolsHTTP, TCP/IP, UDP/IP, ICMP, RTP, UDP, RTCP, SMTP, DHCP, DNS
Interface ProtocolsStandard ONVIF, GB28181, CloudSEE
Auto IP ConfigurationSupport
Alarm TriggerMotion Detection, Region Intrusion, Line Crossing
RTSP VideoStandard RFC2326, QuickTime/VLC Player etc.
Web LanguageEnglish, Chinese
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
INTERFACE
Ethernet1 RJ45 10M / 100M Ethernet
AudioBuilt-in Mic
SD CardNot Support
Reset ButtonNot Support
GENERAL
Power SupplyDC12V/2A, PoE IEEE 802.3af
Power Consumption<3W (During day); <6W (At night)
Working Temperature-30℃~60℃(-22℉~140℉)
Working Humidity10% ~ 90% Rh Non-Condensation
Dimensions88x85x187(mm)
Product Weight≤240g
Color / MaterialFront Shell: Black & White Plastic
InstallationWall, Ceiling

JVS-N516-MDL 5MP Full Color PoE IP Camera Newest.pdf
