JVS-N819-LPR
8.0MP Motorized Zoom Full-Color Auto License Plate Recognition Network Camera
Message
Features
Specification
Accessories
Download
Features
  • Motorized Varifocal Lens (2.7-13.5mm)

  • 24/7 Full-Color with VQC Technology

  • Built-in Mic and Speaker

  • Support SD Card (Up to 512G)

  • Built-in Recognition Algorithm Support Over 50 Countries Vehicle and Standard License Plates Around the World

  • Easy to Install and Suitable for Multiple Scenarios (Entrance, Parking Lot, Sidewalk, High Pole, Low Pile, etc.)

  • More Than 95% Recognition Accuracy and Fake License Plates Recognition (Photocopy or Screenshot)

  • Supports Customized Allowlist and Blocklist

  • Supports Vehicle Access Control When Connected to Barrier

Specifications

Video
Image Sensor1/2.8" CMOS
Max Resolution3840x2160
Effective Pixels8.0MP
Compression StandardH.264/H.265+
Framerate30fps
Bitrate

Main Stream: 256Kbps ~ 4096Kbps

Sub Stream: 68Kbps~1024Kbps

Third Stream: 68Kbps~1028Kbps

SNR (dB)≥50dB
Min. Illumination0Lux (light ON)
Lens
LensMotorized Zoom Lens, 2.7mm-13.5mm
Focal lens & FOV

2.7mm-13.5mm

Horizonal FOV: 101.4°~26.9°; Vertical FOV: 53.6°~15.2°; Diagonal FOV: 118.7°~30.5°

Function
Audio CodecG.711U/G.711A (default)
Exposure ControlAuto
White BalanceAuto
Gain ControlAuto
Digital 3D Noise   ReductionSupport
OSD Information SettingBy default: The customized OSD supports a maximum of six lines, each line contains a maximum of 32 characters. One Chinese character is counted as two characters
SNTPSupport
Schedule RebootSupport
Smart DefogSupport
Smart Motion DetectionNot Support
Image SettingSupport Saturation, Brightness, Contrast, Sharpness Adjustment
Image StyleStandard, Soft, Transparent
Day and Night FunctionAuto, Always Black & White, Always Color, Scheduled Color
Privacy MaskSupport up 8 areas
Night Vision   OptimizationSupport
WDR120dB
Screen SettingsScreen mirroring, Screen flipping
IP AdaptationSupport automatic adaptation of IP address (Optional)
Intelligent   AnalysisNot Support
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis
Audio FunctionBuilt-in Mic and Speaker
SD CardSupport(512G)
Peripheral   Extension InterfaceAudio Input/Output, Alarm Input/Output
Network
Ethernet10/100Mbps Ethernet
Stream3x Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Access ProtocolStandard ONVIF, Public Cloud
Network TransmissionCloudSEE 2.0
Fusion Cloud PlatformSupport
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Lights4 Warm Light LEDs + 4 IR LEDs
IR DistanceIR: Up to 80 MetersWarm Light: Up to 60 Meters
Waterproof LevelIP67
Power SupplyDC12V/2A or PoE
Power Consumption<6W (During Day); <12W (At Night)
Working Temperature-30°C ~ +60°C
Working Humidity10% ~ 90% Rh
Color/MaterialBlack and White/Metal + Plastic

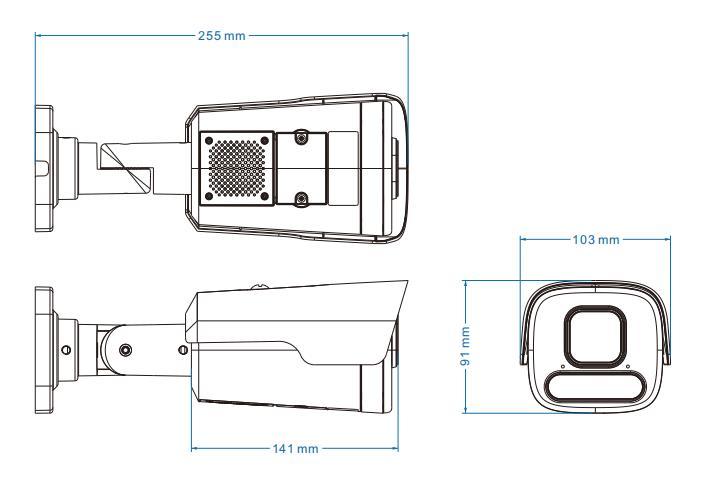

Dimensions (WxHxD)103x91x255mm
Weight732g
Installation MethodWall or Ceiling Mount
