Video & Audio |
IP Camera Input | 128 Channel |
Video Output | HDMI:4K@60Hz/ 4K@30Hz/ 2K@60Hz/ 2K@30Hz/ 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768 |
| VGA: 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768 |
Audio In & Out | Support |
| Max Decoding | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/720p |
Compression | Compression: H.265/H.264+/ H.264 |
Video Access | 128CH |
Bandwidth I/O | 500Mbps/320Mbps |
Storage |
SATA | 16 x SATA Interface |
Capacity | Up to 10TB Max. |
File Format | Log: *.txt/ Picture: *.JPG/ Video: *.mp4 |
Backup Mode | Support USB/ Portable HDD FAT32/ NTFS/ exFAT |
Raid | Raid: RAID0, RAID1, RAID5, RAID6 and RAID10 |
Video |
Video Playback | Auto/ Timing/ Alarm/ Motion Detection/ Intelligent Analysis |
Sync Playback | 4CH 12MP/9CH 5.0MP (20fps)/ 11CH 4.0MP/ 13CH 3.0MP/16CH 2.0MP |
Search Mode | Channel Number/ Recording Type/ Date |
Others | Smart Search option, Support VCA Search, Connectable to the Third-Party Network Camera |
Network |
Ethernet | 100/1000Mbps Adaptive |
Max. Remote Channels | 128 LAN/ 64 WAN |
Network Function | NTP, UPnP |
Interoperability | ONVIF Standard, CloudSEE 2.0 |
Smart Phone | iPhone, Android |

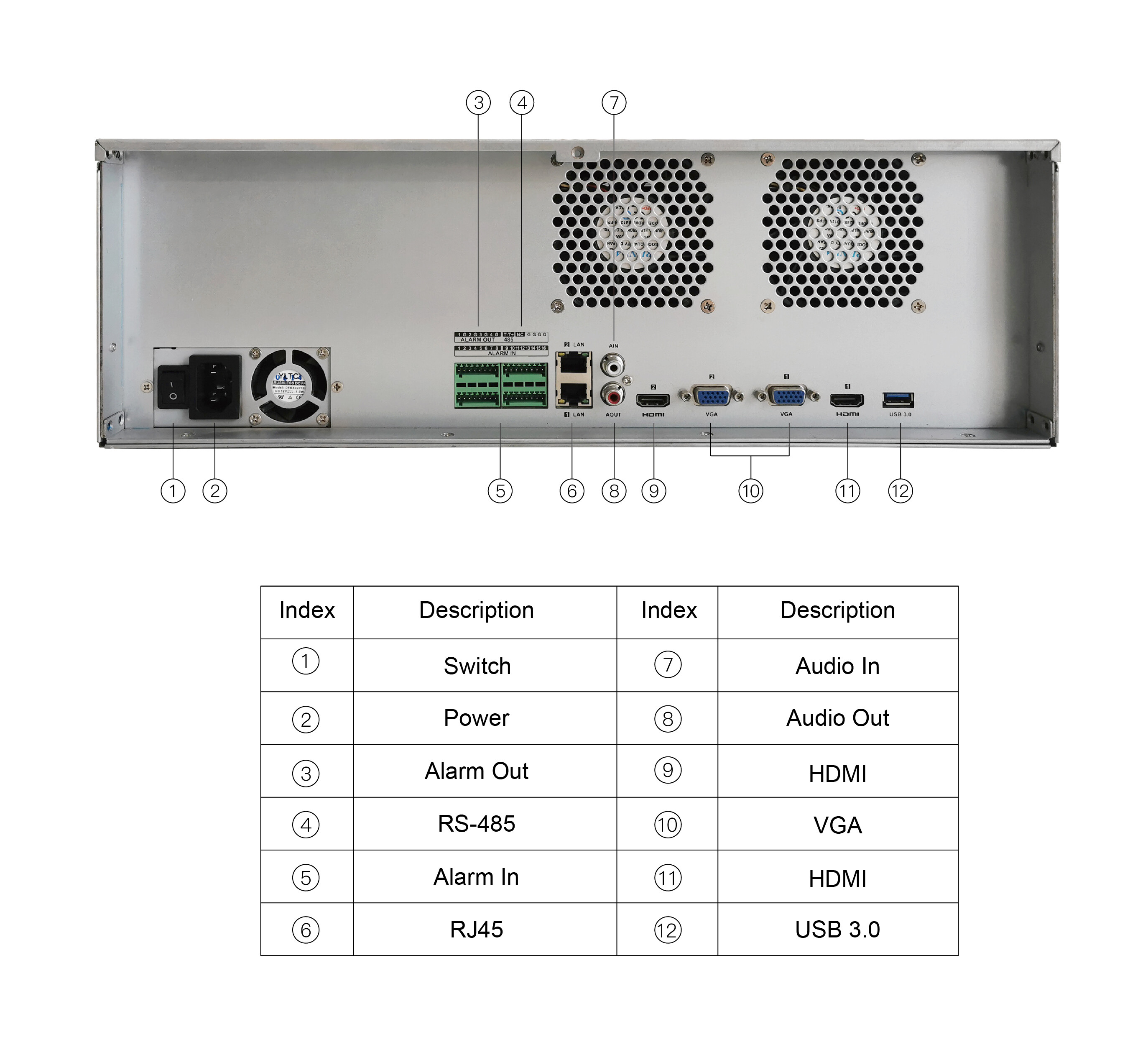

Hardware |
Network Interface | 2x RJ45 |
USB Interface | 2x USB2.0, 1xUSB3.0 |
PTZ Interface | RS485 |
Controlling Device | Mouse / Front panel |
Alarm Input | 16CH |
Alarm Output | 4CH |
Special |
Multi-Screen Display | 1/ 4/ 5/ 6 up to 64 x 2 |
Alarm Method | Email Alarm, External Alarm |
Digital Zoom | Support |
General |
Power Supply | 100-240V/6-3A/60-50HZ |
Consumption | ≤ 10 W (Without HDD) |
Working Temperature | -10°C ~ 55°C |
Working Humidity | 10% ~ 90% |
Dimensions | 530x144x483(mm) |
Weight | ≤ 6.2Kg (Without HDD) |
