JVS-N510-DS-PE

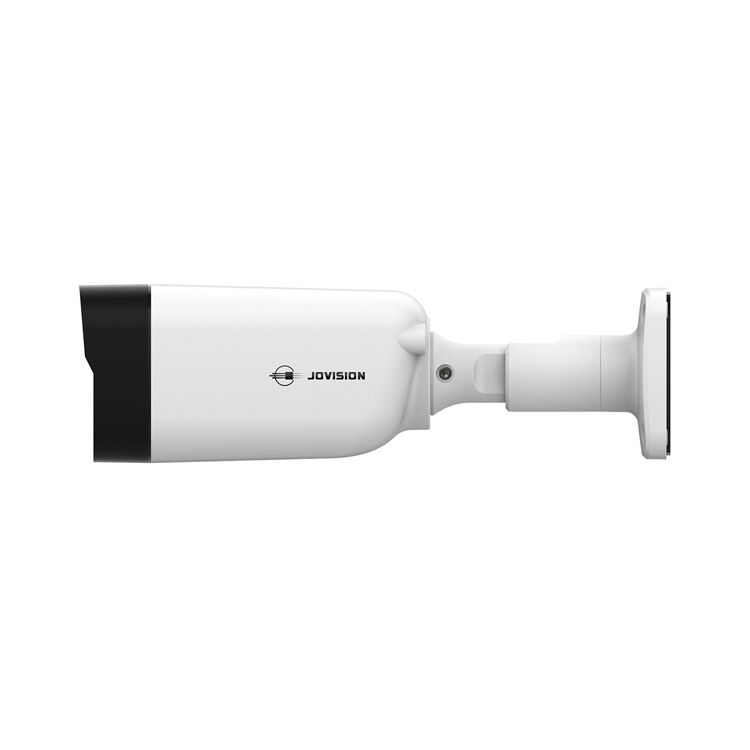

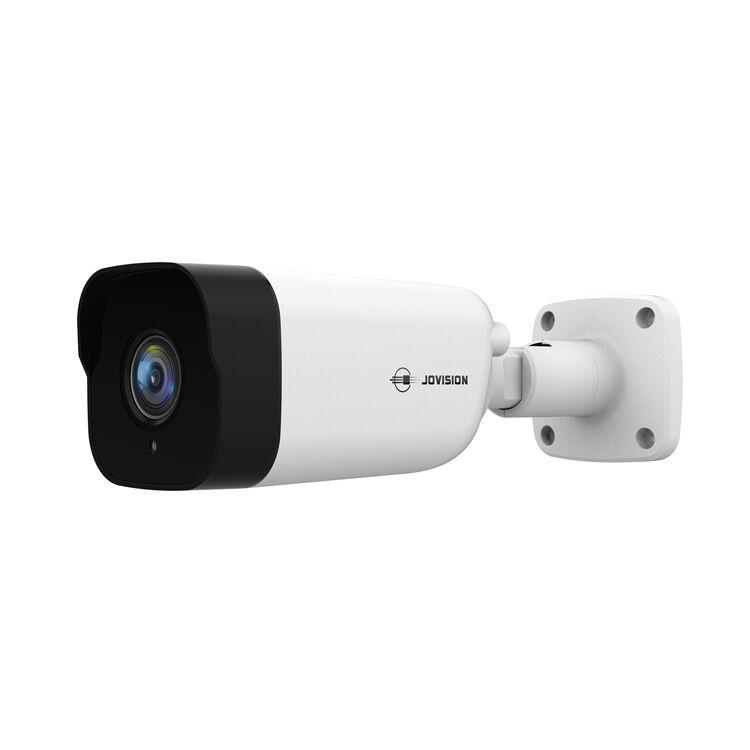

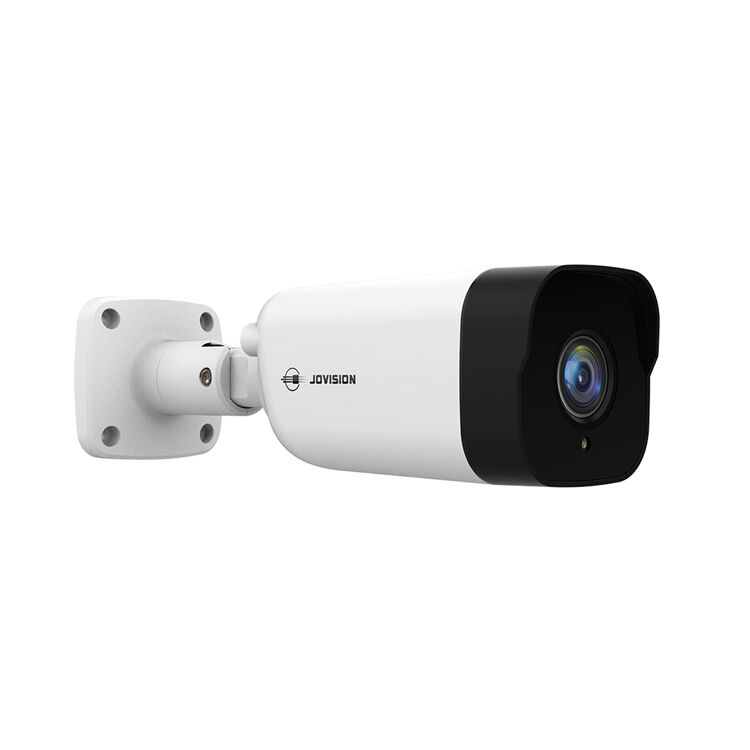

5MP Bullet Starlight PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 2560*1792@25fps

• 4 x high power IR LEDs

• With Starlight function

• With Internal PoE

• Ingress Protection IP66

Specifications
ModelJVS-N510-DS-PE
Video
Image Sensor1/3” CMOS
Max Resolution2560*1792
Effective Pixels5MP
Compression StandardH.265/H.264
Frame Rate20fps
Bit Rate272Kbps～8Mbps
SNR (dB)52dB
Min. Illumination0Lux (IR ON)
Lens
Lens4mm,M12
FOVH: 78.5°, V: 42.8° D: 92.6°
IR-LEDs28µx4 LEDs
IR-DistanceUp to 20 Meters
Function
Exposure ControlSupport
White BalanceAuto
Image EnhancementBLC/HLC/3D DNR/DWDR/Defog
Advanced OSD

Support OSD large font function, OSD and time to set the position separately

,5 lines x 32 characters

Privacy MaskSupport 8 Rectangle Areas
Motion DetectionSupport
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and night functionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent Analysis

Support Region Intrusion, Line Crossing, People Counting, Video Tampering,

 Human Detection

Alarm MethodEmail Alarm
Remote OperationSystem, Stream, Alarm, Network Management
Expansion InterfaceN/A
Network
Ethernet10M / 100M Ethernet ,1 RJ45
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, DDNS
ONVIFONVIF 2.4
Network transmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
General
Power SupplyDC12V or PoE
Power Consumption<3W (During day); <6W (At night with IR)
Working Temperature-20°C ~ 60°C
Working Humidity0% ~ 90% Rh
MaterialMetal
Dimensions (WxHxD)248x77*75mm
Weight500g
WaterproofIP66

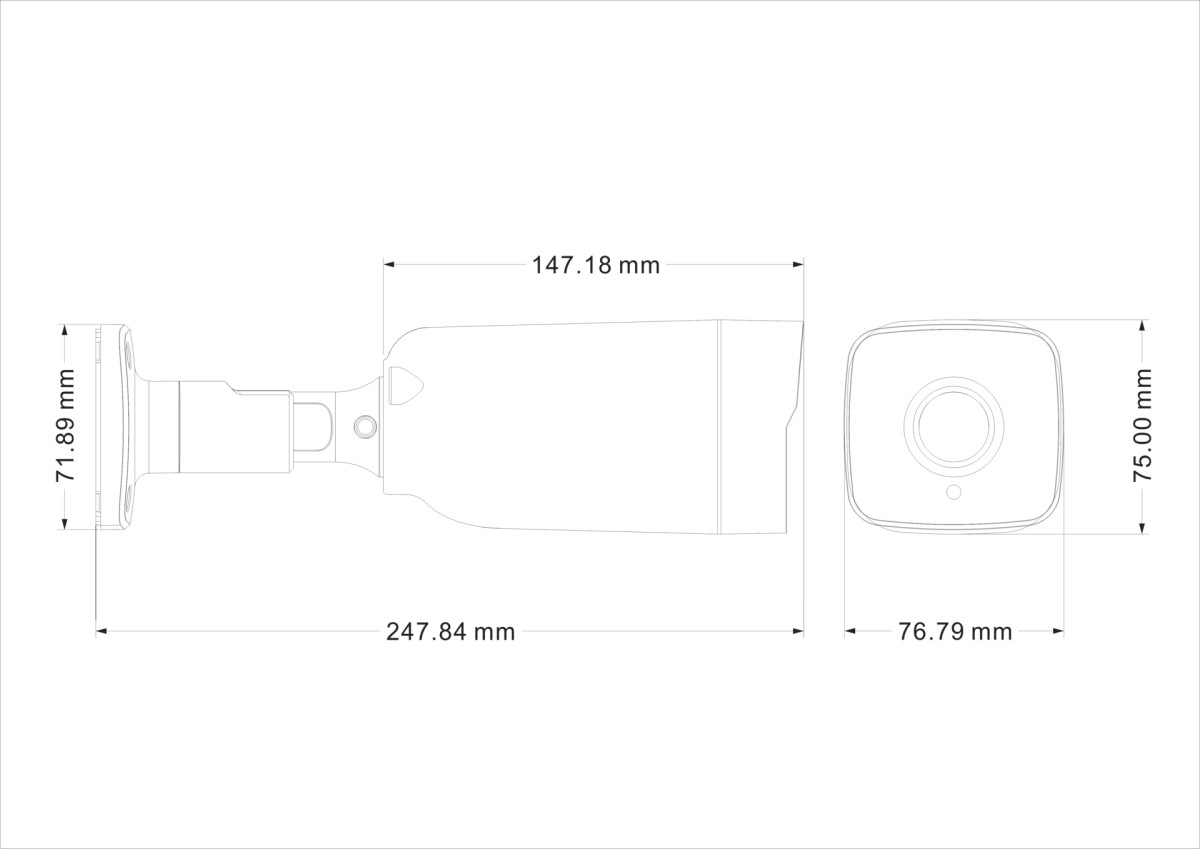

Dimension(mm)
