  • 5MP Metal Bullet IP Camera

›

5MP Metal Bullet IP Camera
JVS-N510-YWS
Message
Features
Specification
Download

Key Features

• Resolution 2592x1944@20fps

• 18x IR-LED, Up to 30 Meters

• Ingress Protection IP66

• Supports CloudSEE APP on iOS/Android

• ONVIF 2.4, Compatible with ONVIF Recorder


Specifications

ModelJVS-N510-YWS
Video
Image Sensor1/ 3” CMOS
Max Resolution2592x1944
Effective Pixels5.0MP
Compression StandardH.265
Maximum Frame Rate5.0MP@20fps
SNR(dB)38.6dB
Bit Rate 128Kbps～8Mbps
Illumination0Lux (IR ON)
Lens
Lens4mm
Viewing Angle4mm: 104°
IR-LEDs14µ x 18 LEDs
IR-DistanceUp to 30 Meters
Function
Motion DetectionSupport
Email AlertSupport
Day& NightSupport
RecordingSupport (NVR, Windows PC, Smartphone)
DHCPSupport
FTPNot Supported
Pan/TiltNot Supported
SD-CardNot Supported
Privacy MaskSupport up 4 areas
Exposure ControlSupport
Image AdjustmentSupport
Auto. White BalanceSupport
Image RotationSupport (Mirror/Flip)
Network
Ethernet10M/100M Ethernet, RJ45 Port
ProtocolsHTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream2x Streams
Wi-FiNot Supported
ONVIFONVIF 2.4
UserUp to 13 Users
BrowserIE8+, Chrome18+ ~ 42-
Smart PhoneiOS/Android
General
Dimensions(W*H*D)215x100x105mm
Weights480g
MaterialMetal
Working Temperature-30℃~60℃(-22℉~140℉)
HumidityRH 10%～90%
Power SupplyDC12V/1A, PoE IEEE 802.3af
ConsumptionDay ≦2W; Night ≦8W
WaterproofIP66

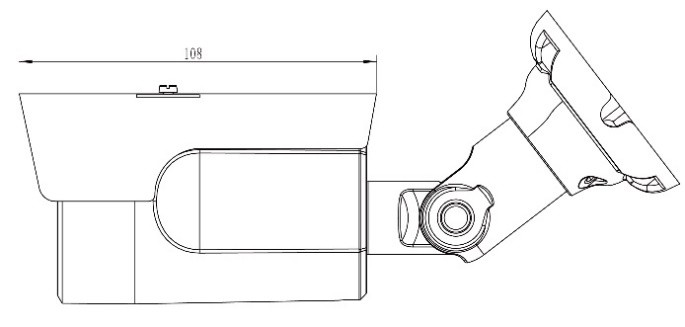

Dimensions (mm)
