5MP Bullet PoE IP Camera
JVS-N515-HY
Message
Features
Specification
Download

Key Features

• Resolution 2592x1944@20fps

• Ingress protection IP67

• 4Pcs Array IR LEDs, IR Rand up to 50m.

• Supports CloudSEE APP on iOS/Android

• ONVIF 2.4, Compatible with ONVIF Recorder


Specifications

ModelJVS-N515-HY-PE
Video
Image Sensor1/ 3” CMOS
Max Resolution2592x1944
Effective Pixels5.0MP
Compression StandardH.265
Maximum Frame Rate5.0MP@20fps
SNR(dB)56dB
Bitrate 128Kbps～8Mbps
Illumination0Lux (IR ON)
Lens
Lens4mm
Viewing AngleH: 88.4°; V: 47°; D: 105.2°
IR-LEDs4Pcs Array IR LEDs
IR-DistanceUp to 50 Meters
Function
Motion DetectionSupport
Email AlertSupport
Day& NightSupport
RecordingSupport (NVR, Windows PC, Smartphone)
DHCPSupport
FTPNot Supported
Pan/TiltNot Supported
SD-CardNot Supported
Privacy MaskSupport up 8 areas
Exposure ControlSupport
Image AdjustmentSupport
Auto. White BalanceSupport
Image RotationSupport (Mirror/Flip)
Network
Ethernet10M/100M Ethernet, RJ45 Port
ProtocolsHTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream2x Streams
Wi-FiNot Supported
LANSupport
ONVIFONVIF 2.4
UserUp to 13 Users
BrowserIE8+, Chrome18+ ~ 42-
Smart PhoneiOS/Android
General
Dimensions(W*H*D)201x96x88 mm
Weights530g
MaterialAluminum for black part and plastic for white part
Working Temperature-20°C～60°C
HumidityRH 10%～90%
Power SupplyDC12V/1A, PoE (IEEE 802.3af)
ConsumptionDay ≦3W  Night ≦8W
WaterproofIP67

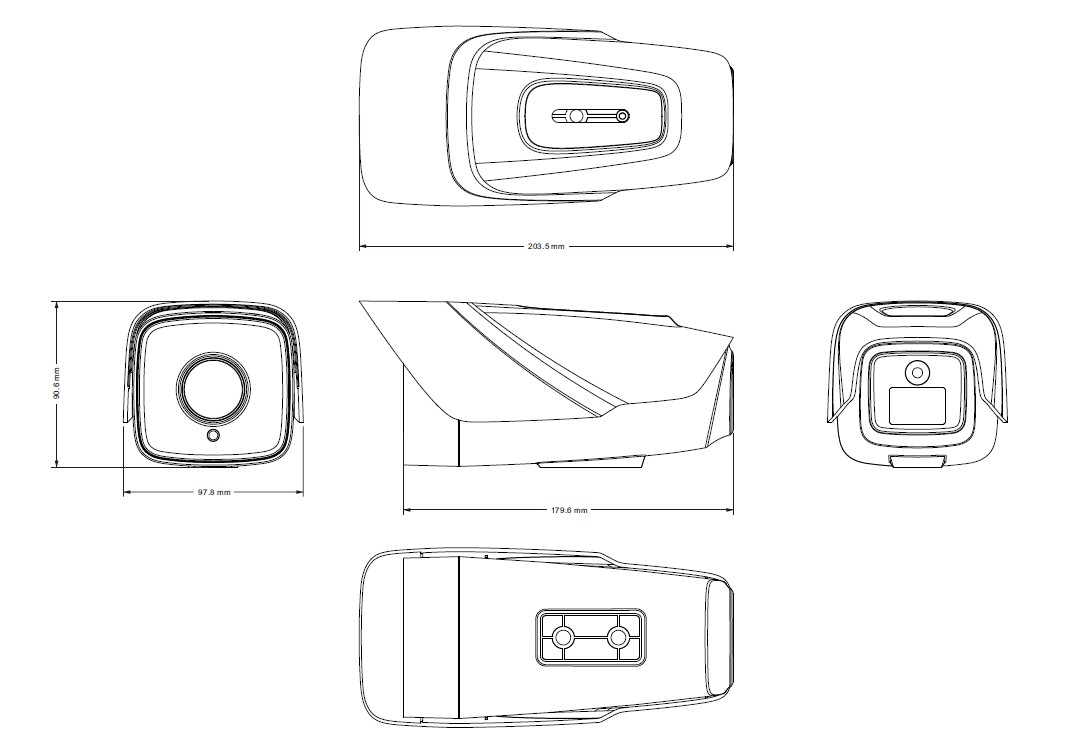

Dimensions (mm)

JVS-N515-HY
