| Video |
| Image Sensor | 1/ 2.8” CMOS |
| Max Resolution | 2592x1944 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.265 / H.264 |
| Maximum Frame Rate | 2592x1944@25fps |
| SNR(dB) | 52dB |
| Bit Rate | 256Kbps～8Mbps |
| Illumination | 0Lux (IR ON) |
| Lens |
| Lens | 3.6mm |
| Viewing Angle | H: 78.5°, V: 42.8°, D:92.6° |
| IR-LEDs | 4x IR-LED + 4x Warm-LED |
| IR-Distance | Up to 30 Meters |
| Function |
| Motion Detection | Support |
| Email Alert | Support |
| Day& Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| FTP | Not Supported |
| Pan/Tilt | Not Supported |
| SD-Card | Not Supported |
| Privacy Mask | Support up to 8 areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
| Network |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2x Streams |
| Wi-Fi | Not Supported |
| LAN | Support |
| ONVIF | ONVIF 2.4 |
| User | Up to 13 Users |
| Browser | IE8+, Chrome18+ ~ 42- |
| Smart Phone | iOS/Android |
| General |

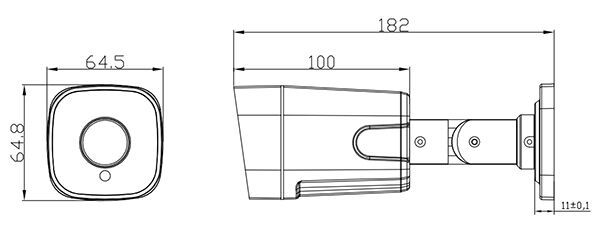

| Dimensions(WxHxD) | 182x65x65mm |
| Weights | ≤460g |
| Material | Metal |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V, PoE |
| Consumption | Day ≦3W Night ≦ 6W |
| Waterproof | IP66 |
