JVS-N517-SDL
5.0MP Full-Color Video & Audio PoE Network Camera
Message
Features
Specification
Accessories
Download

Key Features

• Light indicator for network status(This feature is limited to non-PoE models)

• Spotlight on motion detection

• Full-Color with Dual Smart Illumination

• Support Humanoid Detection

• Built-in Mic and Speaker

• With built-in PoE

• Equipped With unique VQC (Video Quality Catalyst) Technology

• Support SD Card







Specifications
Video
Image Sensor1/3" CMOS Sensor
Max Resolution2560x1792
Effective Pixels5.0MP
Compression StandardH.264/H.265
Framerate25fps
BitrateMain Stream: 317Kbps ~ 8MbpsSub Stream: 68Kbps~2728Kbps
SNR (dB)52dB
Min. Illumination0Lux (light ON)
Lens
Interface TypeM12
Lens3.6mm, 6mm
FOV3.6mm:H 80°, V 41.1°, D 94.6°6mm:H 49.7°, V 26.6°, D 57.3°
Function
Audio CodecG.711U/G.711A (default)
Exposure ControlAuto
White BalanceAuto
Gain ControlAuto
Digital 3D Noise Reduction             Support
OSD Information SettingLarge font OSD, OSD flashing on alarm, OSD position settings
SNTPSupport
Schedule RebootSupport
Smart DefogSupport
Motion DetectionSupport Humanoid Detection
Image SettingSupport Saturation, Brightness, Contrast, Sharpness adjustment
Image StyleStandard, Soft, Transparent
Day and Night FunctionAuto, Always Black & White, Always Color, Scheduled Color
Privacy MaskSupport up 8 areas
Night Vision OptimizationSupport
DWDRSupport
Screen SettingsScreen mirroring, Screen flipping
IP AdaptationSupport automatic adaptation of IP address (Optional)
Intelligent Analysis

Support Region Intrusion Detection, Line Crossing Detection, Video Blocking Detection,

People Counting

Alarm MethodEmail Alarm, Client Alarm
Remote Operation

System, Audio and Video, Image, Alarm, Network management, Storage management,

Intelligent Analysis

Audio FunctionBuilt-in Mic and Speaker
SD CardSupport
VQC TechnologySupport
Network
Ethernet10/100Mbps Ethernet
Stream2x Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIFStandard ONVIF
Network TransmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Lights4 White LEDs + 4 IR LEDs
IR DistanceUp to 50 Meters
Waterproof LevelIP67
Power SupplyDC12V or PoE (IEEE802.3af)
Power Consumption<3W (During Day); <6W (At Night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
Color/MaterialBlack and White/Plastic
Dimensions (WxHxD)95x95x175mm
Weight290g
Installation MethodWall or ceiling mount (Bracket Optional)

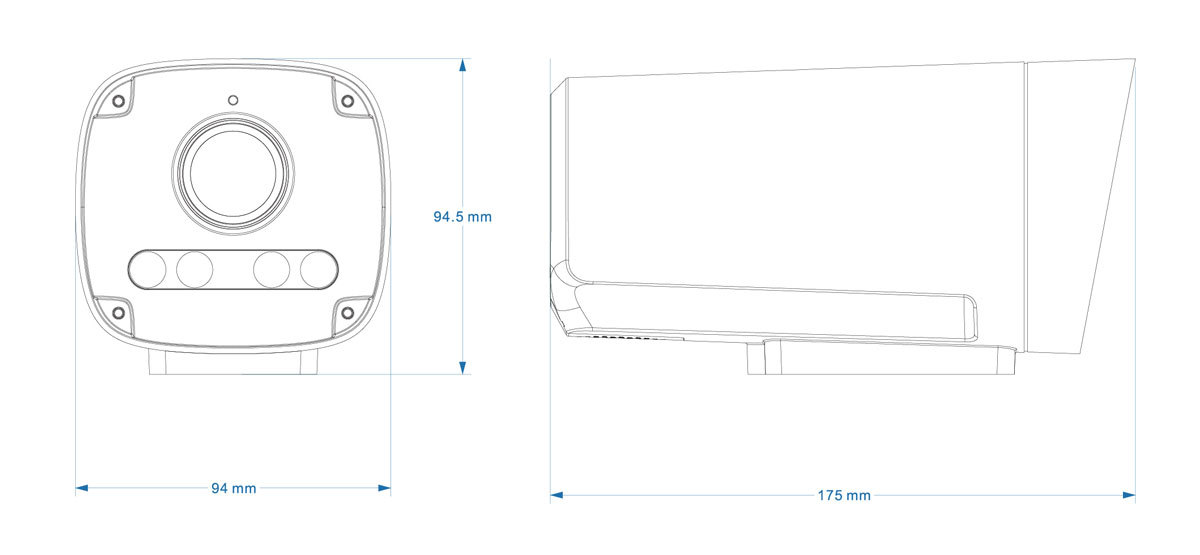

Dimensions (mm)
