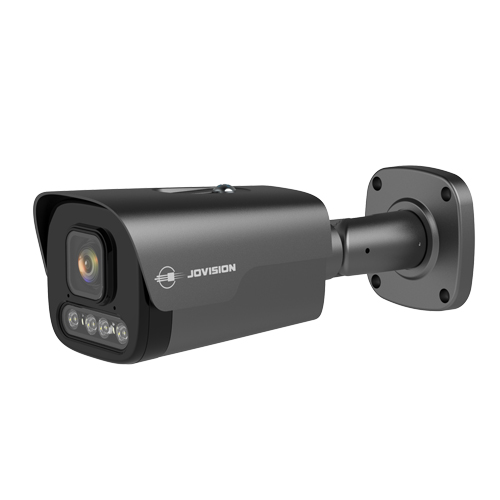

JVS-N518-ZDL
5.0MP Motorized Zoom Full-Color Video & Audio AI PoE Network Camera
Message
Features
Specification
Accessories
Download

Features

  • Motorized Varifocal Lens (2.7-13.5mm) for easy installation and monitoring

  • 24/7 Full-Color with Dual Smart Illumination

  • Human, Vehicle, and Pet Detection, Leave Detection, Road Occupation Detection based on AgiSense Technology

  • Built-in Mic and Speaker

  • IEEE802.3af PoE

  • With VQC Technology

  • Support SD Card (Up to 512GB)

Specifications
Video
Image Sensor1/3" CMOS
Max Resolution2560x1792
Effective Pixels5.0MP
Compression StandardH.264/H.265+
Framerate30fps
BitrateMain Stream: 256Kbps ~ 4096Kbps; Sub Stream: 68Kbps~1024Kbps; Third Stream: 68Kbps~1028Kbps
SNR (dB)≥50dB
Min. Illumination0Lux   (light ON)
Lens
LensVarifocal Lens, Motorized Lens, 2.7mm-13.5mm
Focal lens & FOV

2.7mm-13.5mm

Horizonal: 101.4° to 26.9°; Vertical: 53.6° to 15.2°; Diagonal: 118.7° to 30.5°

Function
Audio CodecG.711U/G.711A (default)
Exposure ControlAuto
White BalanceAuto
Gain ControlAuto
Digital 3D Noise   ReductionSupport
OSD Information SettingBy default: The customized OSD supports a maximum of six lines, each line contains a maximum of 32 characters. One Chinese character is counted as two characters
SNTPSupport
Schedule RebootSupport
Smart DefogSupport
Smart Motion DetectionSupport (Human, Vehicle, Pet)
Image SettingSupport Saturation, Brightness, Contrast, Sharpness   adjustment
Image StyleStandard, Soft, Transparent
Day and Night FunctionAuto, Always Black & White, Always Color, Scheduled   Color
Privacy MaskSupport up 8 areas
Night Vision OptimizationSupport
WDR120dB
Screen SettingsScreen mirroring, Screen flipping
IP AdaptationSupport automatic adaptation of IP address (Optional)
Intelligent   AnalysisSupport Leave Detection, Road Occupation Detection
Alarm MethodEmail Alarm, Client Alarm
Remote OperationSystem, Audio and Video, Image, Alarm, Network management,   Storage management, Intelligent Analysis
Audio FunctionBuilt-in Mic and Speaker
SD CardSupport(512GB)
Peripheral InterfaceAudio Input/Output, Alarm Input/Output
Network
Ethernet10/100Mbps Ethernet
Stream3x   Streams
Network ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Access ProtocolStandard   ONVIF, Public Cloud
Network TransmissionCloudSEE 2.0
Fusion Cloud   PlatformSupport
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Lights4 Warm Light LEDs + 4 IR LEDs
IR DistanceIR: Up to 80 MetersWarm Light: Up to 60 Meters
Waterproof LevelIP67
Power SupplyDC12V/2A or PoE
Power Consumption<6W   (During Day); <12W (At Night)
Working Temperature-30°C ~ +60°C
Working Humidity10% ~ 90% Rh
Color/MaterialBlack and White / Metal+Plastic
Dimensions (WxHxD)103x91x255mm
Weight732g
Installation MethodWall or Ceiling Mount
