5.0MP Full Color PoE IP Camera (ColorNext Pro Series)

›

‹

  • 5.0MP Full Color PoE IP Camera (ColorNext Pro Series)

›

5.0MP Full Color PoE IP Camera (ColorNext Pro Series)
JVS-N519-PWL
Message
Features
Specification
Download

Features

  • 5.0 Megapixel 2560x1792 Resolution.

  • Full Color Night Vision.

  • Equipped with VQC Technology.

  • F1.0 Aperture.

  • 18x LEDs and Support Adaptive Dimming.

  • Built-in Mic and Speaker.

  • IEEE802.3af PoE.

  • Ingress Protection IP67.

Specifications


CAMERA
Image Sensor1/1.79" Progressive CMOS
Min. IlluminationIR ON 0 Lux
Day & NightIR cut filter with auto switch
Lens3.6mm
FOV

H: 88.9°; V: 47.3°; D:103.7°

LEDs18 Pcs Warm LED
LED RangeUp to 65m
LED AdjustmentAdaptive Dimming
Max Resolution2560x1792
Frame Rate25fps
Video CompressionH.265/H.264
Bit Rate (CBR/VBR)

Main Stream: 256 ~ 8192Kbps

Sub Stream: 68 ~ 1024Kbps

Audio CompressionG.711a / G.711u
Image SettingSaturation, Brightness, Contrast, Sharpness
Image EnhancementBLC/HLC/3D DNR/Defog
White BalanceAuto
Privacy MaskSupport 8 Rectangle Areas
DWDRSupport
NETWORK
Network ProtocolsHTTP, TCP/IP, UDP/IP, ICMP, RTP, UDP, RTCP, SMTP, DHCP, DNS
Interface ProtocolsStandard ONVIF, GB28181, CloudSEE
Auto IP ConfigurationSupport
Alarm TriggerMotion Detection, Region Intrusion, Line Crossing
RTSP VideoStandard RFC2326, QuickTime/VLC Player etc.
SecurityUser security authentication, Reset, Hardware Watch Dog
Web LanguageChinese, English
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
INTERFACE
Ethernet1 RJ45 10M / 100M Ethernet
AudioBuilt-in Mic and Speaker
SD CardNot Support
Reset ButtonNot Support
GENERAL
Power SupplyDC12V/2A, PoE IEEE 802.3af
Power Consumption<3W (During day); <13W (At night)
Working Temperature-30℃~60℃(-22℉~140℉)
Working Humidity10% ~ 90% Rh Non-Condensation

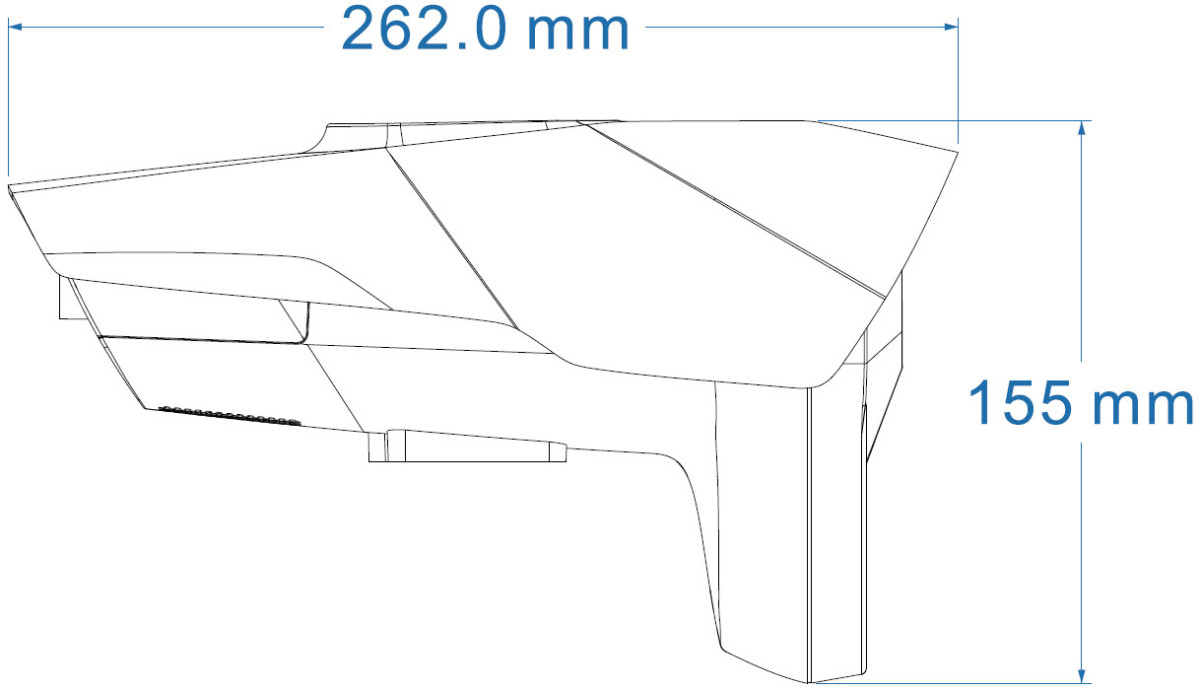

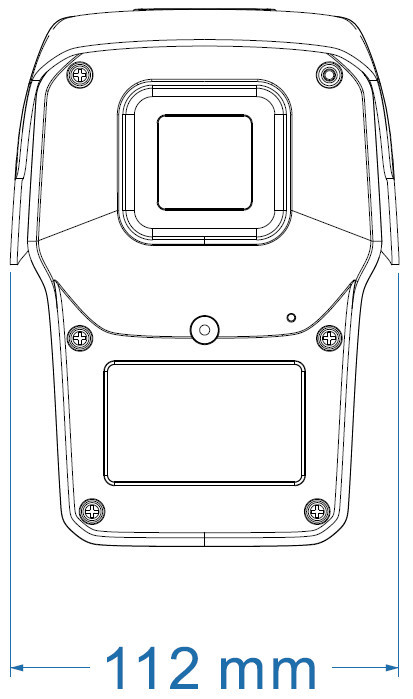

Dimensions262x112x155(mm)
Product Weight≤700g
Color / MaterialFront Shell: Black ADC12; Rear Shell: White PC
InstallationWall, Ceiling

5.0MP Full Color PoE IP Camera (ColorNext Pro Series)

5.0MP Full Color PoE IP Camera (ColorNext Pro Series)

5.0MP Full Color PoE IP Camera (ColorNext Pro Series)

JVS-N519-PWL 5MP Full Color PoE IP Camera (ColorNext Pro Series).pdf


Product Advantages

5.0MP Full Color PoE IP Camera (ColorNext Pro Series)
