JVS-N813-K1
2MP Starlight IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Resolution 1920x1080@25fps

• 4 high power IR LEDs

• SNE3.0 night vision adjustment black technology

• Support OSD large font function, can adjust OSD fonts;

• Support OSD to set the location separately from time;

• Support ROI region of interest to enhance coding, enhance the exposure of the region of interest;

• Support video adjustment, screen flip, screen image, fill light brightness self-adjustment, software wide dynamic function;

Specifications

ModelJVS-N813-K1
Video
Image Sensor1/2.9” CMOS
Max Resolution1920 x 1080
Effective Pixels2.0MP
Compression StandardH.265/H.264
Maximum Frame Rate1080p@25fps
SNR(dB)52dB
Bit Rate 204Kbps~8Mbps
Illumination0Lux (LED ON)
Lens
Lens4mm,M12
Viewing Angle93.4°
IR-LEDs4x high power LEDs
IR-DistanceUp to 20 Meters
Function
Motion DetectionSupport
Email AlertSupport
Day& NightSupport
RecordingSupport (NVR, Windows PC, Smartphone)
DHCPSupport
Advanced OSDSupport OSD large font function, OSD and time to set the position separately,
5 lines x 32 characters
Behavior analysisRegional intrusion, traffic statistics, video occlusion
Day and night functionDay and night automatic switching
Privacy MaskSupport up 8 areas
Exposure ControlSupport
Image AdjustmentSupport
Auto. White BalanceSupport
Image RotationSupport (Mirror/Flip)
LED brightnessAutomatic adjustment
Network
Ethernet10M/100M Ethernet, RJ45 Port
ProtocolsHTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS,DDNS
Stream2x Streams
LANSupport
ONVIFONVIF 2.4
UserUp to 13 Users
BrowserIE8+,Chrome18+,Firefox5.0+,Safari5.02+
Smart PhoneiOS/Android
General
Dimensions(W*H*D)178x88x85.7(mm)
Weights400g
MaterialPlastic
Working Temperature-20°C~60°C
HumidityRH 10%~90%
Power SupplyDC12V/1.5A, PoE (IEEE 802.3af)
ConsumptionDay ≦3W  Night ≦12W
WaterproofIP67

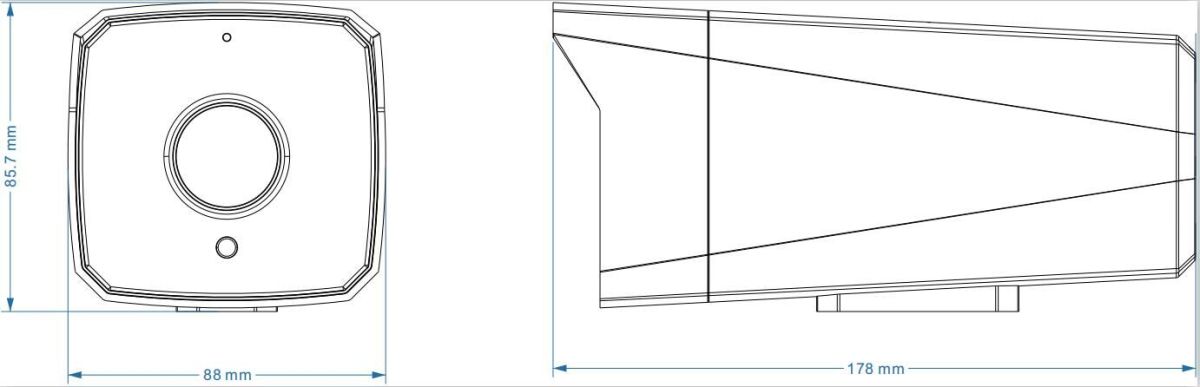

Dimensions (mm)
