3MP Bullet IP Camera

›

‹

  • 3MP Bullet IP Camera

›

3MP Bullet IP Camera
JVS-N913-YWC
Message
Features
Specification
Download

Key Features

• Resolution 2304x1296@25fps

• Ingress Protection IP66

• 18x IR-LED, Up to 25 Meters

• With Starlight Function



Specifications
ModelJVS-N913-YWC
Video
Image Sensor1/ 2.9” CMOS
Max Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.265 / H.264
Maximum Frame Rate2304x1296@25fps
SNR(dB)52dB
Bit Rate 256Kbps～8Mbps
Illumination0Lux (IR ON)
Lens
Lens4mm
Viewing AngleH: 78.5°, V: 42.8°, D:92.6°
IR-LEDs

14µ x 18 LEDs

IR-DistanceUp to 25 Meters
Function
Motion DetectionSupport
Email AlertSupport
Day& NightSupport
RecordingSupport (NVR, Windows PC, Smartphone)
DHCPSupport
FTPNot Supported
Pan/TiltNot Supported
SD-CardNot Supported
Privacy MaskSupport up to 8 areas
Exposure ControlSupport
Image AdjustmentSupport
Auto. White BalanceSupport
Image RotationSupport (Mirror/Flip)
Network
Ethernet10M/100M Ethernet, RJ45 Port
ProtocolsHTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream2x Streams
Wi-FiNot Supported
LANSupport
ONVIFONVIF 2.4
UserUp to 13 Users
BrowserIE8+, Chrome18+ ~ 42-
Smart PhoneiOS/Android
General
Dimensions(W*H*D)Φ70*165.1mm
Weights230g
MaterialPlastic
Working Temperature-20°C～60°C
HumidityRH 10%～90%
Power SupplyDC12V
ConsumptionDay ≦3W Night ≦ 6W
WaterproofIP66

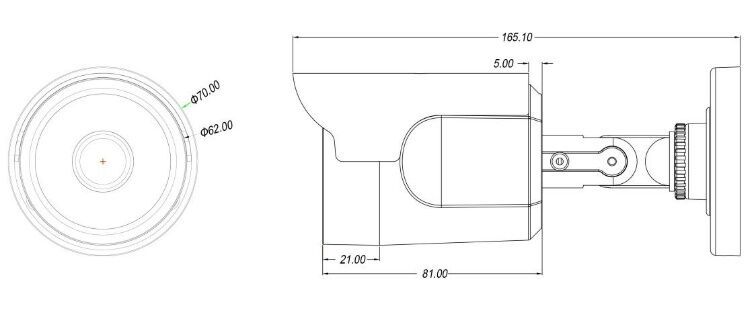

Dimensions (mm)



JVS-N913-YWC 3MP Bullet IP Camera.pdf
