  • JVS-N916-KDL-PE

›

JVS-N916-KDL-PE
3MP Full-Color Audio PoE IP Camera
Message
Features
Specification
Accessories
Download

Key Features

• Light's on when people come, light's off when people leave

• Double wick, four white light, four infrared

• Support humanoid detection (default does not mark the humanoid box)

• Built-in MIC

• POE optional

Specifications
ModelJVS-N916-KDL-PE
Video
Image Sensor1/2.9" CMOS Sensor
Max Resolution2304x1296
Effective Pixels3.0MP
Compression StandardH.265/H.264
Frame Rate25fps
Bit Rate204Kbps~5Mbps
SNR (dB)52dB
Min. Illumination0Lux (fill light ON)
Lens
Lens4mm,8mm (M12)
Fill light4x double wick filling lamp (infrared/warm)
Fill light distanceUp to 40 Meters
Function
Exposure ControlAuto
White BalanceAuto
Gain controlAuto
Image Enhancement3D DNR
Advanced OSD

Support OSD large font function, OSD flashing on alarm, OSD and time to

 set the position separately

Motion DetectionSupport human detection (default does not mark the human box)
Image SettingRotate, Saturation, Brightness, Contrast, Sharpness
Day and night functionDay and night automatic switching
Privacy MaskSupport up 8 areas
Intelligent AnalysisNot Support
Alarm Method Email Alarm,Client Alarm
Remote OperationSystem , Audio and video , Image , Alarm , Network management
Expansion InterfaceBuilt-in MIC
Network
Ethernet10M / 100M Ethernet ,1 RJ45
Stream2x Streams
ProtocolsHTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIFstandard ONVIF
Network transmissionCloudSEE 2.0
BrowserIE8+, Chrome18+, Firefox5.0+, Safari5.02+
UserUp to 13 Users
AppSupport iOS/Android
General
Power SupplyDC12V/2A
Power Consumption<3W (During day); <6W (At night)
Working Temperature-20°C ~ 60°C
Working Humidity10% ~ 90% Rh
Material Plastic
Dimensions (WxHxD)178*85*85(mm)
Weight440g
WaterproofIP67

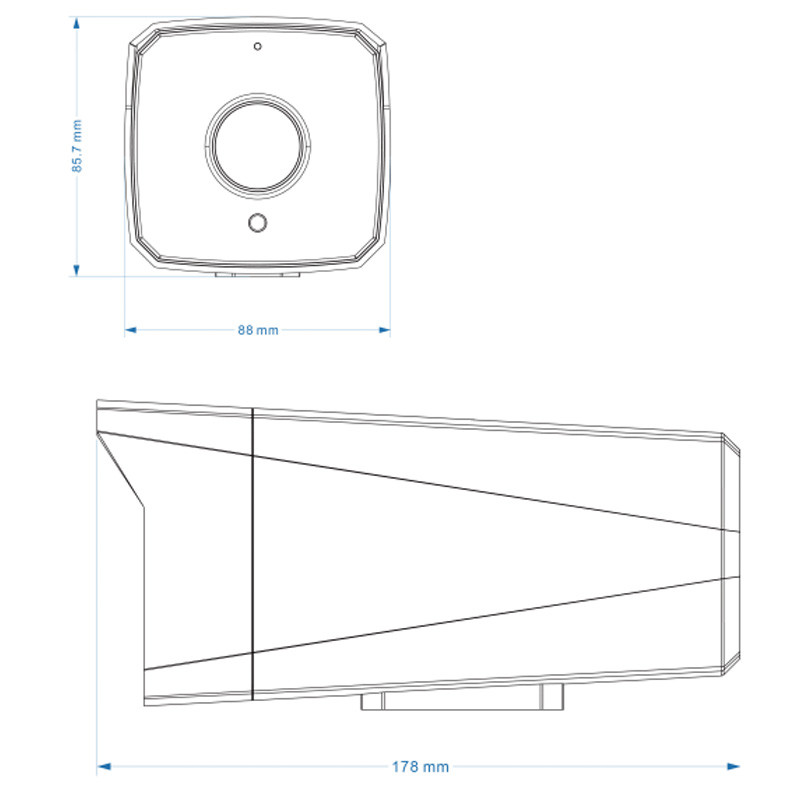

Dimension(mm)


JVS-N916-KDL-PE 3MP Full-Color Audio PoE  IP Camera.pdf
